Sec 2: 8-30 Disassembly/Reassembly Procedures: Radio Reassembly
8.9.1.8 Assemble Option Board Assembly (if so equipped)
1. Connect the Option Board Assembly to the VOCON Board Assembly. Ensure it is completely
connected as shown in Figure 8-45.

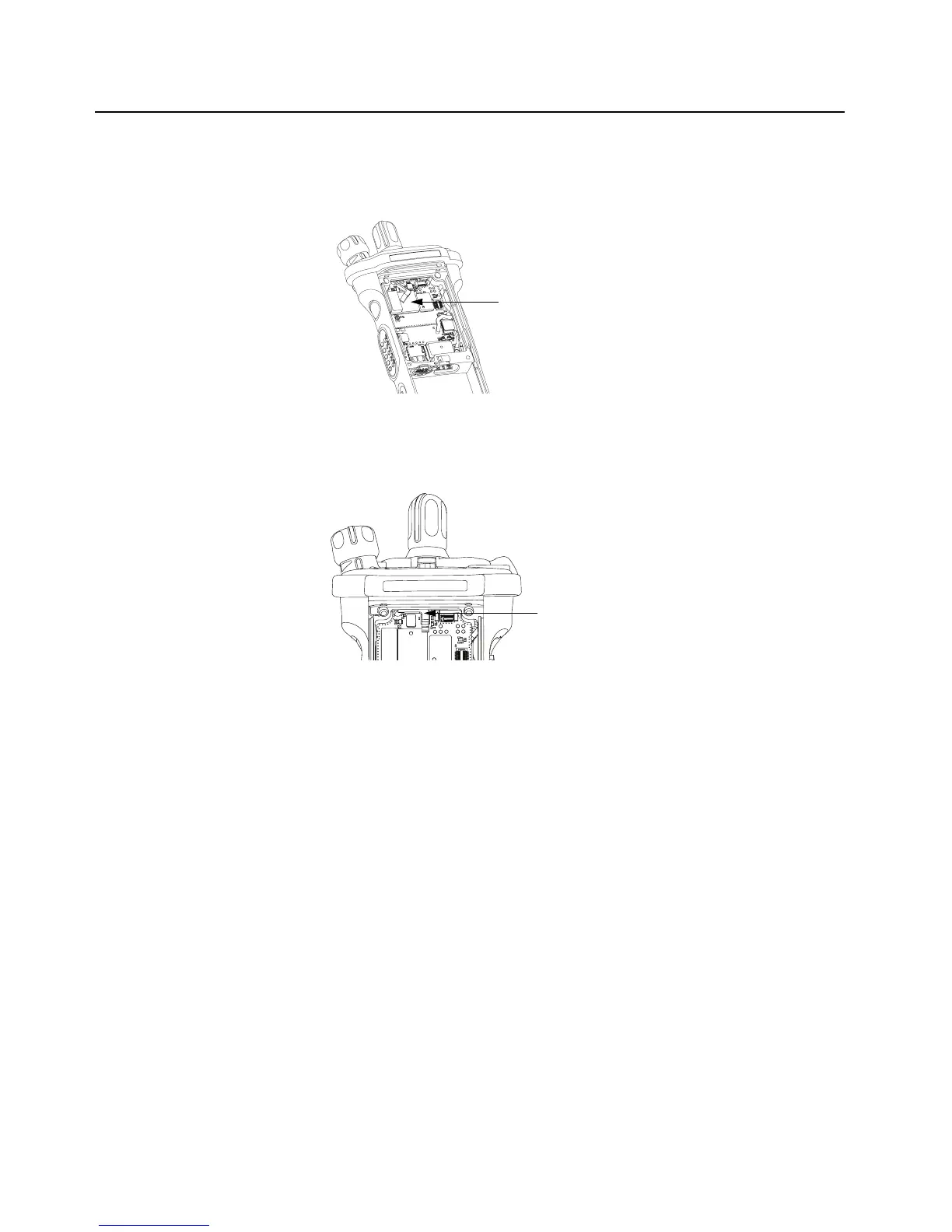

Figure 8-45. Assemble Option Board
2. Rotate the Option Board locking levers till they slilde under the chassis feature and lock the
option board in place. Levers should be fully rotated until they rest as shown in Figure 8-46.
Figure 8-46. Lock Levers
Option Board
Levers at Lock Position
