Motorola APX 7000 Basic Service Manual

Disassembly/Reassembly Procedures: Radio Reassembly Sec 2: 8-31
8.9.1.9 Assemble Speaker Module (B)
1. Apply a thin film of Lubricant (Part Number 1110027B23) to the upper two corners of the
Main Chassis (4) in the Speaker Module (18) opening as shown in Figure 8-47. Ensure no
lubricant contaminates the gold pads or the microphone membrane (19).

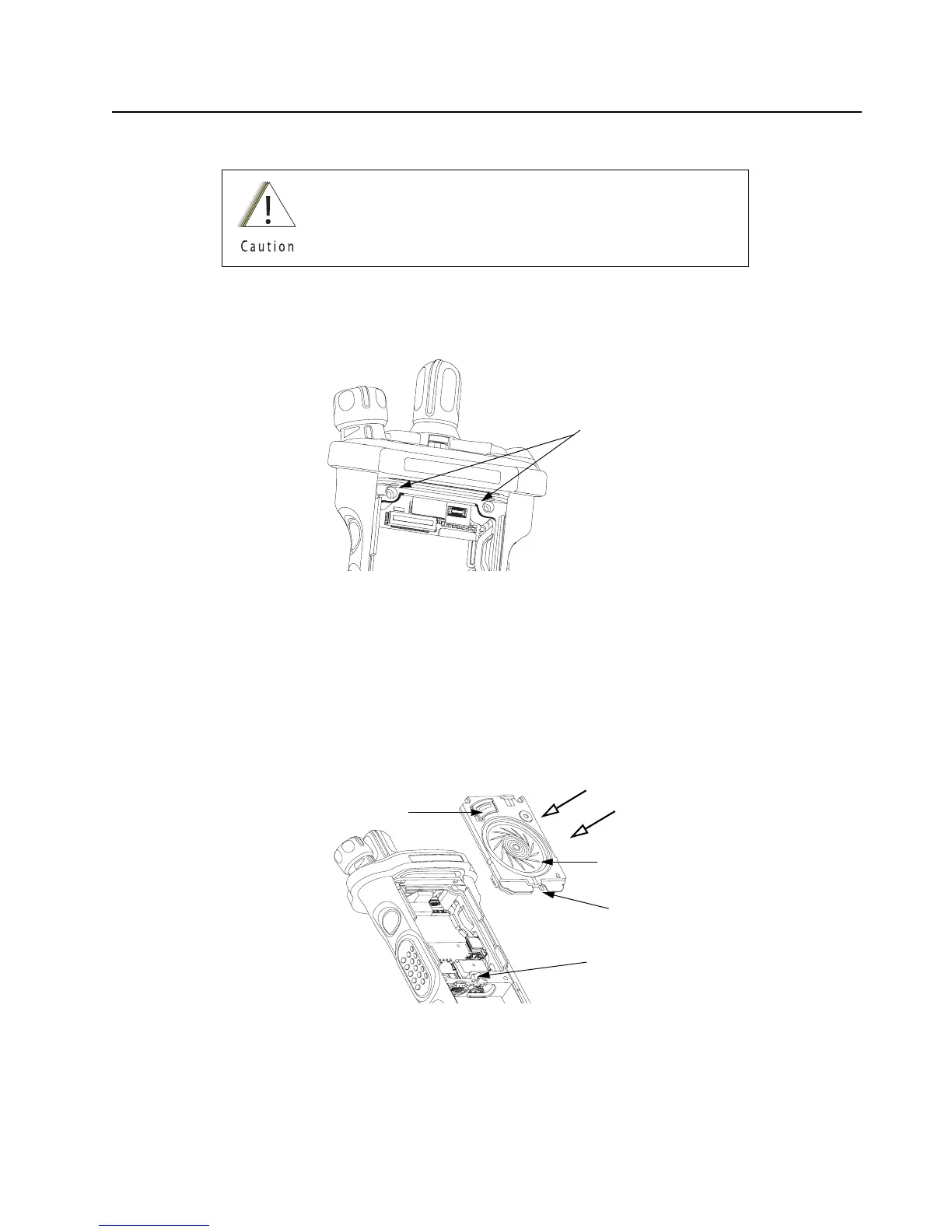

Figure 8-47. Lubricate Main Chassis
NOTE: Avoid any lubricant to come in contact with any internal components.
2. Ensure the Seal is free from any debris or foreign material.
3. Align the Speaker Module's Pin feature located on the bottom edge directly below the
speaker, into the hole on the chassis hook feature.
4. Swing the Speaker Module down and firmly press the top side into the radio as shown in
Figure 8-48.
Figure 8-48. Insert Speaker Module
5. While holding the Speaker Module down, place the two top screws (23) into the their
respective holes and torque the screws to 10 in-lbs with an IP8 Torx Bit in a torque driver.
See Figure 8-49.
Do not touch the speaker cone or the Port Seal (20). Take
extra precaution to make sure neither the speaker nor the
breather pad is damaged.
Apply Lubricant
Speaker Cone
Port Seal (20)
Pin Feature
Chassis Hook Feature

Motorola APX 7000 Specifications

General

Digital Technology	P25 Phase 1 and Phase 2
Emergency Button	Yes
Frequency Range	136-174 MHz (VHF), 380-470 MHz (UHF Range 1), 450-520 MHz (UHF Range 2), 764-870 MHz (700/800 MHz)
Display	Color LCD
Encryption	AES, DES
Water Resistance	IP67
GPS	Yes
Bluetooth	Yes
Operating Temperature	-30°C to +60°C
Weight	391 g (with standard battery)
