Moxa Technologies CN2600 Series User Manual

CN2600 Series Software Installation/Configuration
9-8

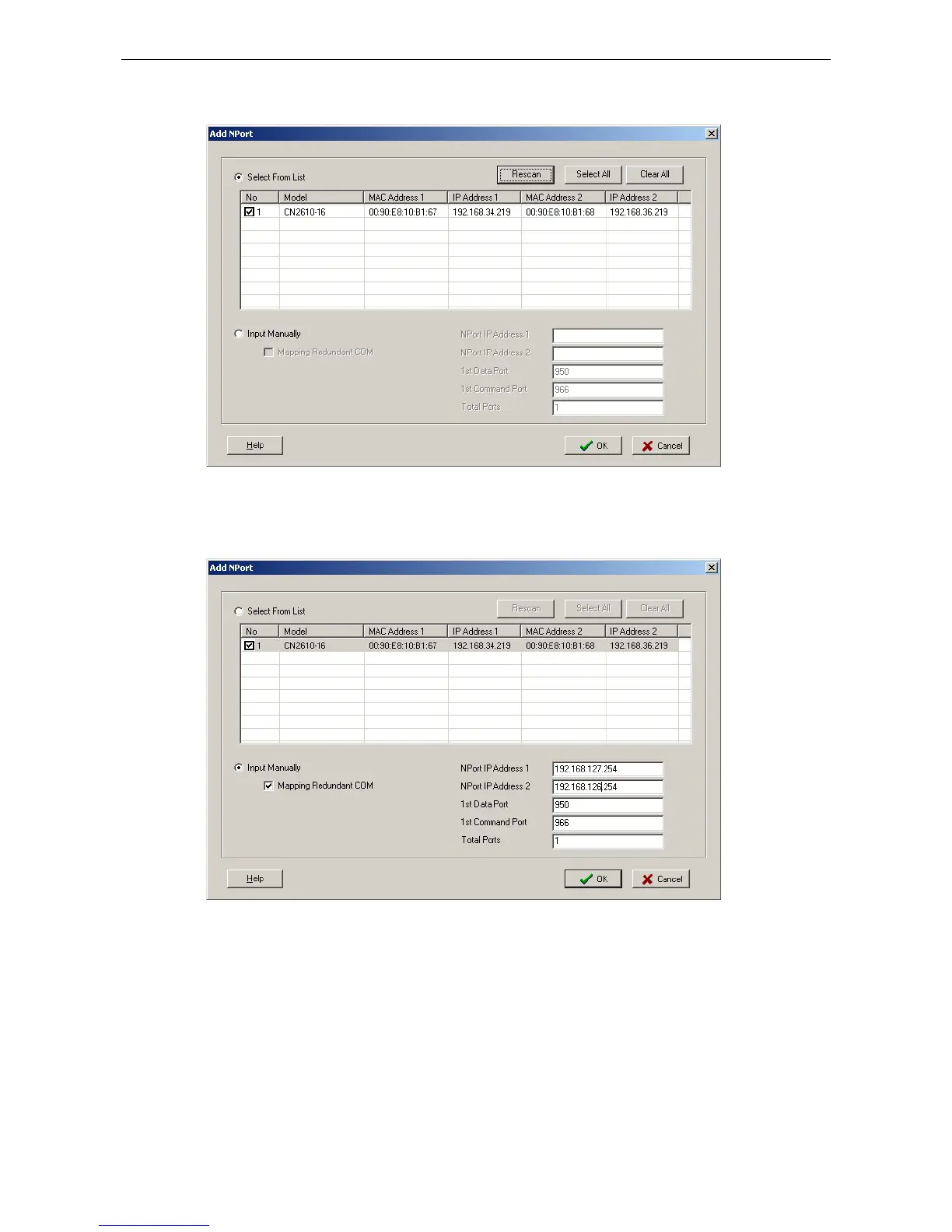

3. Click Rescan to search for CN2600 terminal servers. From the list that is generated, select the server that
COM ports will be mapped to, and then click OK.
Alternatively, you can select Input Manually and then manually enter the CN2600’s IP Address, 1st Data
Port, 1st Command Port, and Total Ports for the COM ports that will be mapped to. Click OK to proceed to
the next step. Note that the Add NPort page supports FQDN (Fully Qualified Domain Name), in which case the
IP address will be filled in automatically.
