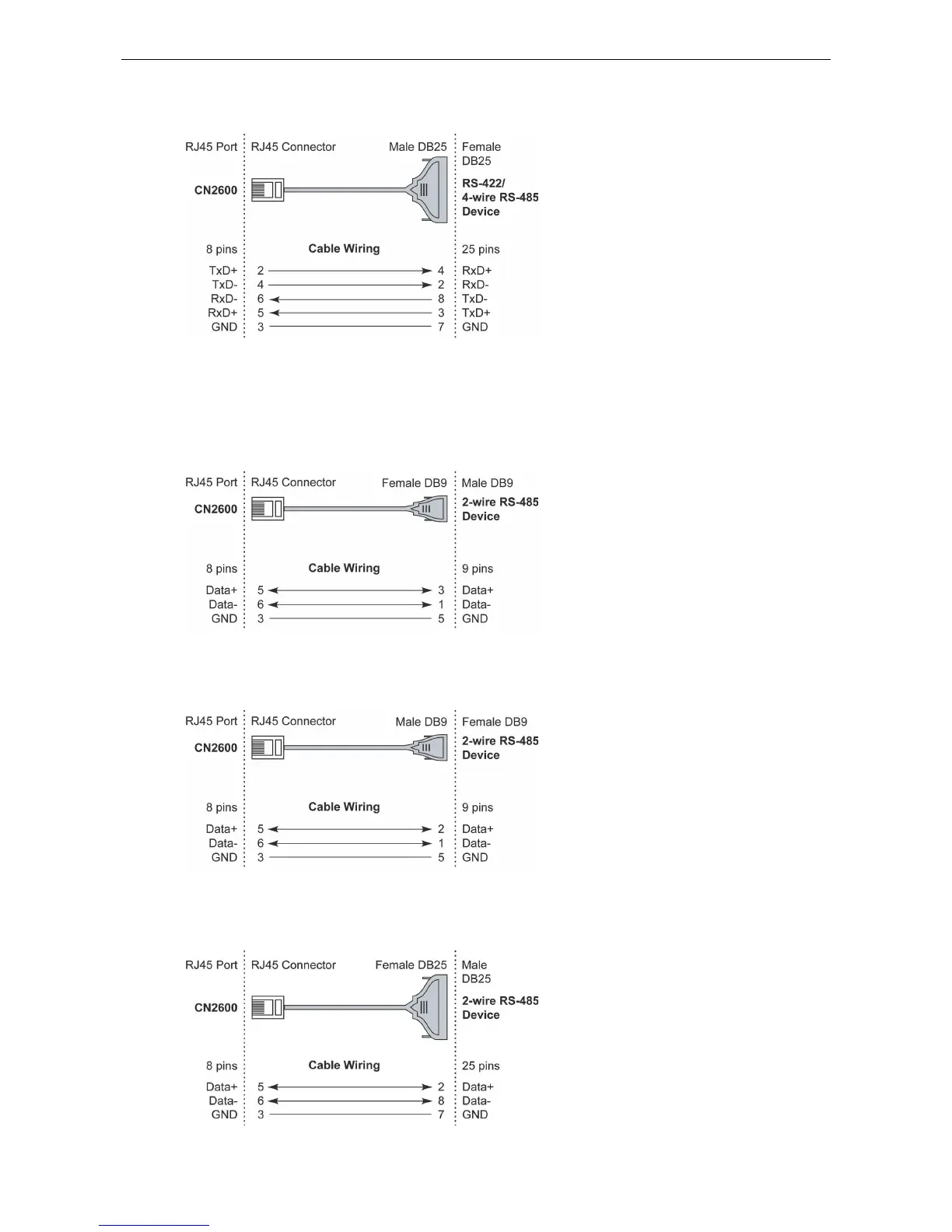

CN2600 Series Pinouts and Cable Wiring
A-7
RJ45 (8-pins) to Male DB25
Serial Cables (2-Wire RS-485)
RJ45 (8-pins) to Female DB9
RJ45 (8-pins) to Male DB9
RJ45 (8-pins) to Female DB25
