CN2600 Series Pinouts and Cable Wiring
A-3

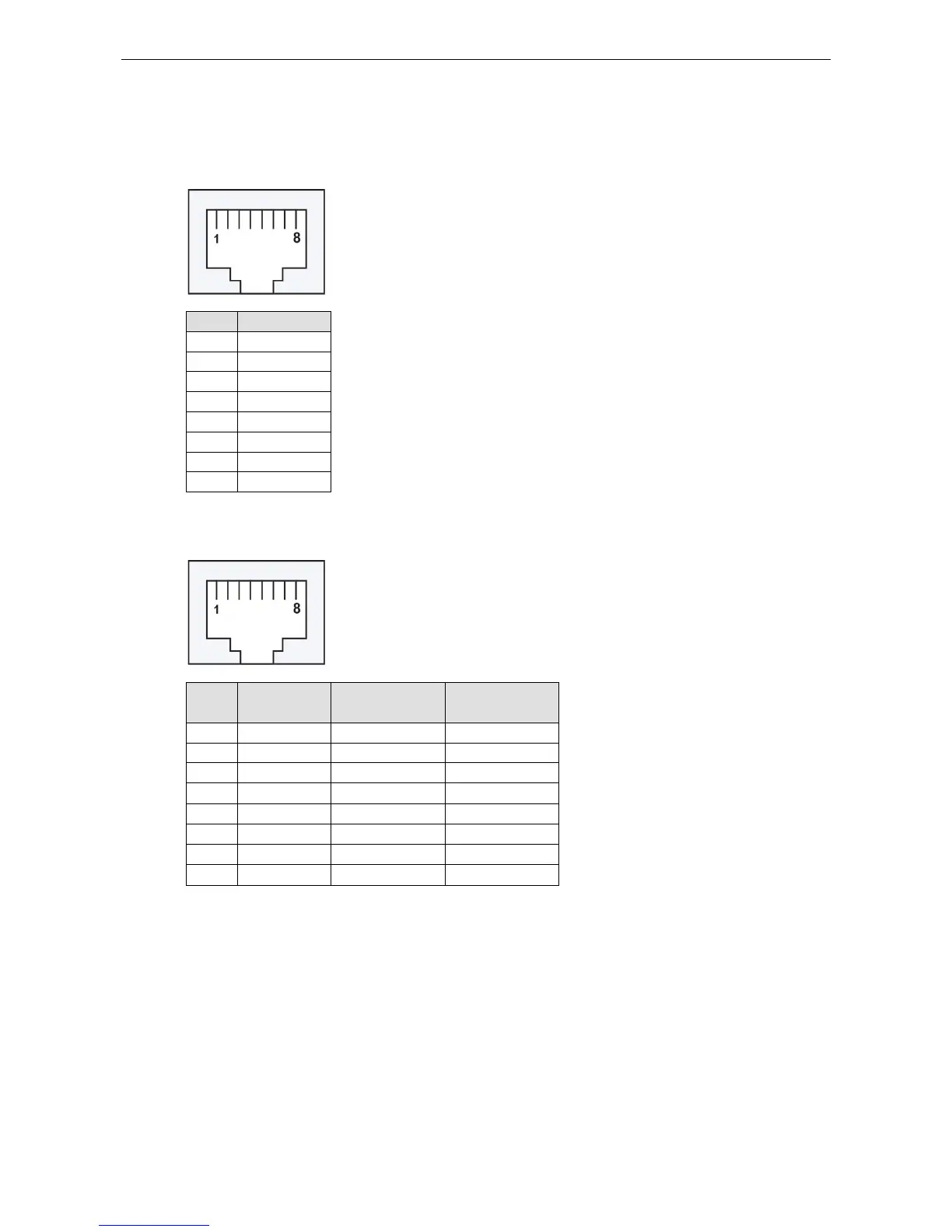

RS-232 (Male RJ45) Pinouts
PIN RS-232
1 DSR (in)
2 RTS (out)
3 GND
4 TxD (out)
5 RxD ( in)
6 DCD (in)
7 CTS (in)
8 DTR (out)
RS-232/422/485 (Male RJ45) Pinouts
PIN RS-232
RS-422/
RS-485 (4W)
RS-485 (2W)
1 DSR --- ---
2 RTS TxD+(B) ---
3 GND GND GND
4 TXD TxD-(A) ---
5
RXD
RxD+(B)
Data+(B)
6 DCD RxD-(A) Data-(A)
7 CTS --- ---
8 DTR --- ---
