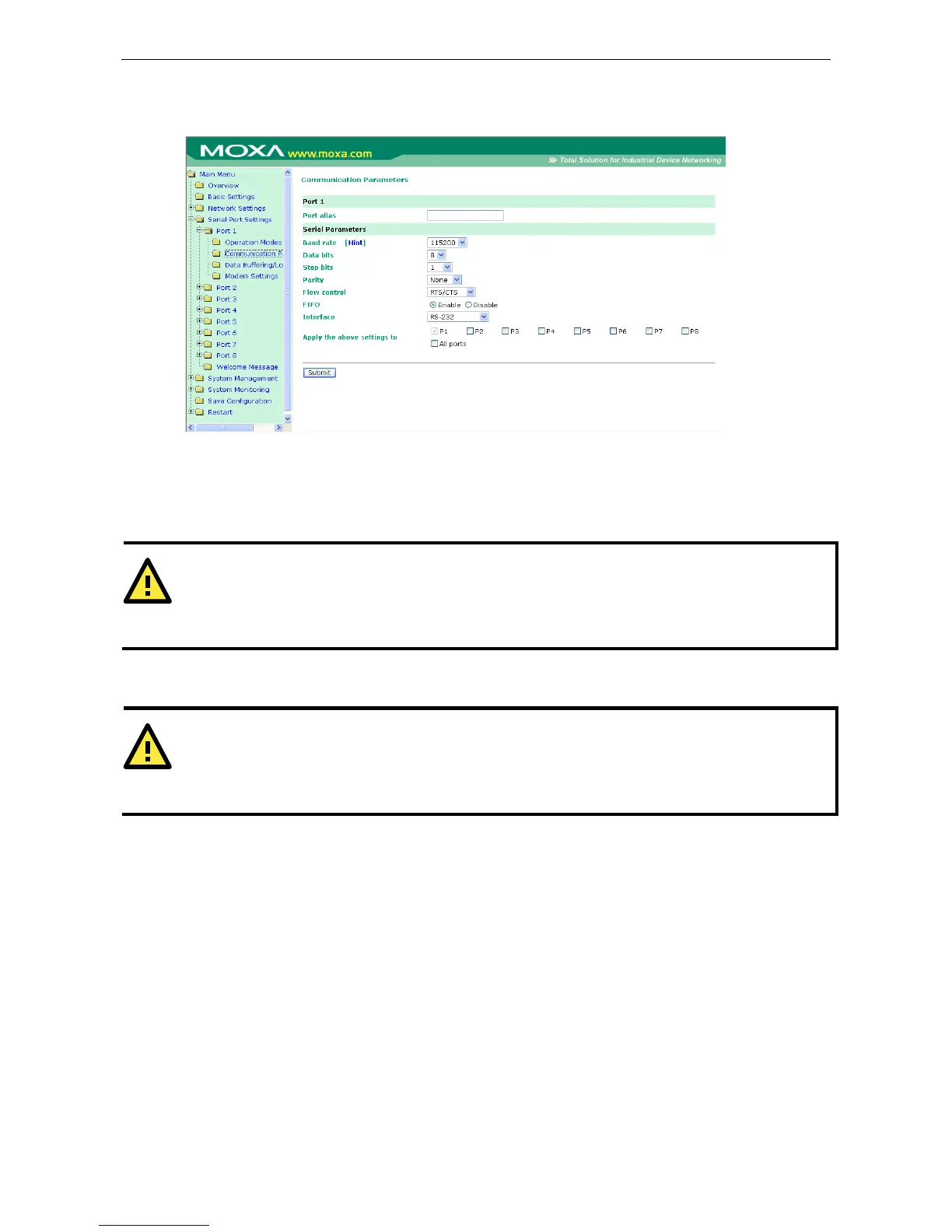

Port Communication Parameters
Port alias: This optional field allows you to assign an alias to a port for easier identification.
Serial Parameters
Baud rate (default=115200 bps): This field configures the port’s baudrate. Select one of the standard
baudrates from the dropdown box, or select Other and then type the desired baudrate in the input box.
option and enter the desired baudrate into the text box. The CN2600 will automatically calculate the closest
supported baudrate. The margin for error will be less tha
Data bits (default=8): This field configures the data bits parameter. Note: If data bits is set to 5 bits, stop bits
will automatically be set to 2 bits.
Stop bits (default=1): This field configures the stop bits parameter. Note: If data bits is set to 5 bits, stop bits
will automatically be set to 1.5 bits.
Parity (default=None): This field configures the parity parameter.
Flow control (default=RTS/CTS): This field configures the flow control type.
FIFO (default=Enable): This field enables or disables the 128-byte FIFO buffer. The CN2600 provides FIFO
buffers for each serial port, for both the Tx and Rx signals. Note, however, that you should disable the port’s
FIFO setting if the attached serial device does not have a FIFO buffer of its own. This is because a serial device
that does not have its own buffer may not be able to keep up with data sent from the CN2600’s FIFO buffer.
Interface (default=RS-232): You may configure the serial interface to RS-232, RS-422, RS-485 2-wire, or
RS-485 4-wire.
