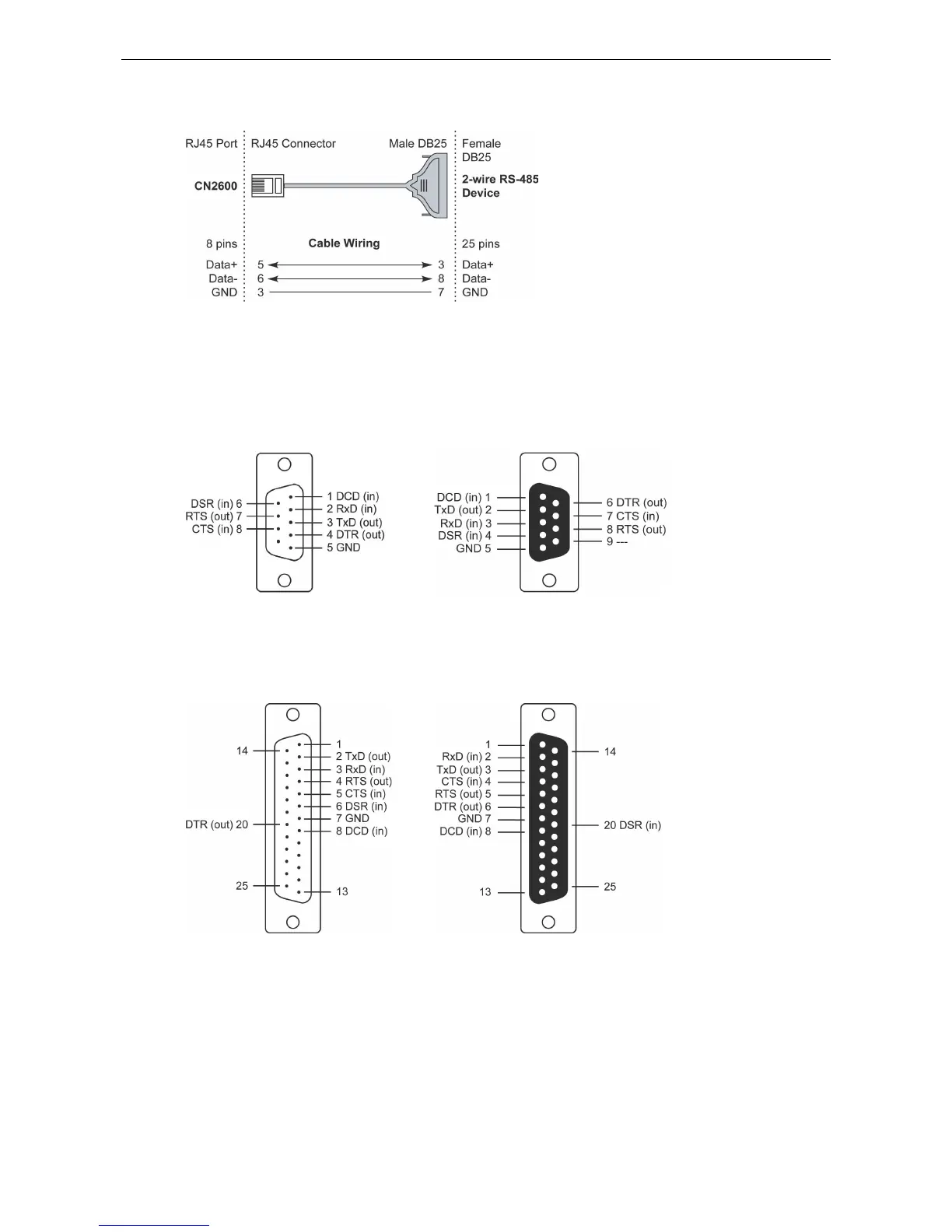

CN2600 Series Pinouts and Cable Wiring
A-8
RJ45 (8-pins) to Male DB25
Pin Assignments for DB9 and DB25 Connectors
Pin Assignments for DB9 Male and Female Connectors
DB9 Male Connector
DB9 Female Connector
Pin Assignments for DB25 Male and Female Connectors
DB25 Male Connector
DB25 Female Connector
