CN2600 Series Introduction
1-4
Power Requirements
Input Voltage:
AC Models: 100 to 240 VAC, 47 to 63 Hz, 280 mA
DC Models: 110 VDC (88 to 300 VDC)
Power Consumption:
CN2650 AC models: 235 mA @ 100 VAC, 145 mA @ 240 VAC
CN2650I HV models: 152 mA @ 88 VDC, 86 mA @ 300 VDC
Power Line Protection:
1 kV burst (EN 61000-4-4: EFT/B), 2 kV surge (EN 61000-4-5)
Standards and Certifications
EMI:
EN 55022 Class A, FCC part 15 Subpart B Class A
EMS:
EN 61000
-4-2 ESD: contact 4 kV; air 8 kV
EN 61000
-4-3 RS: 3 V/m (80 MHz to 1 GHz)
EN 61000
-4-4 EFT: Power 4 kV; Signal 2 kV
EN 61000
-4-5 Surge: AC 1 kV (AC models); DC 2 kV (HV models); Signal 1 kV
EN
61000-4-6 CS: 3 V
EN 61000
-4-8
EN 61000
-4-11: AC models only
Safety:
UL 60950-1, EN 60950-1
EMC:
55022/24
Freefall:
IEC-68-2-34, IEC-68-2-32
Vibration: IEC-68-2-6
Green Product:
RoHS, CRoHS, WEEE
Reliability
Alert Tools:
Built-in buzzer and RTC (real-time clock)
Automatic Reboot Trigger:
Built-in WDT (watchdog timer)
MTBF (mean time between failures):
CN2650I AC models: 99,320 hrs
CN2650I
-8-HV-T: 191,326 hrs
CN2650I
-16-HV-T: 116,924 hrs
Warranty
Warranty Period:
5 years
Details: See www.moxa.com/warranty

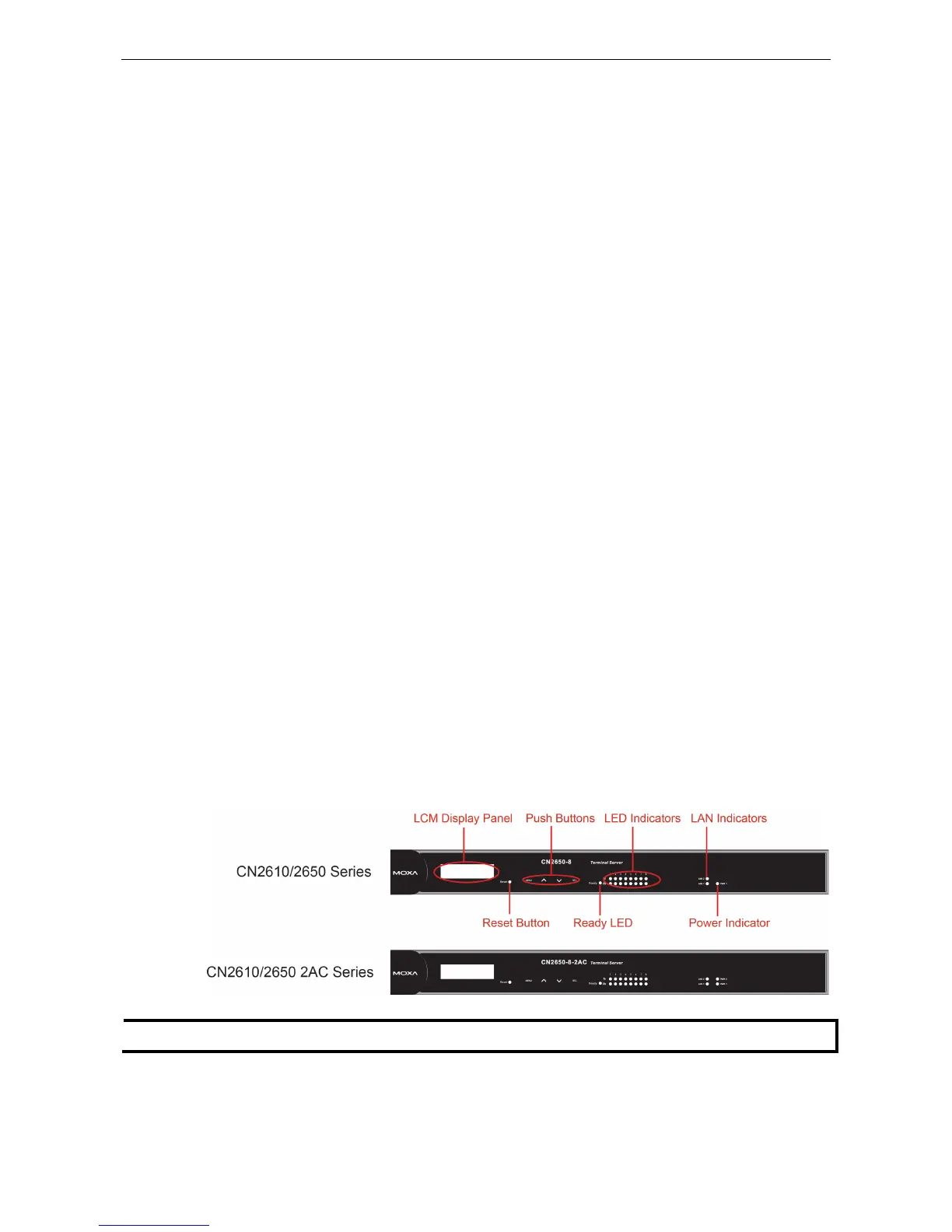

Front Panel
NOTE
Wide temperature models do not have
an LCM Display Panel.
