Port Setting Basics
Each serial port on the CN2600 can be configured independently. To configure the operation mode and settings
for a port, expand Serial Port Settings in the navigation panel, then expand the port that you would like to
configure. Individual port settings are grouped into four categories in the navigation panel: Operation Modes,
Communication Parameters, Data Buffering/Log, and Modem Settings.

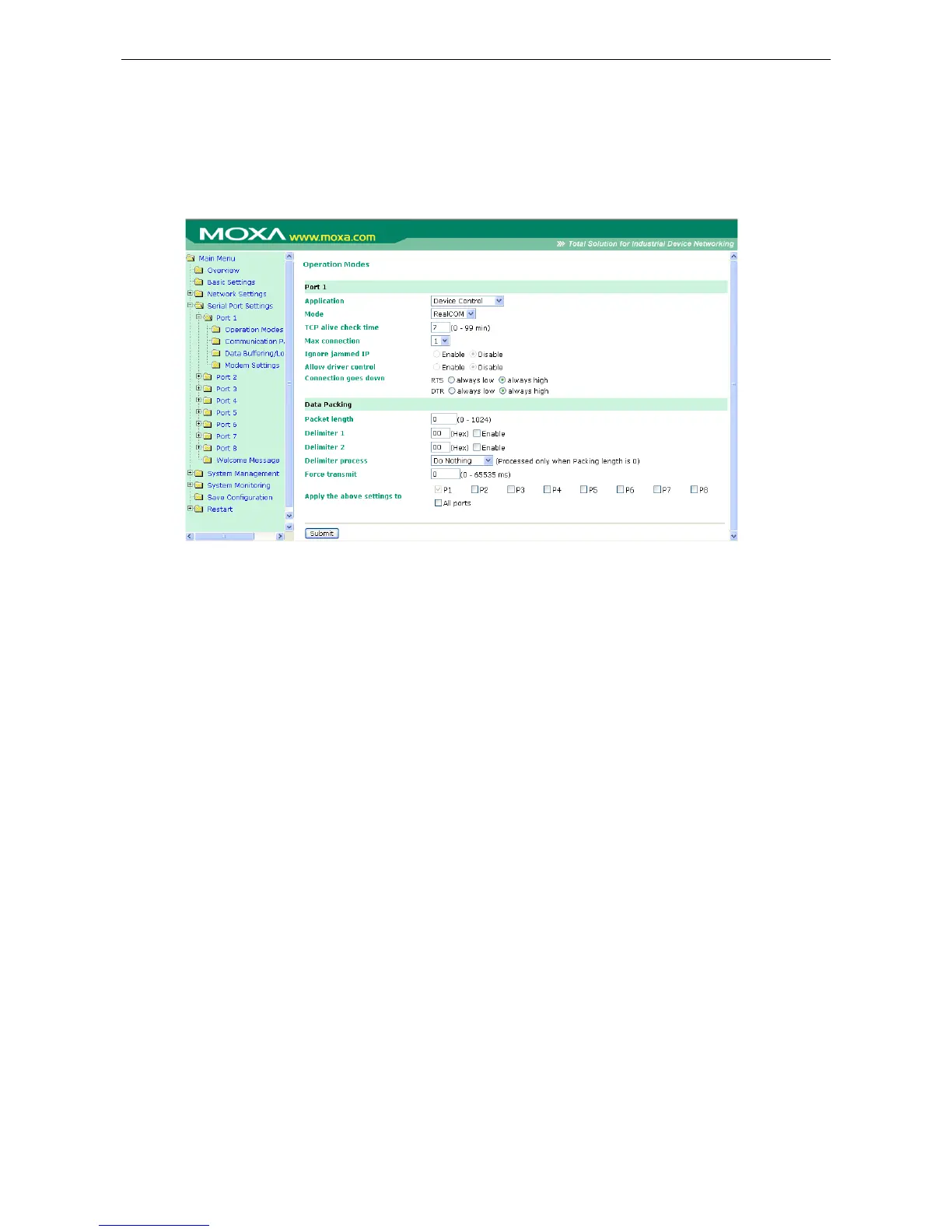

Select Operation Modes in the navigation panel to select and configure the mode for each serial port. For
CN2600 models with 2 or more serial ports, you may use the checkboxes at the bottom of the window to apply
the settings to one or more ports.
Application: Select an application for the serial port from among the choices. Your application will determine
the modes that are available.
Mode: Once you have chosen an application, select the mode. The available configuration settings will vary
depending on the mode that you have selected.
