CN2600 Series Hardware Installation
• You can use the type of signal transmitted through a wire to determine which wires should be kept separate.
The rule of thumb is that wiring that shares similar electrical characteristics can be bundled together.
• Keep input wiring and output wiring separate.
• Where necessary, it is strongly advised that you label wiring to all devices in the system.
Connecting the CN2600-8/16’s Power
Connect the CN2600’s 100-240 VAC power line to its AC connector. If the power is properly supplied, the
“Ready” LED will show a solid red color until the system is ready, at which time the color changes to green.
Isolation of multiple power sources & CL 3.4.11 Multiple power sources:
Where there is more than one connection supplying HAZARDOUS VOLTAGES or HAZARDOUS ENERGY LEVELS
to equipment, a prominent marking, located close to the entry point provided for a SERVICE PERSON to gain
access to the hazardous parts, shall be provided to indicate which disconnect device or devices isolate the
equipment completely and which disconnect devices can be used to isolate each section of the equipment.
be shipped with multiple power supplies that require more than one connector to AC
mains. The AC power cords are considered to be the mains disconnect device for the server; always disconnect
power supply cords before opening up or servicing the server.

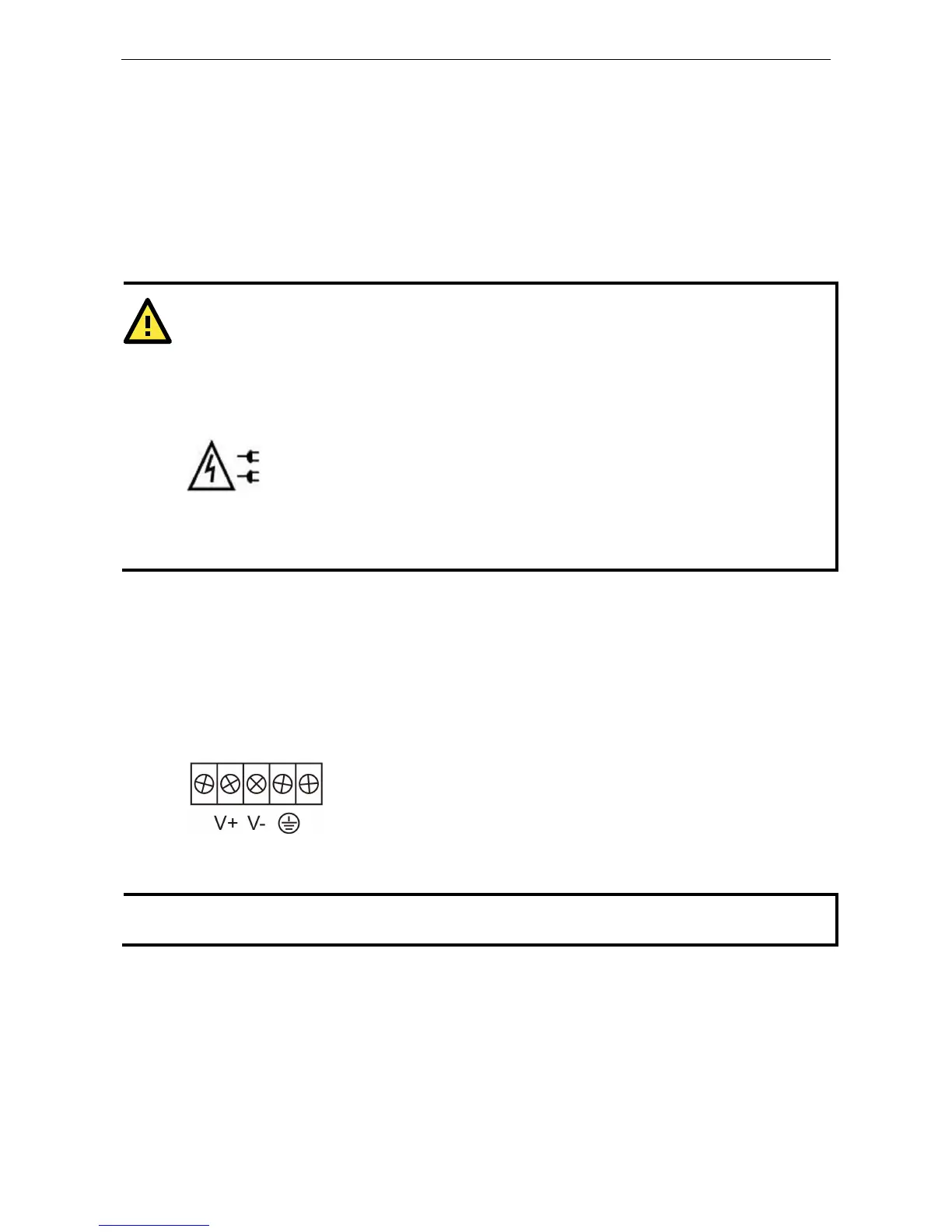

Connecting the CN2600-8/16-HV’s Power
To connect the CN2600-8/16-HV’s power cord with its terminal block, follow the steps given below:
1. Loosen the screws on the V+ and V- terminals of the CN2600-8/16-HV’s terminal block.
2. Connect the power cord’s VDC wire to the terminal block’s V+ terminal, and the power cord’s DC power
ground wire to the terminal block’s V- terminal, and then tighten the terminal block screws. (Note: the
CN2600-8/16-HV can still operate even if the DC and DC power ground are reversed.)
If the power is properly supplied, the “Ready” LED will show a solid red color until the system is ready, at which
time the “Ready” LED will change to a green color.
-cm of screw torque and 22-14 AWG of suitable electric wire to connect the
-8/16-HV’s power cord to its terminal block.
