Engine
SHOP MANUAL MT26-31 - 06.2005
Tier-3 710655-
Ch 1 page 83

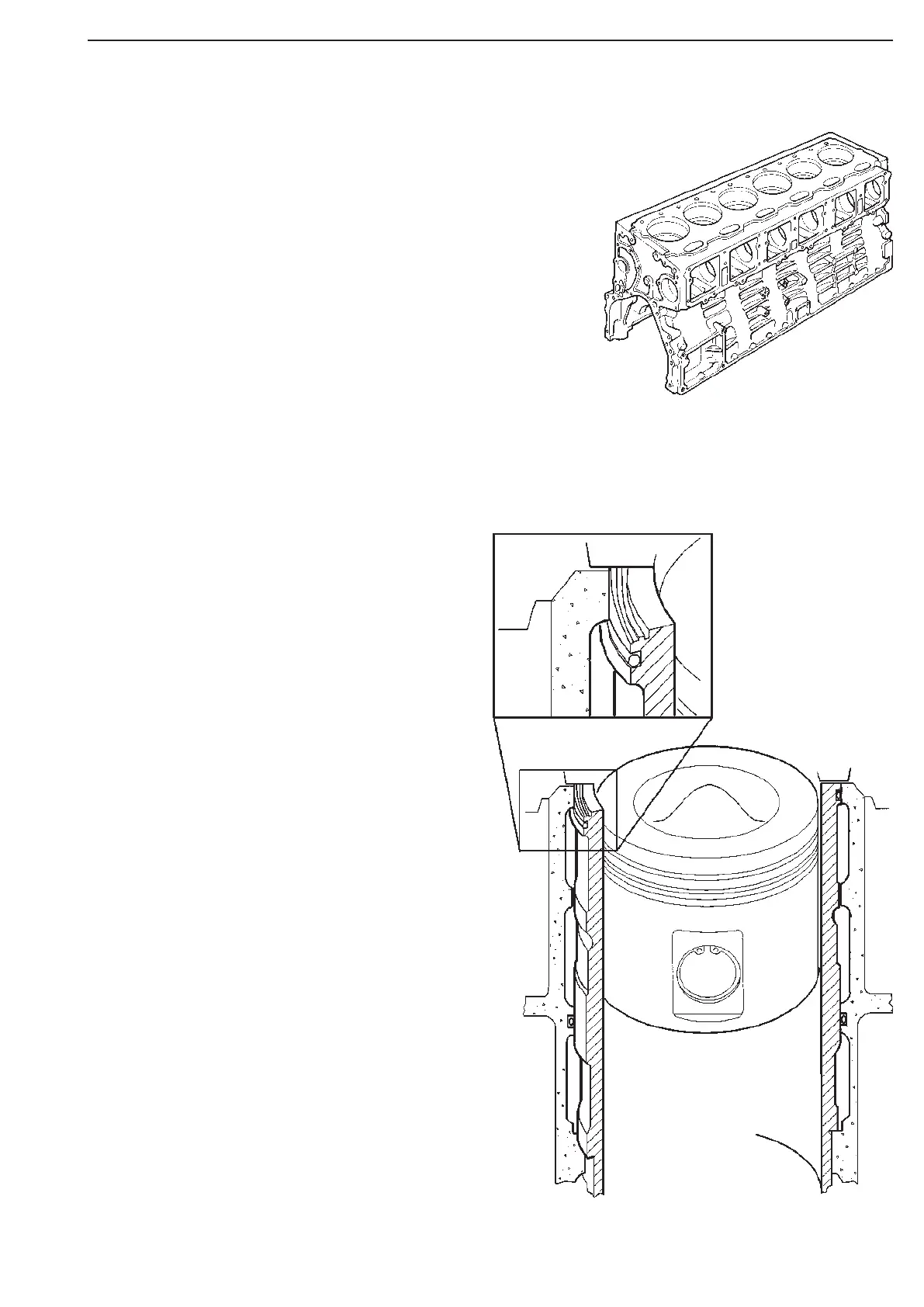

The cylinder block is a one-piece casting. It has 5 cylinder bores.
There is a separate cylinder head for each cylinder.
The seal between cylinder block and cylinder head consists of a
steel/elastomer gasket. Seals are bonded in place at the oil and
coolant passages.
Cylinderblock
Cylinder liner
The cylinder liners are of the “wet” type, i.e. they are
surrounded by coolant.
To ensure a good seal, the edge of the cylinder liner
protrudes slightly above the surface of the
cylinder block.
This ensures that the cylinder head gasket is pressed
against the cylinder head.
