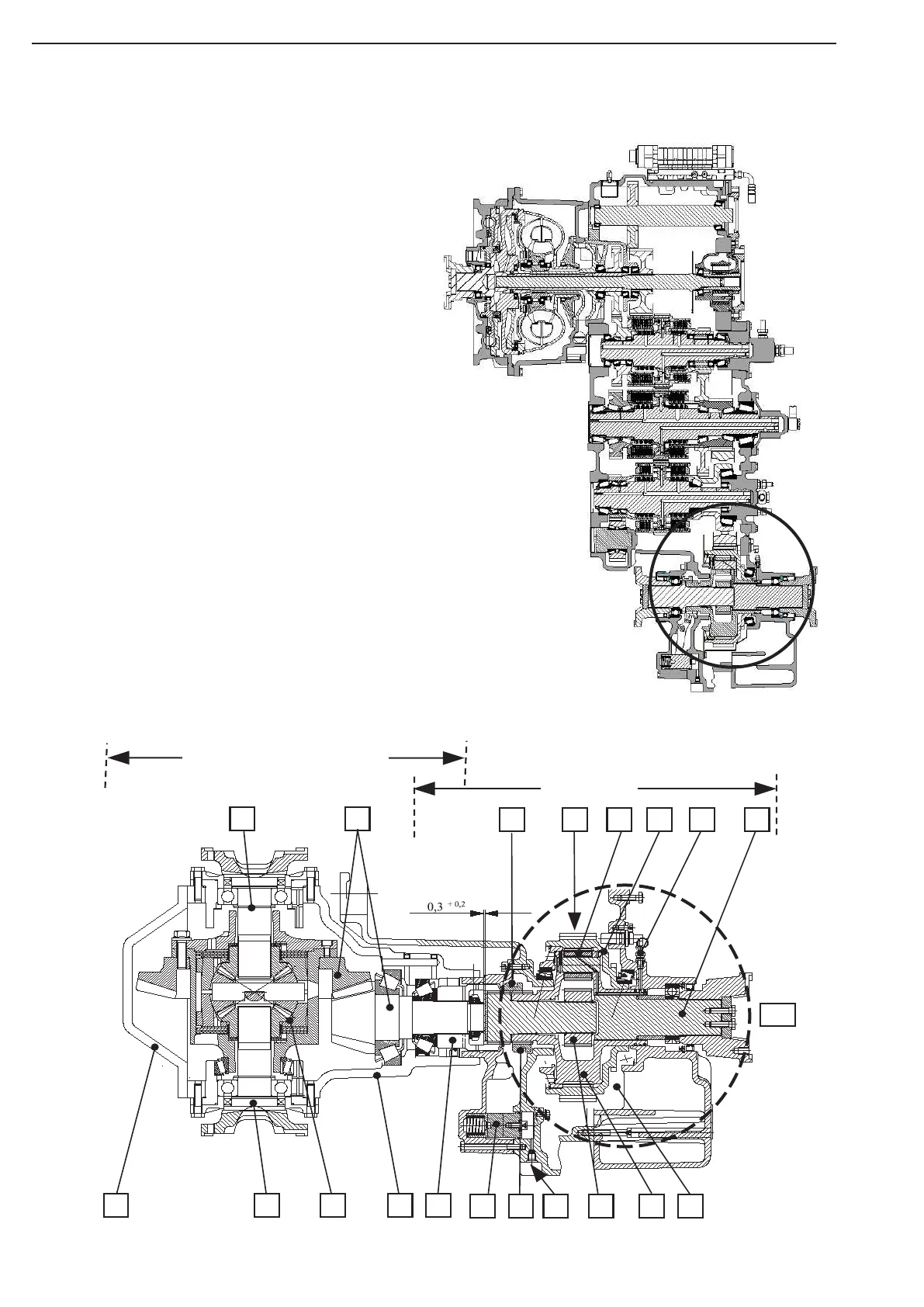

Interaxle differential with mounted Differential
carrier „LK“
HA= Output Rear axle
1 = K3-Spur gear – Input
2 = Planetary gear
(Ravignaux-System outer hole circle)
4 = Planet carrier
5 = Screening plate
6 = Sun gear
7 = Output shaft to the Front axle (converter-side)
8 = Internal gear
9 = Output shaft to the Rear axle (rear-side)
10 = Connection lubrication Interaxle differential
11 = Sliding sleeve Differential lock (engaged)
12 = Connection actuation Differential lock
(hydraulic or pneumatic)
13 = Sliding sleeve Differential lock (disengaged)
14 = Pneumatic or hydraulic engagement and
disengagement of the Differential lock
15 = Bevel gear set
16 = Output front axle - RH
17 = Cover with oil fillter- and oil drain plug
18 = Ouput front axle - LH
19 = Limited – slip differential
20 = Differential housing
21 = Adapter Transmission 6 WG-310 / Axle insert „LK“
H
A
11
1
8
10
9
2
5
4
6
12
13
14
15
16
19
18
17
20
6 WG-310
AXL E INSERT „LK“
21
