Drive pinion
If crown wheel or drive pinion are damaged, both parts (bevel gear set) must be renewed
together !
Pay attention to equal mating numbers !

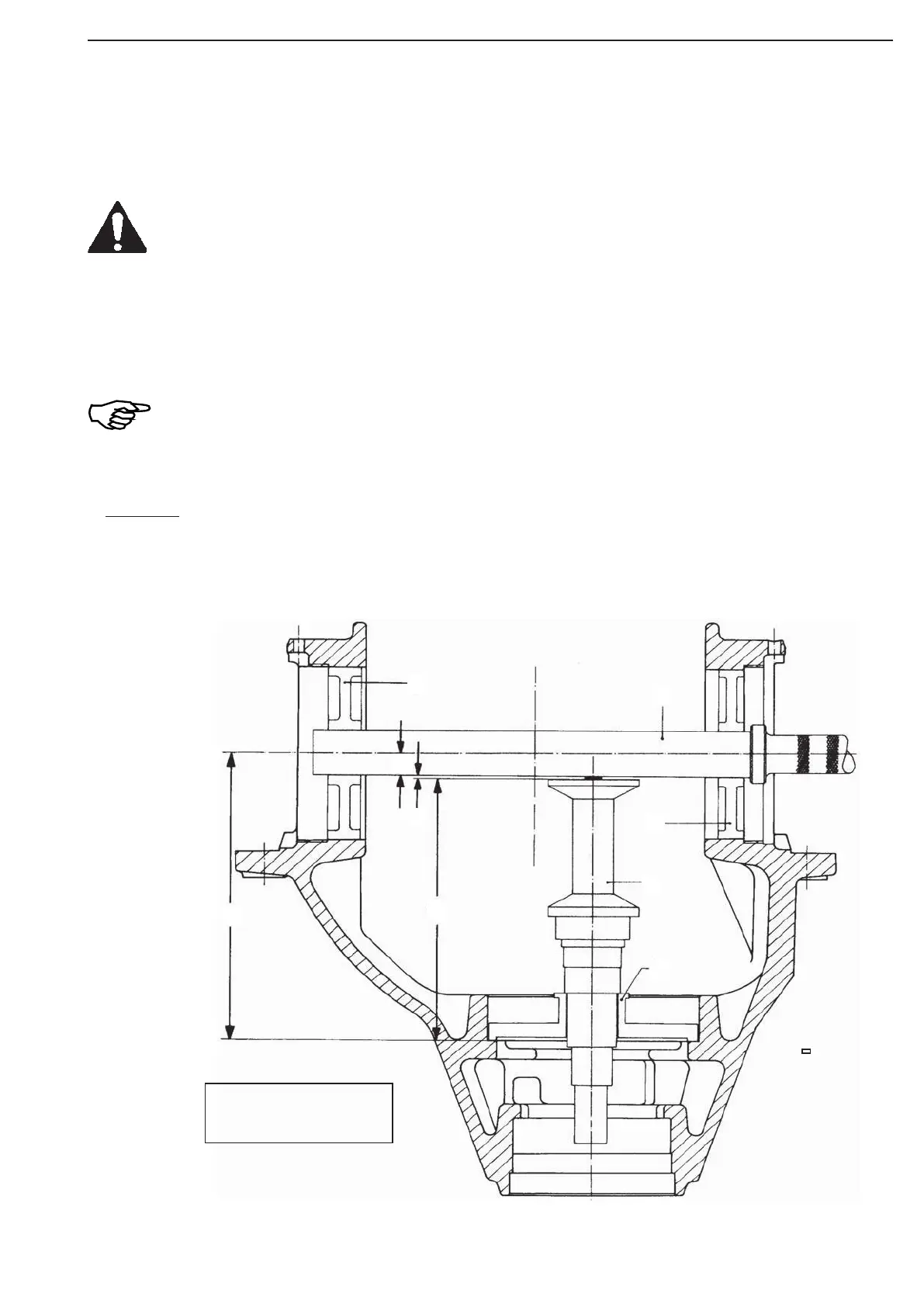

Adjust Contact pattern – Bevel gear set (Draft to Figure 581)
Carry out the following measuring operations with utmost accuracy !
Inaccurate measurements give a faulty contact pattern !
Ref. Draft: 1 = Plug gauge (S) 505156
2 = Stop disk (S) 505157
3 = Fitting piece (S) 504727
4 = Measuring shaft (S) 505158
