Moxy MT 26 - Manual Transmission Assembly

SHOP MANUAL MT26/31 - 08.2006 SHOP MANUAL MT26/31 - 08.2006
SHOP MANUAL MT26/31 - 08.2006 SHOP MANUAL MT26/31 - 08.2006
TRANSMISSION
Ch 2 page 188 Ch 2 page 189
TRANSMISSION
TRANSMISSION
Ch 2 page 188 Ch 2 page 189
TRANSMISSION

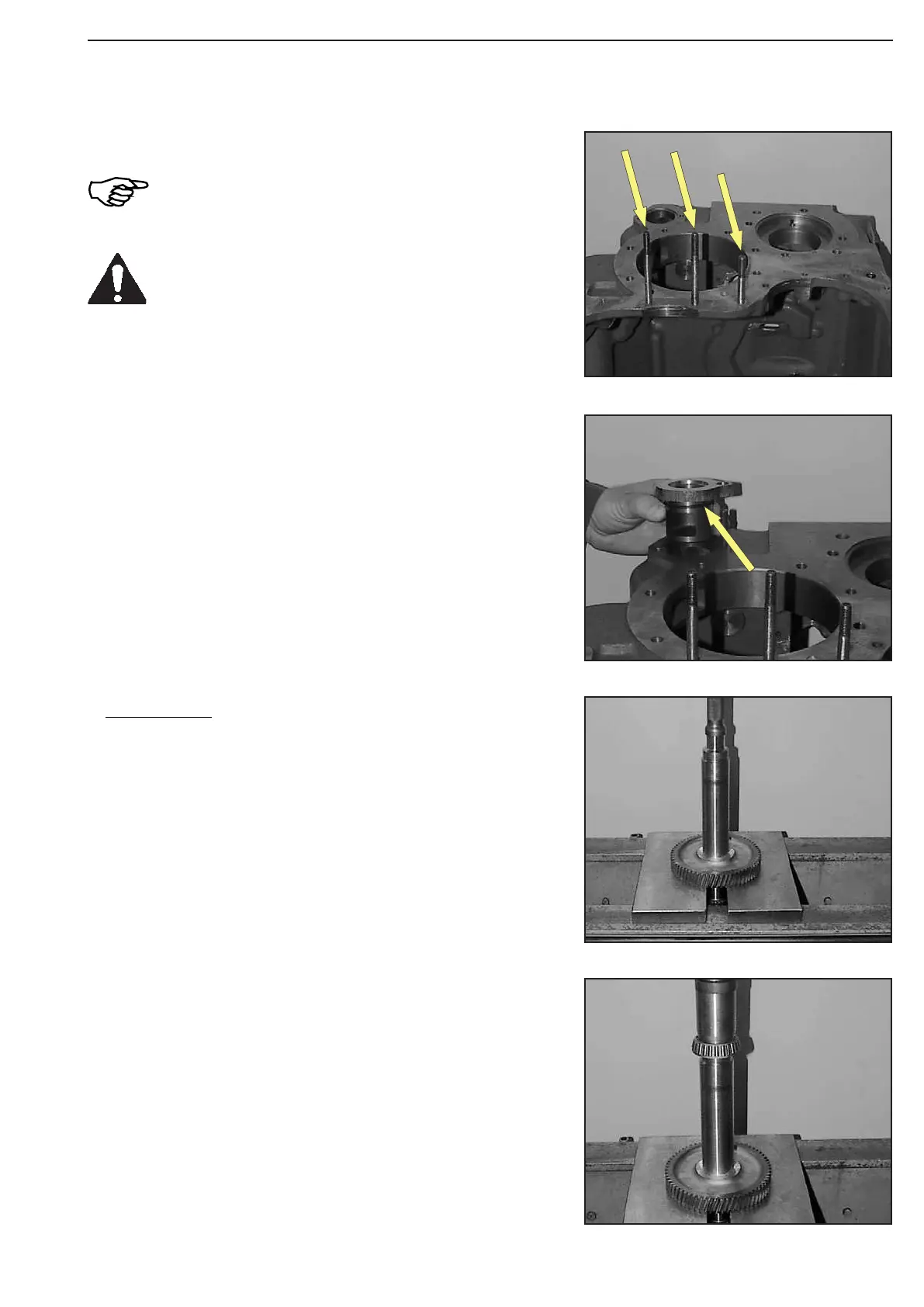

Figure 230
Figure 233
Figure 232
Figure 231
Mount studs (arrows).
Wet thread with Loctite (type-no. 243)!
Depending on the transmission version,
differences concerning number and length of the
studs are possible.
See in this connection the corresponding Spare
Parts List.
Press bearing inner race against shoulder.
Press opposite bearing inner race against shoulder.
Power take-off
Supercool shaft (about – 80° C), heat up gear
(abt. + 120° C) and line it up, or press it against shoulder.
Line up O-ring (arrow).
Insert bush into the housing bore until contact is obtained and
fasten it.
Manual transmission assembly
