TRANSMISSION
Ch 2 page 48

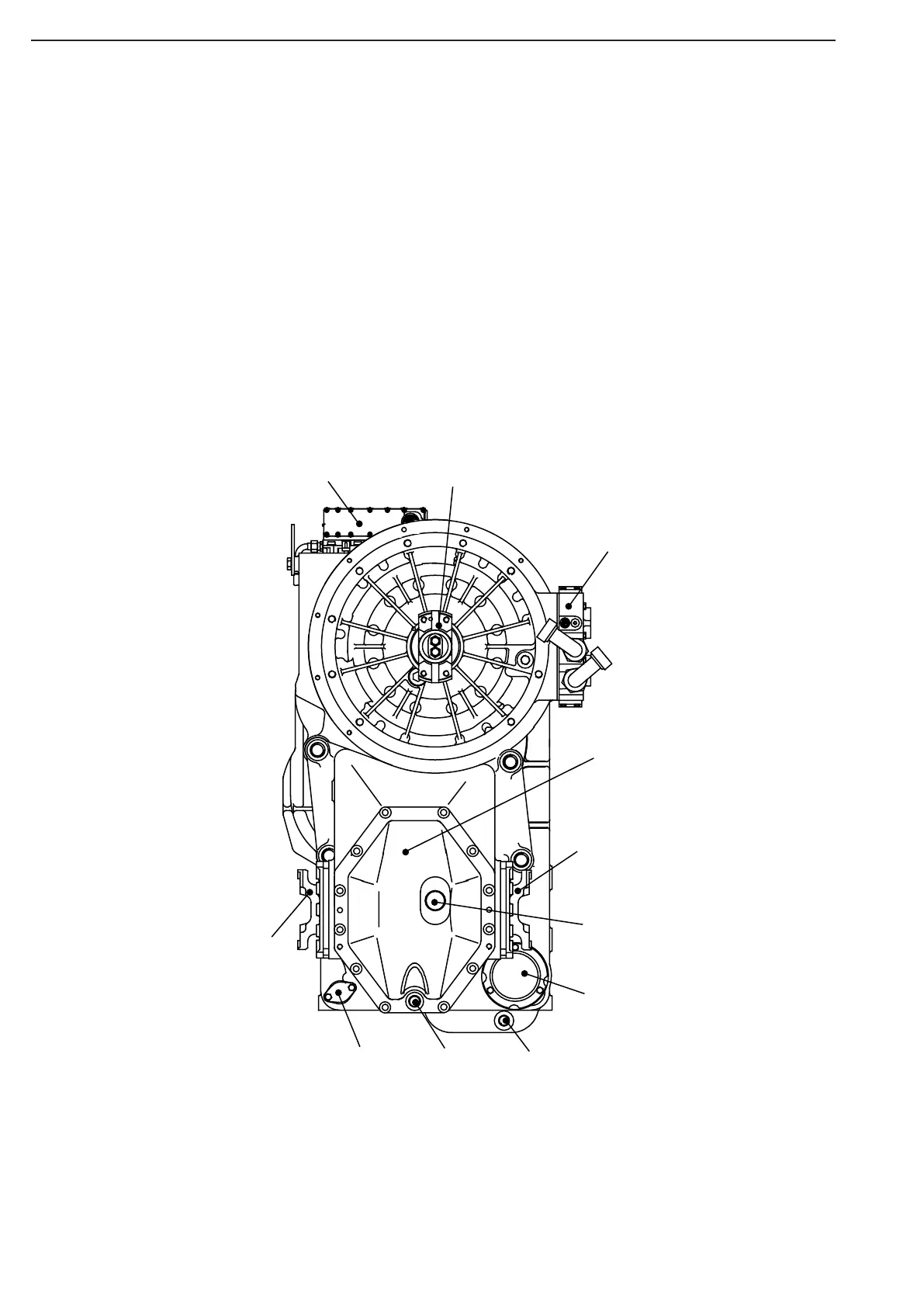

1 = Electro hydraulic shift control
2 = Input flange-Input trough prop shaft
3 = Retarder valve
4 = Axle insert “LK”
5 = Output flange- Front axle LH
6 = Oil filler hole Axle insert”LK” M42 x 1,5
7 = Coarse filter
8 = Oil drain plug Transmission with magnetic insert M38 x 1,5
9 = Oil drain plug Axle insert “LK” with magnetic insert M24x 1,5
10 = Attachment possibility for oil filler tube with oil dipstick
11 = Output flange - front axle RH
Installation view
Front view
