Figure 421
Figure 424
Figure 423
Figure 422

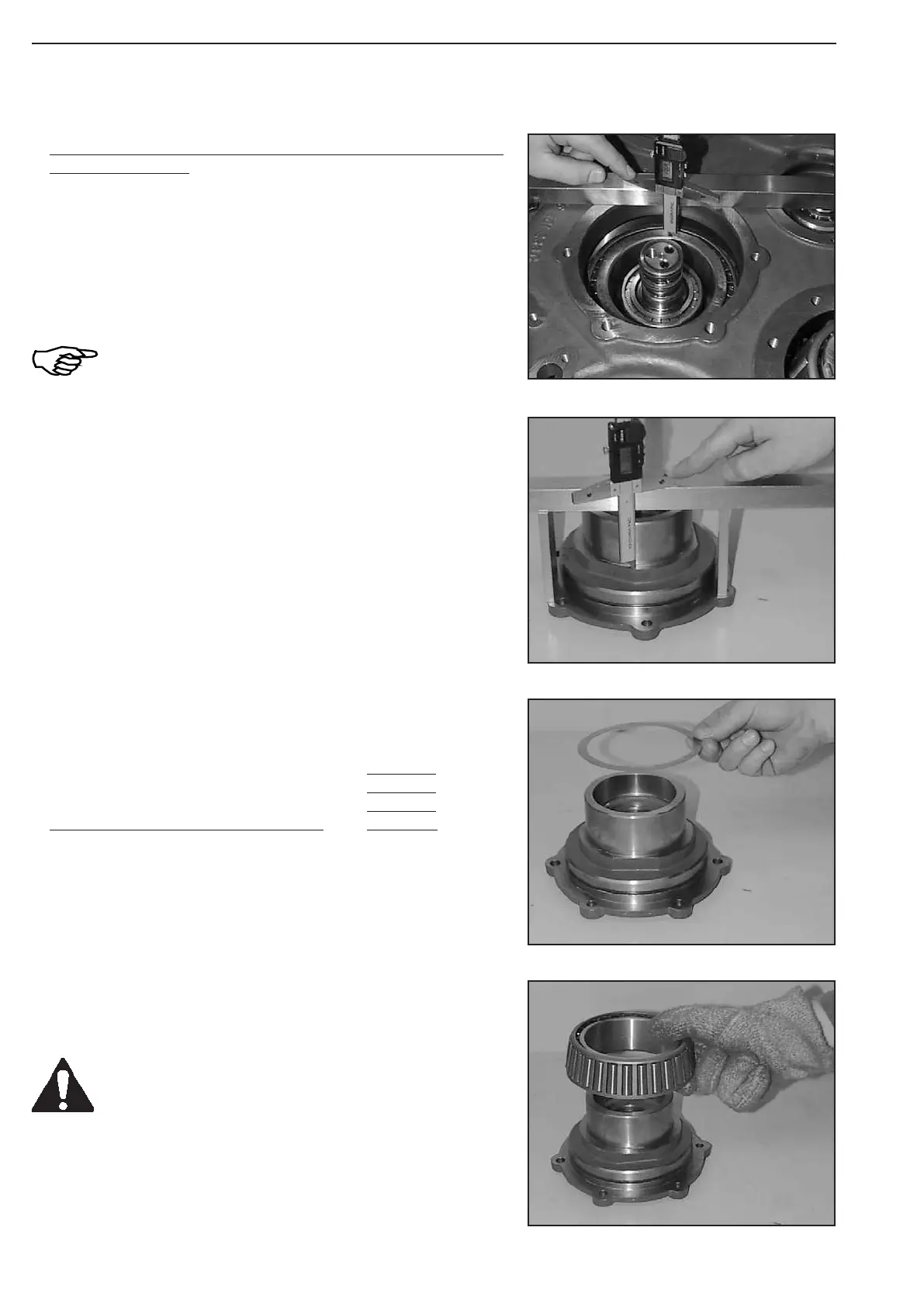

Adjust bearing pre-load of the clutch -K3/K4= 0,00 ... 0,05 mm
(Figure 420 ... 422):
Insert bearing inner race into the outer race.
Housing dimensions:
Uniformly press on bearing inner race and determine measure I
from the mounting face to bearing inner race.
Measure I e.g. .......................................... 43,85 mm
Take several measuring points and determine
average value!
Heat up bearing inner race and bring it into contact.
Use protective gloves!
CALCULATION EXAMPLE “ F “:
Measure I e.g. ........................................ 43,85 mm
Measure II e.g. .....................................
− 42,15 mm
Difference ............................................. = 1,67 mm
Bearing pre-load e.g.............................. + 0,03 mm
Gives shim(s) s = 1,70 mm
Line up the shim.
Cover dimension:
Determine measure II, from the mounting face to the contact/bear-
ing inner race.
Measure II e.g. ........................................... 42,15 mm
(S) Straightedge 504170
(S) Digital depth gauge 504175
(S) Gauge blocks 504174
Adjust bearing pre-load of the clutches
