Figure 417
Figure 420
Figure 419
Figure 418

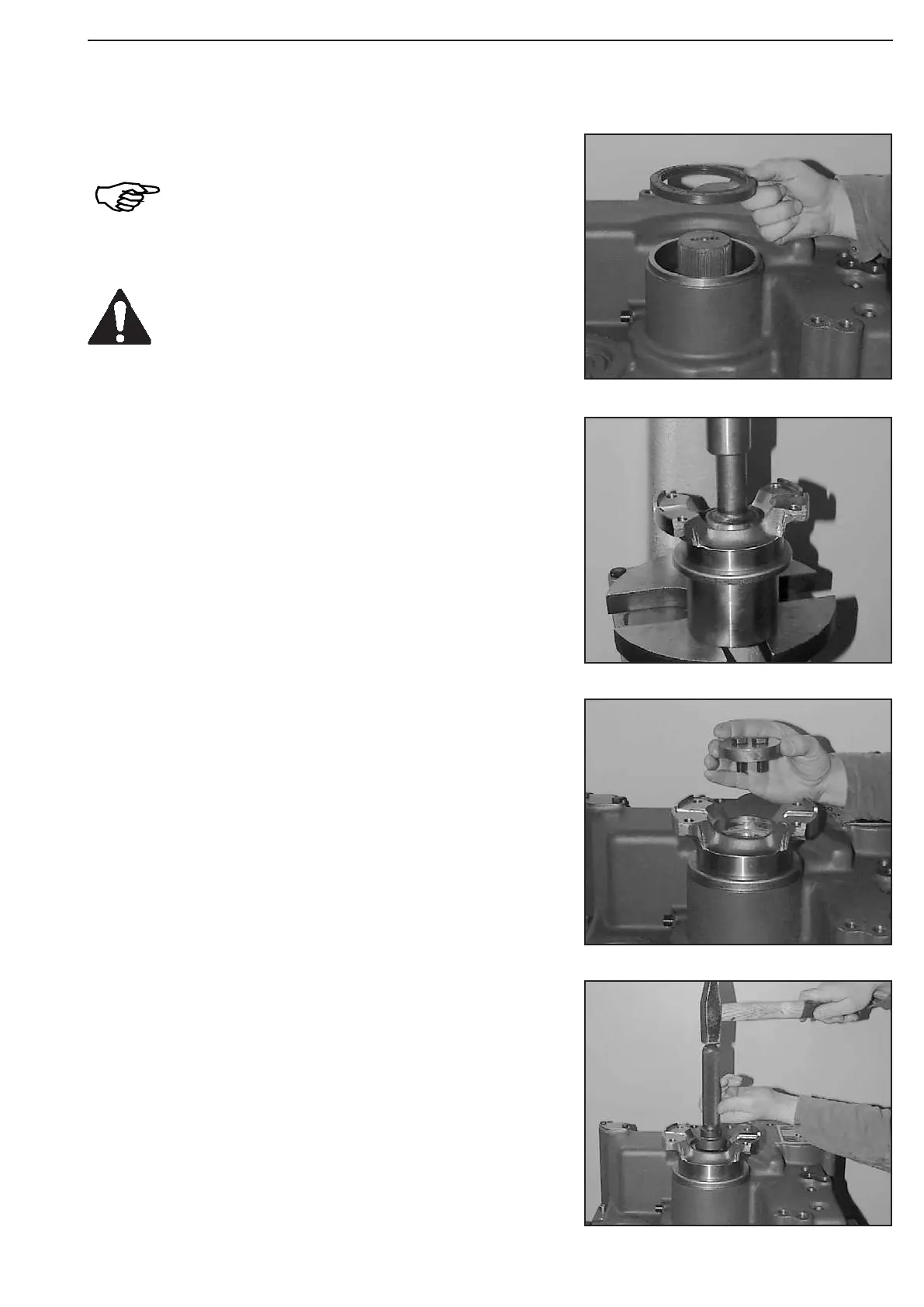

Install shaft seal with the sealing lip facing the oil chamber.
When using the specified driver (S), the exact
installation position is obtained!
Grease sealing lip!
(S) Driver 504164
Depending on the version, different shaft sealing
rings can be necessary!
Outer diameter rubber-coated – wet with spirit!
Outer diameter metallic – wet with sealing
compound (Loctite, type-no. 574)!
Fix hex. head screws by means of lock plate.
(S) Driver 504167
(S) Handle 504195
Line up output flange.
Wet contact face of the shim with sealing compound
(Loctite, type-no. 574) and fasten output flange with hex. head
screws..
Torque limit (M10/8.8) ............................= 46 Nm
Press on screening plate until contact is obtained.
(S) Pressure piece 504223
