Moxy MT 26 - Mount Differential Carrier on the Transmission

SHOP MANUAL MT26/31 - 08.2006 SHOP MANUAL MT26/31 - 08.2006
SHOP MANUAL MT26/31 - 08.2006 SHOP MANUAL MT26/31 - 08.2006
TRANSMISSION
Ch 2 page 306 Ch 2 page 307
TRANSMISSION
TRANSMISSION
Ch 2 page 306 Ch 2 page 307
TRANSMISSION

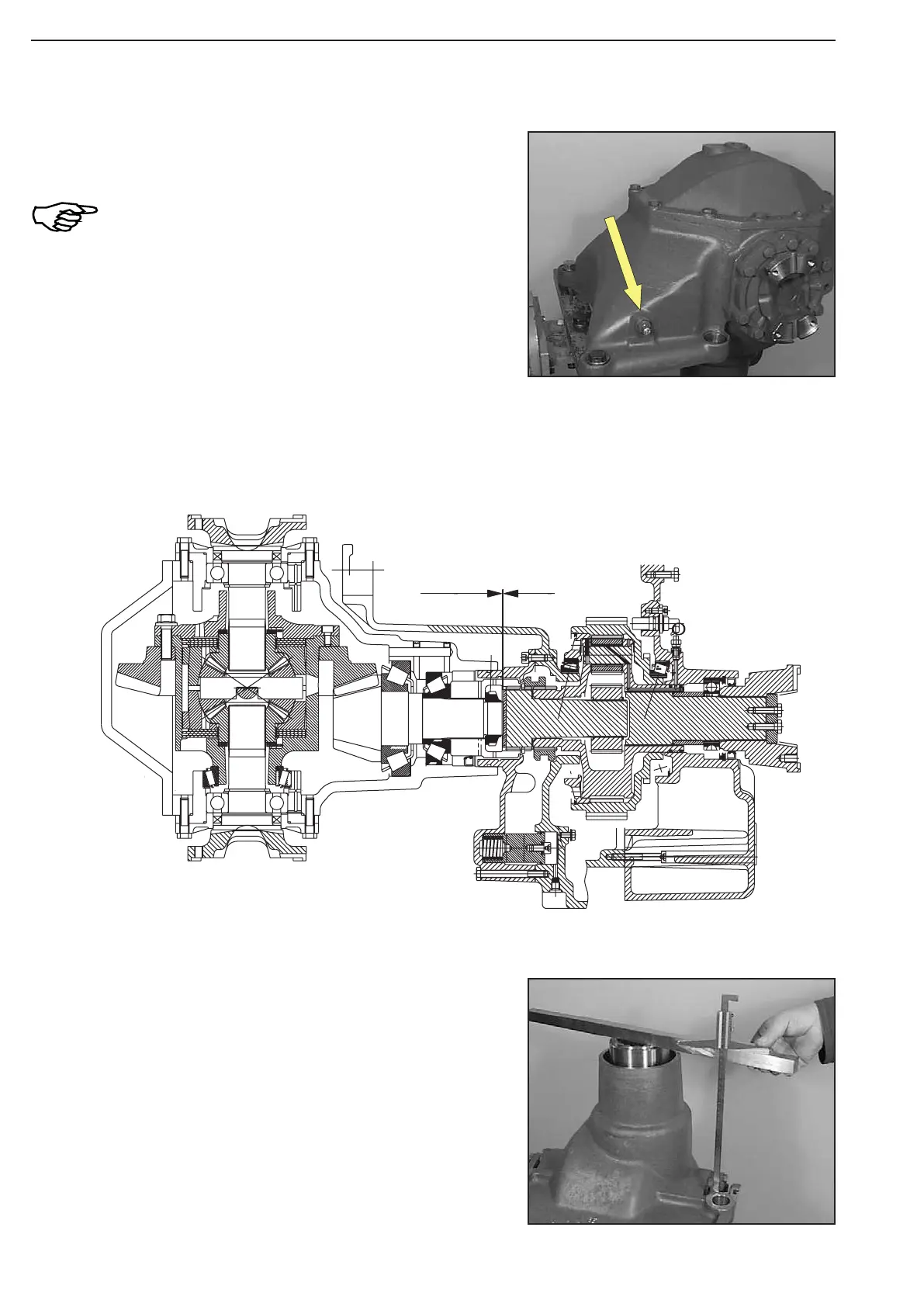

Figure 628
Figure 630
Figure 629
Install connecting pipe and breather, see Arrow !
Install new sealing ring (Cu) !
Adjust Axial play – Output shaft 0,3
+ 0,2
mm (Figure 629 .... 633):
Measure Dimension I from the end face – clutch sleeve to the
mounting face.
Dimension I e.g. ................................... 291,90 mm
(S) Straightedge 504170
(S) Depth gauge 504718
Mount Differential carrier on the Transmission
0,3 +
0,2
