TRANSMISSION
Ch 2 page 306 Ch 2 page 307
TRANSMISSION
TRANSMISSION
Ch 2 page 306 Ch 2 page 307
TRANSMISSION

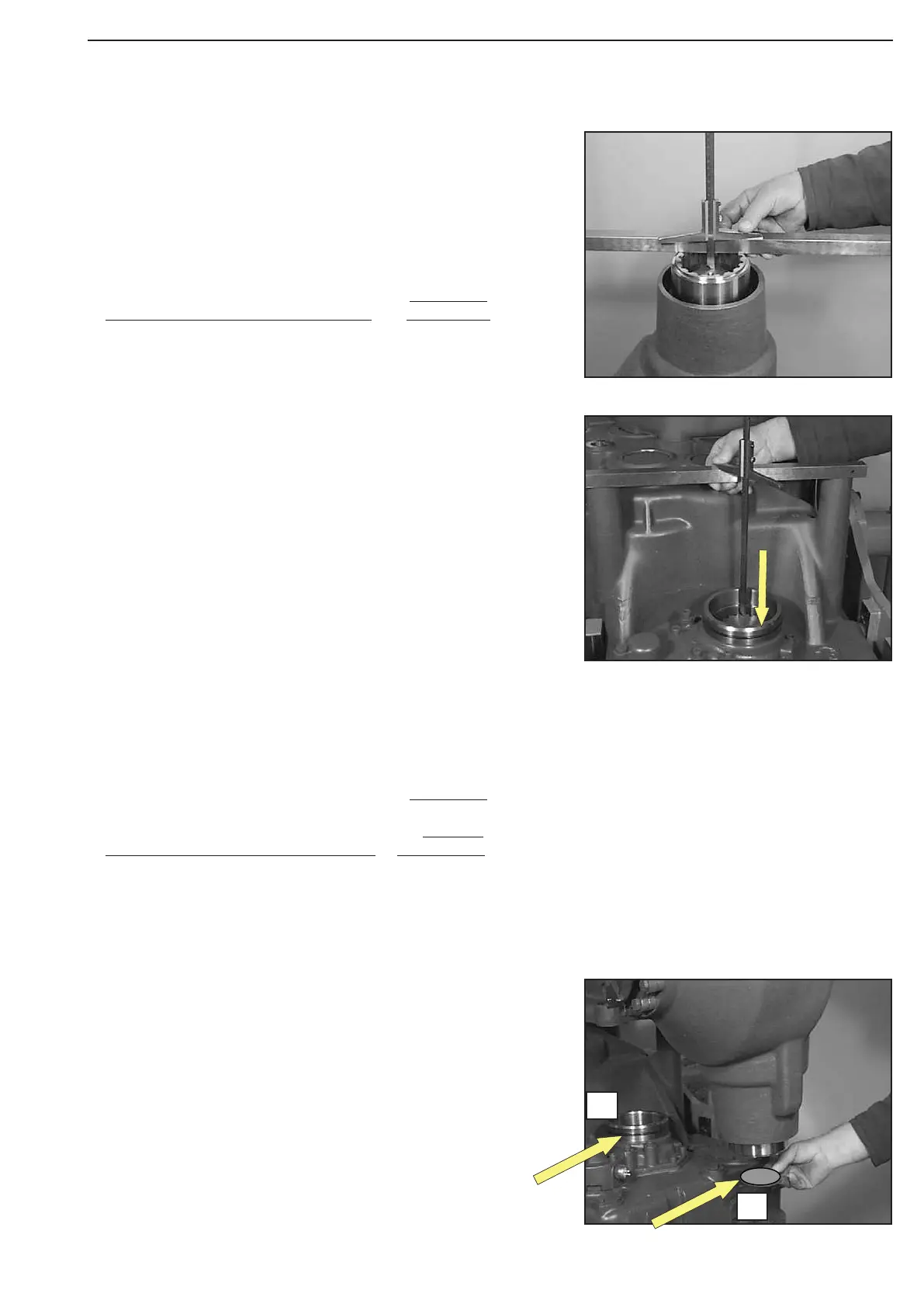

Figure 631
Figure 633
Figure 632
Determine Dimension II from the end face – clutch sleeve to the
end face – drive pinion.
Dimension II e.g. ...................................... 49,00 mm
EXAMPLE S
1
Dimension I e.g. ............................... 291,90 mm
Dimension II e.g. .............................. − 49,00 mm
Gives Dimension X e.g. 242,90 mm
Make shim (Arrow 1) adhere with assembly grease on the end
face of the drive pinion.
Install and grease O-ring (Arrow 2).
EXAMPLE S
2
:
Dimension Y e.g. ............................. 246,80 mm
Dimension X e.g. ...........................
− 242,90 mm
Difference ......................................... 3,90 mm
required Axial play e.g. ................... − 0,40 mm
Gives Shim s = 3,50 mm
Housing dimension:
Position output shaft in arrow direction against shoulder.
Determine Dimension Y from the mounting face to the end face
– output shaft.
Dimension Y e.g. .............................. 246,80 mm
(S) Straightedge 504170
(S) Depth gauge 504718
1
2
