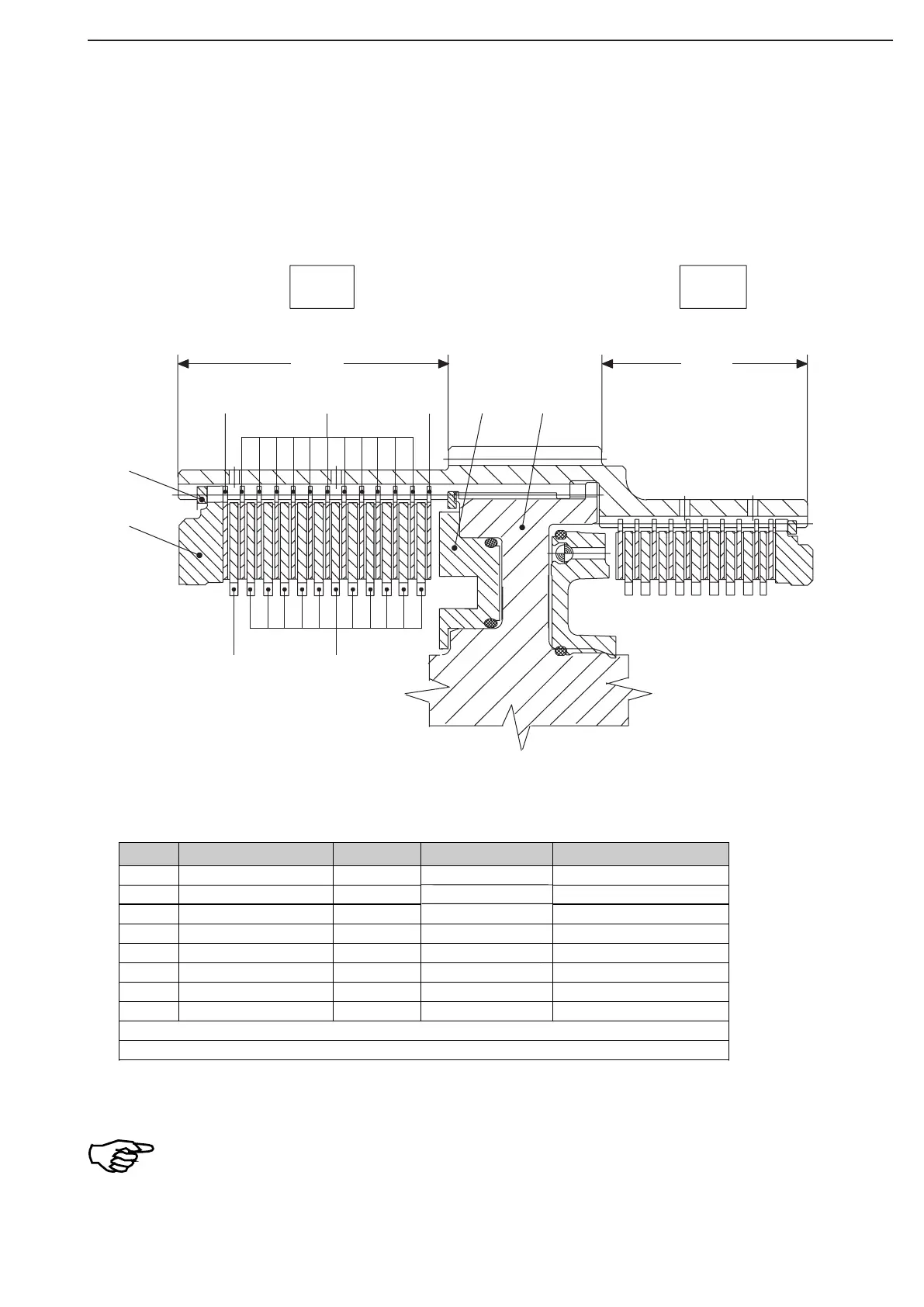

The following sketch or table show plate equipment and installation position of the components.!
Figure 328
Install outer plates Item 3 with the uncoated side facing the piston or the end shim!
The respective clutch side an be recognized by the length or the Ø. Of the plate carrier,
see sketch!
KV = Measure Y (long plate carrier side or great Ø )
K1 = Measure X (short plate carrier or small Ø)
X
Y
33
4
2
1
6
5
7
8
KV
K1
Item Designation Quantity s (mm) Remark
1 Plate carrier 1
2 Piston 1
3 Outer plate 2 1,85 One-side coated
4 Outer plate 11 2,5 Coated on both sides
5 Inner plate 11 2,5
6 Inner plate 1 2,5 ... 4,0 Optional
7 Snap ring 1 2,55 ... 3,1 Optional
8 End shim 1
Number of friction surfaces: 24
Plate clearance: 2,8... 3,0 mm
Clutch-KV
