Moxy MT 26 - Disasembly

SHOP MANUAL MT26/31 - 08.2006 SHOP MANUAL MT26/31 - 08.2006
SHOP MANUAL MT26/31 - 08.2006 SHOP MANUAL MT26/31 - 08.2006
TRANSMISSION
Ch 2 page 282 Ch 2 page 283
TRANSMISSION
TRANSMISSION
Ch 2 page 282 Ch 2 page 283
TRANSMISSION

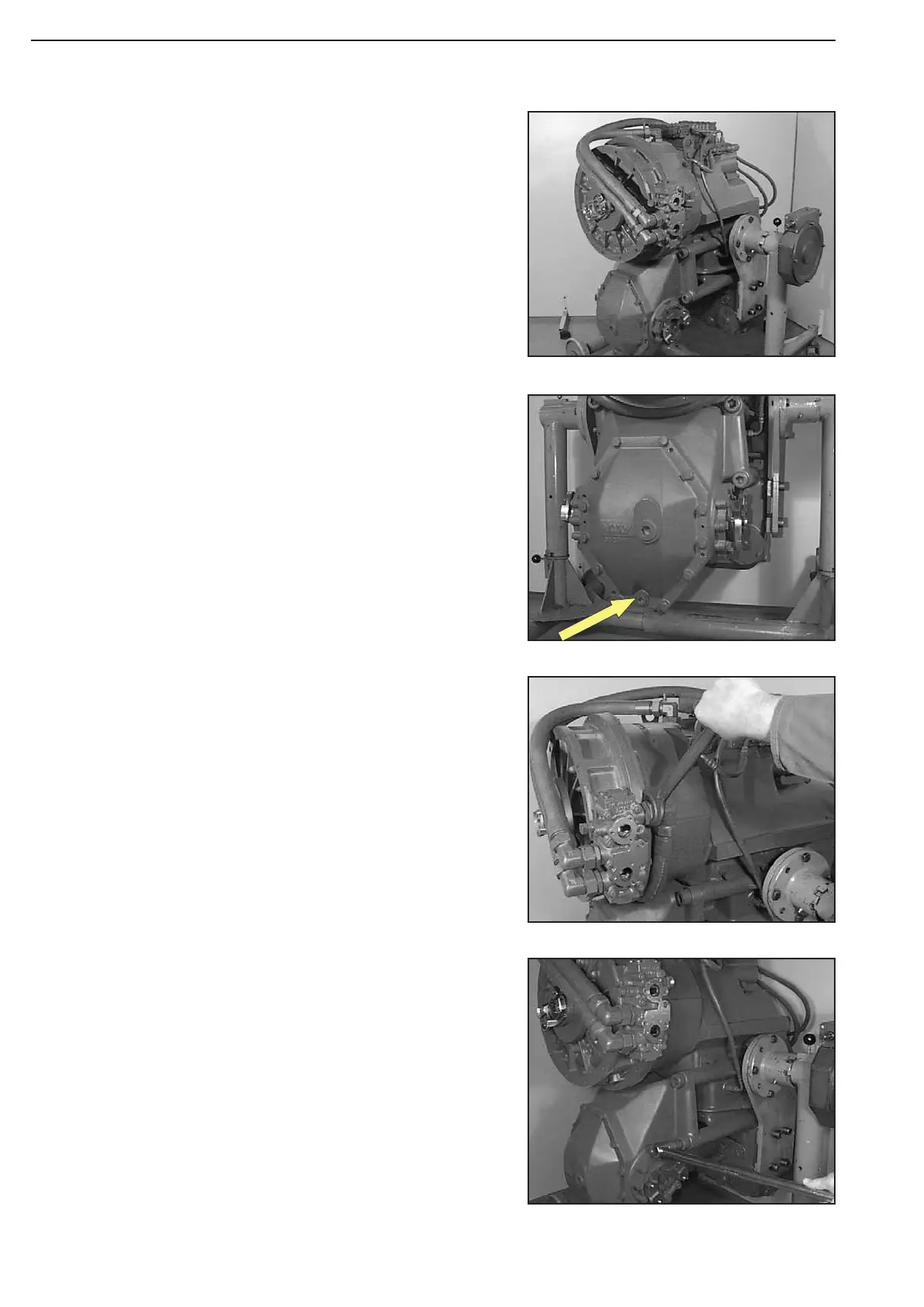

Figure 550
Figure 553
Figure 552
Figure 551
Version: with Limited-slip differential DL-2400
(45% Interlock value)
Fasten transmission on the assembly car.
(S) Assembly car 504213
(S) Clamping bracket 504214
Disasembly
Loosen screw connection (Transmission/LK-drive).
Remove oil line.
Loosen screw plug (Arrow) and drain oil.
