The multi-speed reversing transmission in countershaft design is power shiftable by hydrauli-cally actuated
multi-disk clutches.
All gears are constantly meshing and carried on antifriction bearings.
The gear wheels, bearings and clutches are cooled and lubricated with oil.
The 6-speed reversing transmission is equipped with 6 multi-disk clutches. (Figure example)
At the shifting, the actual plate pack is compressed by a piston, movable in
axial direction, which is pressurized with pressure oil.
A compression spring takes over the pushing back of the piston, thus the release of the plate pack.
As to the layout of the transmission as well as the speciļ¬cations of the closed clutches in the single
speeds.
See in chapter 2.3 Disassembly & Assembly for other clutches.

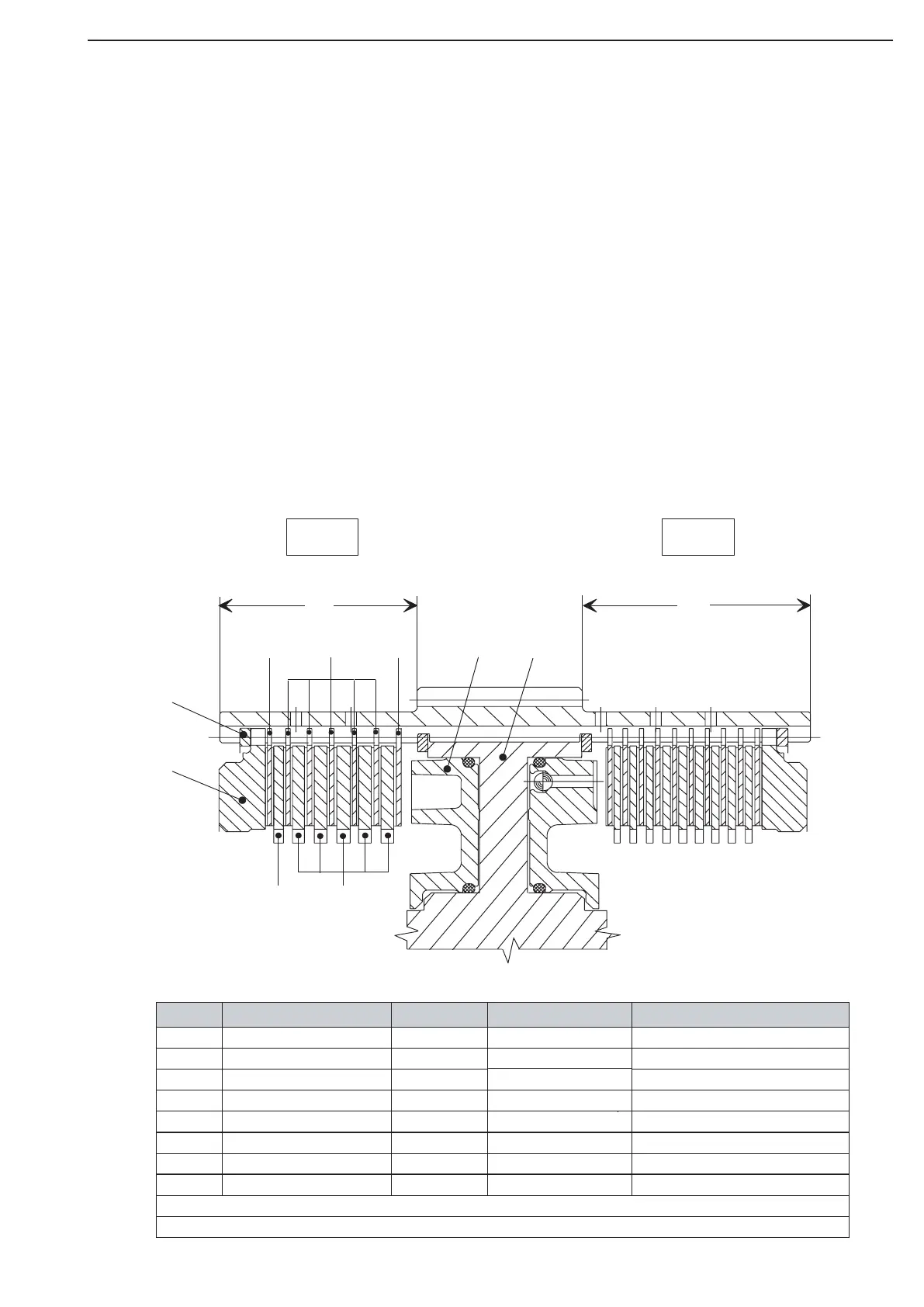

Multi-disk clutch
Example of the Multi-disk clutches
Item. Designation Quantit
s (mm) Remark
1 Plate carrier 1
2 Piston 1
3 Outer plate 2 1,85 One-side coated
4 Outer plate 5 2,5 Coated on both sides
5 Inner plate 5 3,5
6 Inner plate 1 2,5 ... 4,0 Optional
7 Snap ring 1 2,55 ... 3,10 Optional
8 End shim 1
Number of friction surfaces: 12
Plate clearance: 2,2 ... 2,4 mm
