Maintenance, Repair and Tests, continuation
Repair
Pump
 Use only original Lincoln spare parts for repair on the
pumps.
 The pump should be returned to the factory for warranty
work or major repairs.
Replace pump element
5026a96

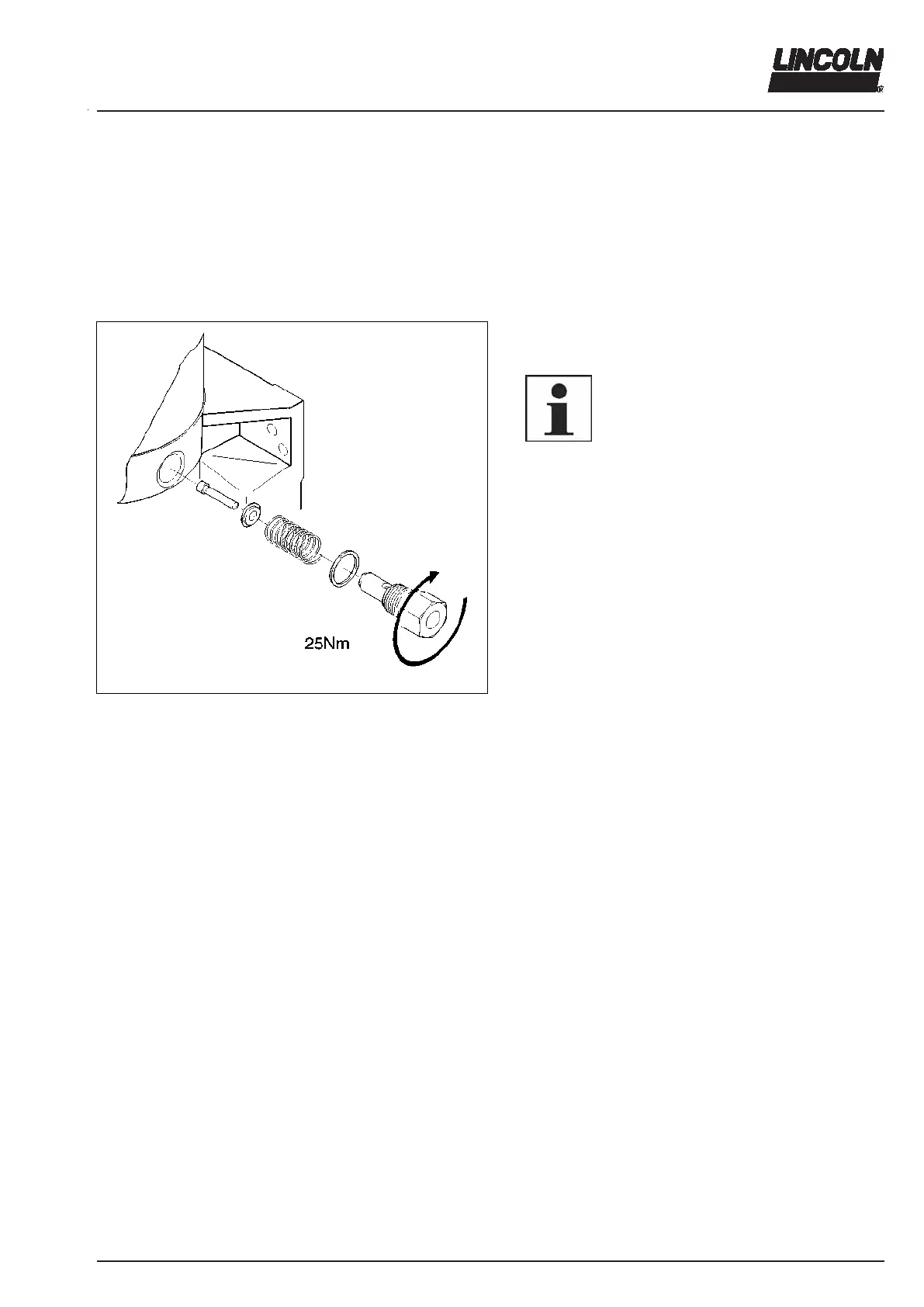

Fig. 45 Replace pump element
 Remove the pressure relief valve from the pump element.
 Unscrew the pump element.
IMPORTANT
Take care that the piston, the pull-back
spring and the washer are not left lying in
the grease; otherwise the reservoir must
be disassembled in order to remove these
pieces.
IMPORTANT
Do not leave the piston, spring and washer
i
n the housing because they may block the
motor.
6001a02
NOTE
Pump elements with adjustable lubricant
output are to be set to the required output
before installation.
 Install a new pump element with a new sealing ring.
Control p.c.b.
 Note down the jumper positions of the defective control
p.c.b.
 Pack the defective control p.c.b. properly so that it will
reach the factory without any further damages.
 A defective control p.c.b. will always be replaced by a
control p.c.b. version MF00 (P223) or MDF00 (P233).
 Set the jumper configuration on the new control p.c.b.
according to the one noted down from the old control
p.c.b.
