TRANSMISSION
Ch 2 page 56

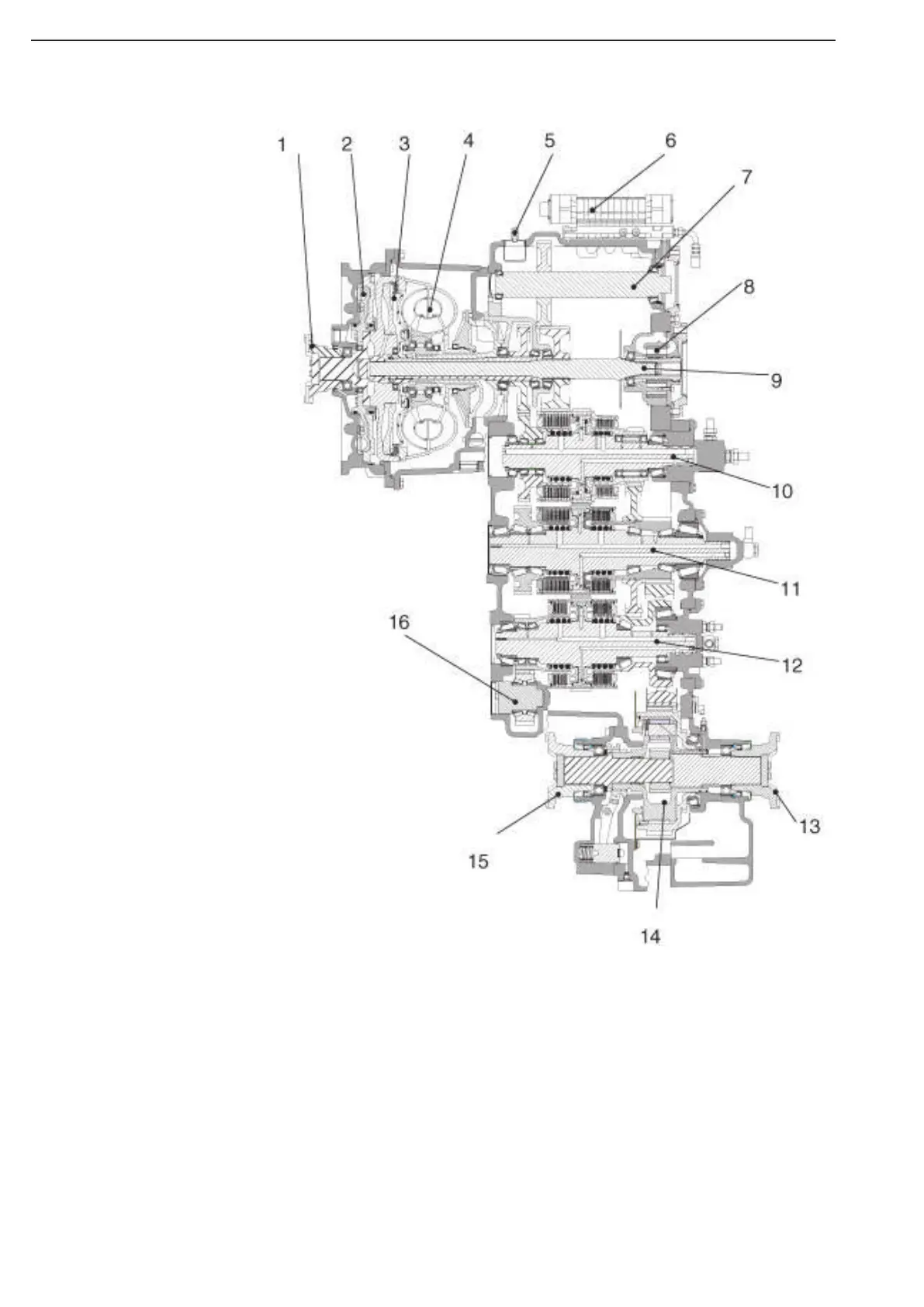

Lay out 6WG-260
1 = Input flange - Drive via universal shaft
2 = retarder
3 = WK
4 = Converter
5 = Breather
6 = Electrohydraulic controll unit
7 = 2nd Power take- off
8 = Transmission pump
9 = 1st Power take- off
10 = Clutch axle “KV/K1”
11 = Clutch axle “KR/K2”
12 = Clutch axle “K¤/K3”
13 = Output flange (rear side)
14 = Crawler speed
15 = Output flange (converter side)
16 = Countershaft
