Figure 330
Figure 332
Figure 331

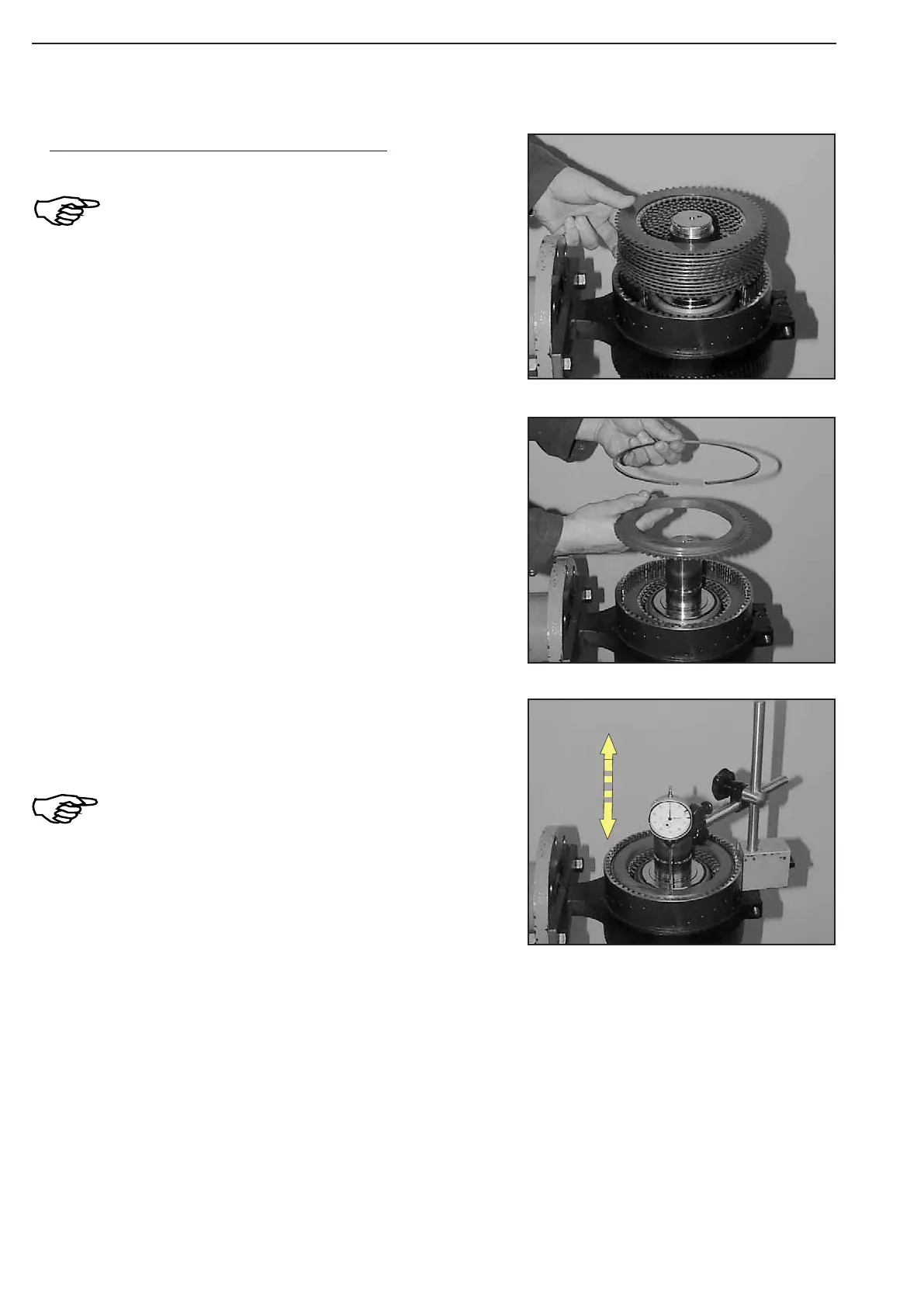

Check plate clearance-KV (Figure 330 ... 332) !
To ensure a correct measuring result, initially
install plate pack without oil!
Install plate pack according to the sketch or table
(previous page)
Press end shim on with about 100 N (10 kg) and set dial indicator
to „Zero“.
In case of deviations from the required plate
clearance (see table/page 3.59 or 3.60),
correct with suitable inner plate (optionally s
= 2,5 ... 4,0 mm) or and snap ring (optionally)!
(S) Magnetic stand 504171
(S) Dial indicator 504172
After the performed adjustment of the plate clearance, dismantle
plate pack and oil plates as per ZF-list of lubricants TE-ML 03 and
mount them again.
Introduce end shim and fix it by means of snap ring..
