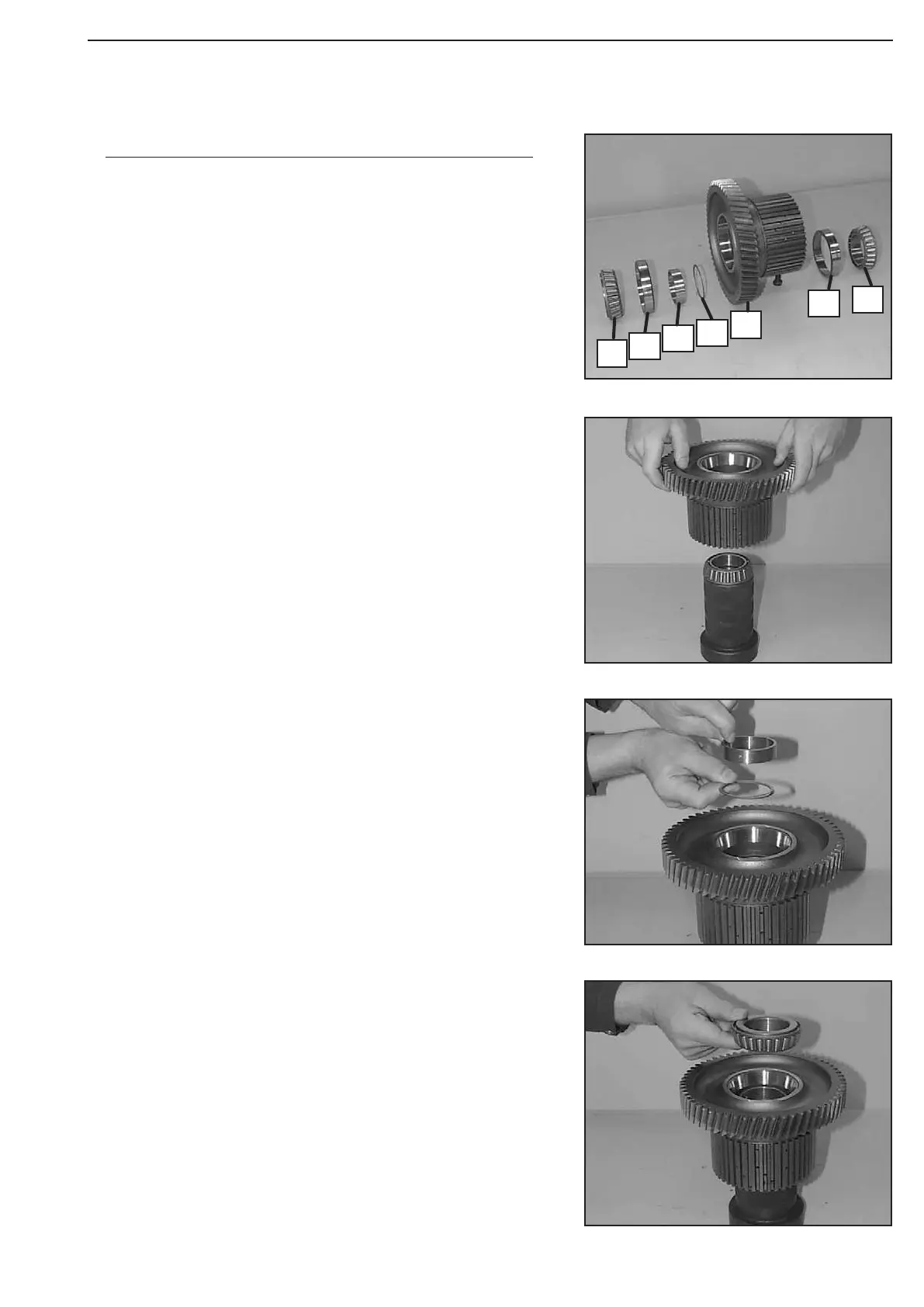

Pre-assemble and install spur gear-KV (Figure 335 ... 343):
The figure on the left shows the components of spur gear KV.
1 = Bearing inner race
2 = Bearing outer race
3 = Ring
4 = Shim(s) optionally, empirical value s = 1,7 mm
5 = Spur gear
Install bearing inner race.
Introduce shim(s) 4 and ring 3.
Check axial gap – spur gear support 0,0 ... 0,05 mm!
Install both bearing outer races (2) and place spur gear over the
bearing inner race
