Figure 324
Figure 327
Figure 326
Figure 325

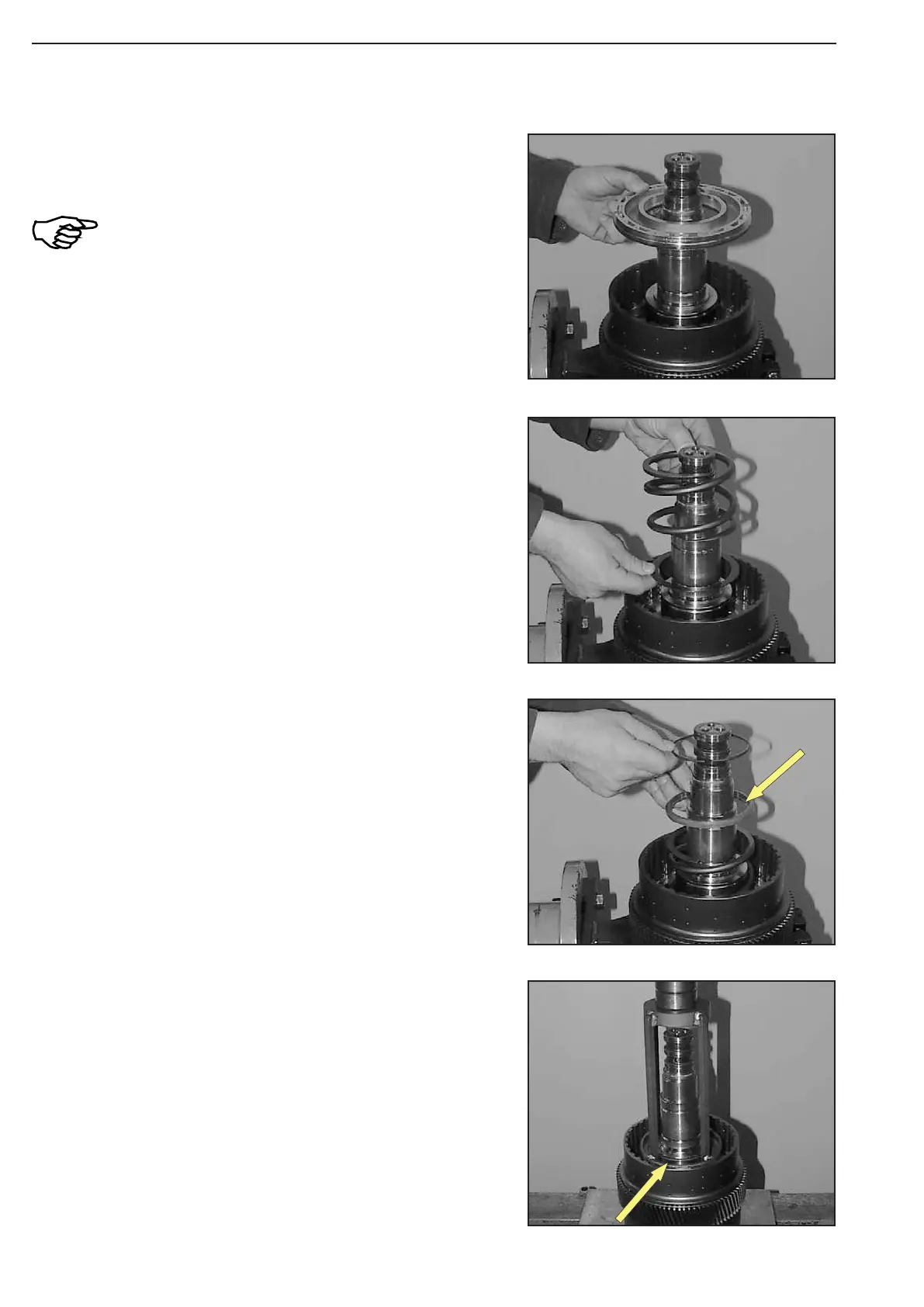

Oil O-rings and piston bearing surfaces.
Uniformly insert K1-piston until contact is obtained.
Pay attention to the installation position of the
piston, see figure!
Lift plate carrier off the clamping ring.
Pre load compression spring by means of special device (S) and
squeeze snap ring into the annular groove of the plate carrier (ar-
row).
See Figure 327!
Accordingly install purge valve, spool and compression spring on
the opposite side (KV-clutch).
Now, lift plate carrier with the KV-side showing downwards into the
clamping ring and fix it.
Tilt plate carrier 180°.
(S) Pressure piece 504211
Lay guide ring with the chamfer (arrow) showing upwards over the
compression spring and line up snap ring..
Introduce intermediate washer and compression spring
To Next Page
