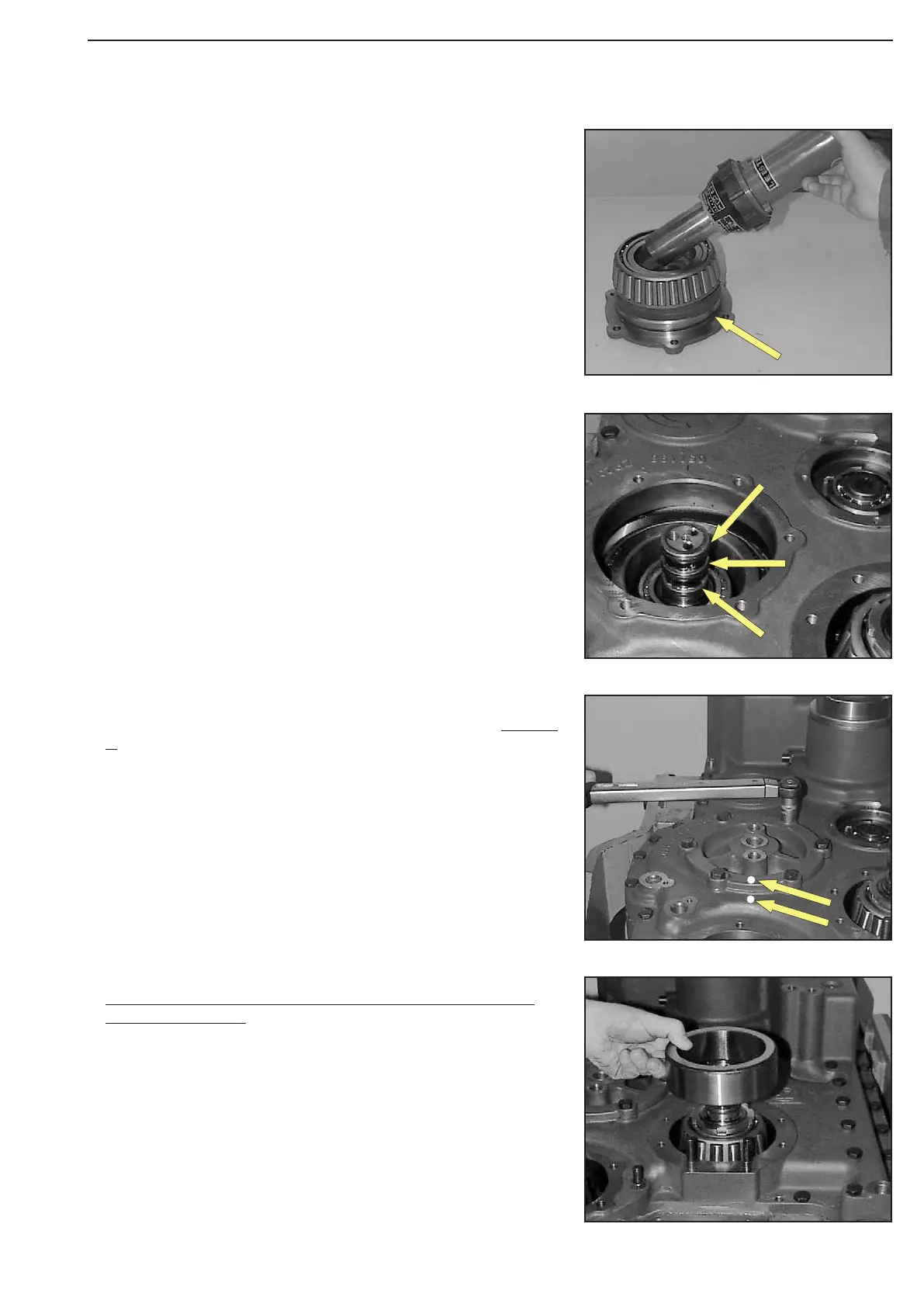

Figure 425
Figure 428
Figure 427
Figure 426
Mount O-ring (arrow) and grease it.
Heat up inner diameter of the bearing cover (bearing seat).
Adjust bearing pre-load of clutch KR/K2 = 0,00 ... 0,05 mm
(Figure 427 ... 430):
Insert bearing outer race until contact is obtained.
Install two adjusting screws.
Line up bearing cover by means of hex. head screws and uniform-
ly tighten them until contact is obtained.
Torque limit (M10/8.8) .........................= 46 Nm
Observe the radial installation position, see marking (arrows)!
Grease rectangular rings (3 x ,arrows) and centrically align them.
