TRANSMISSION
Ch 2 page 244 Ch 2 page 245
TRANSMISSION
SHOP MANUAL MT26/31 - 08.2006 SHOP MANUAL MT26/31 - 08.2006
TRANSMISSION
Ch 2 page 244 Ch 2 page 245
TRANSMISSION
SHOP MANUAL MT26/31 - 08.2006 SHOP MANUAL MT26/31 - 08.2006

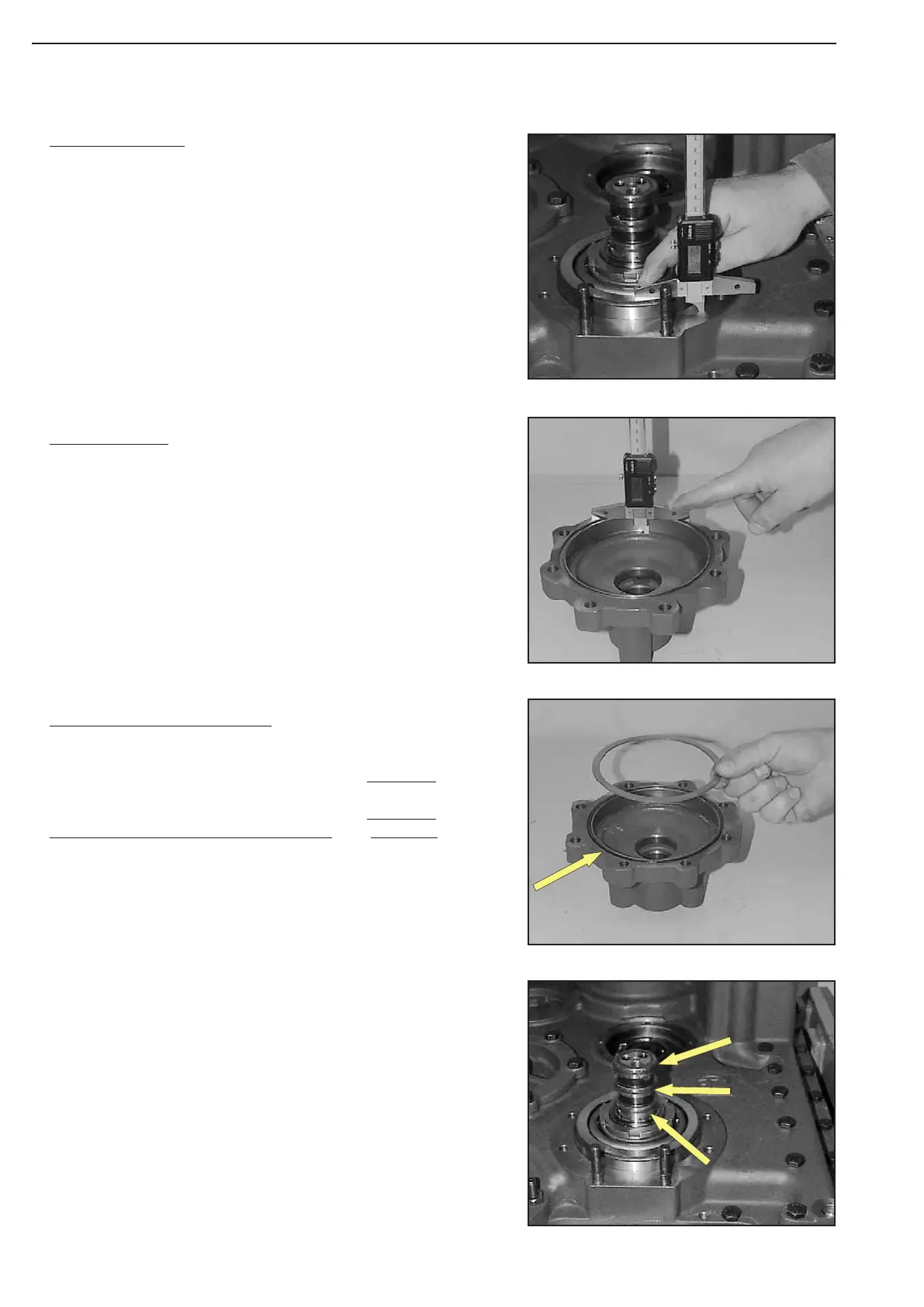

Figure 429
Figure 432
Figure 431
Figure 430
Housing dimension:
Determine measure I from bearing outer race to mounting face.
Measure I e.g. ......................................... 15,68 mm
Grease rectangular rings (arrows) and centrically align them.
CALCULATION EXAMPLE “ G “:
Measure II e.g. ....................................... 17,46 mm
Measure I e.g. .........................................
− 15,68 mm
Difference................................................ = 1,78 mm
Bearing pre-load e.g. .............................. + 0,02 mm
Gives shim(s) s = 1,80 mm
Make shim adhere with assembly grease in the cover.
Install O-ring (arrow).
Cover dimension:
Determine measure II from contact/bearing outer race to mounting
face
Measure II e.g.. ....................................... 17,46 mm
(S) Digital depth gauge 504170
