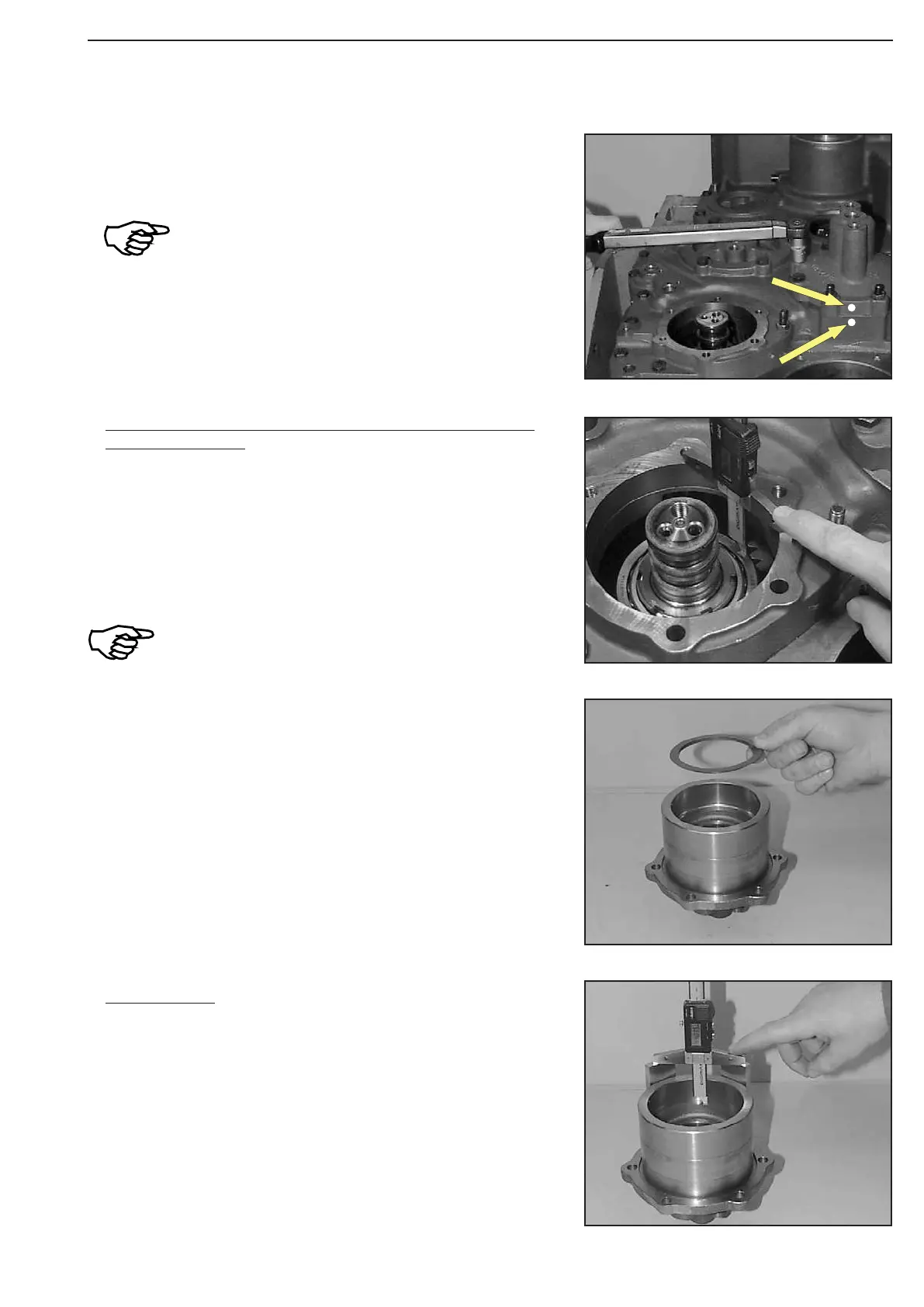

Figure 433
Figure 436
Figure 435
Figure 434
Uniformly pull bearing cover until contact is obtained
Torque limit (M10/8.8) ......................... = 46 Nm
Observe the radial installation position, see
marking (arrows).
Cover measure:
Determine measure II from mounting face to ring.
Measure II e.g. ........................................ 50,75 mm
(S) Digital depth gauge 504175
Insert ring with the chamfer showing downwards into the bearing
cover.
Adjust bearing pre-load of clutch-KV/K1 = 0,00 ... 0,05 mm
(Figure 433 ... 436):
Lay bearing outer race over bearing inner race.
Housing dimension:
Uniformly press on bearing outer race and determine measure I
from mounting face to bearing outer race.
Measure I e.g. ....................................... 52,67 mm
Take several measuring points and determine
the average value!
