Moxy MT 26 - Page 443

TRANSMISSION
Ch 2 page 246 Ch 2 page 247
TRANSMISSION
SHOP MANUAL MT26/31 - 08.2006 SHOP MANUAL MT26/31 - 08.2006
TRANSMISSION
Ch 2 page 246 Ch 2 page 247
TRANSMISSION
SHOP MANUAL MT26/31 - 08.2006 SHOP MANUAL MT26/31 - 08.2006

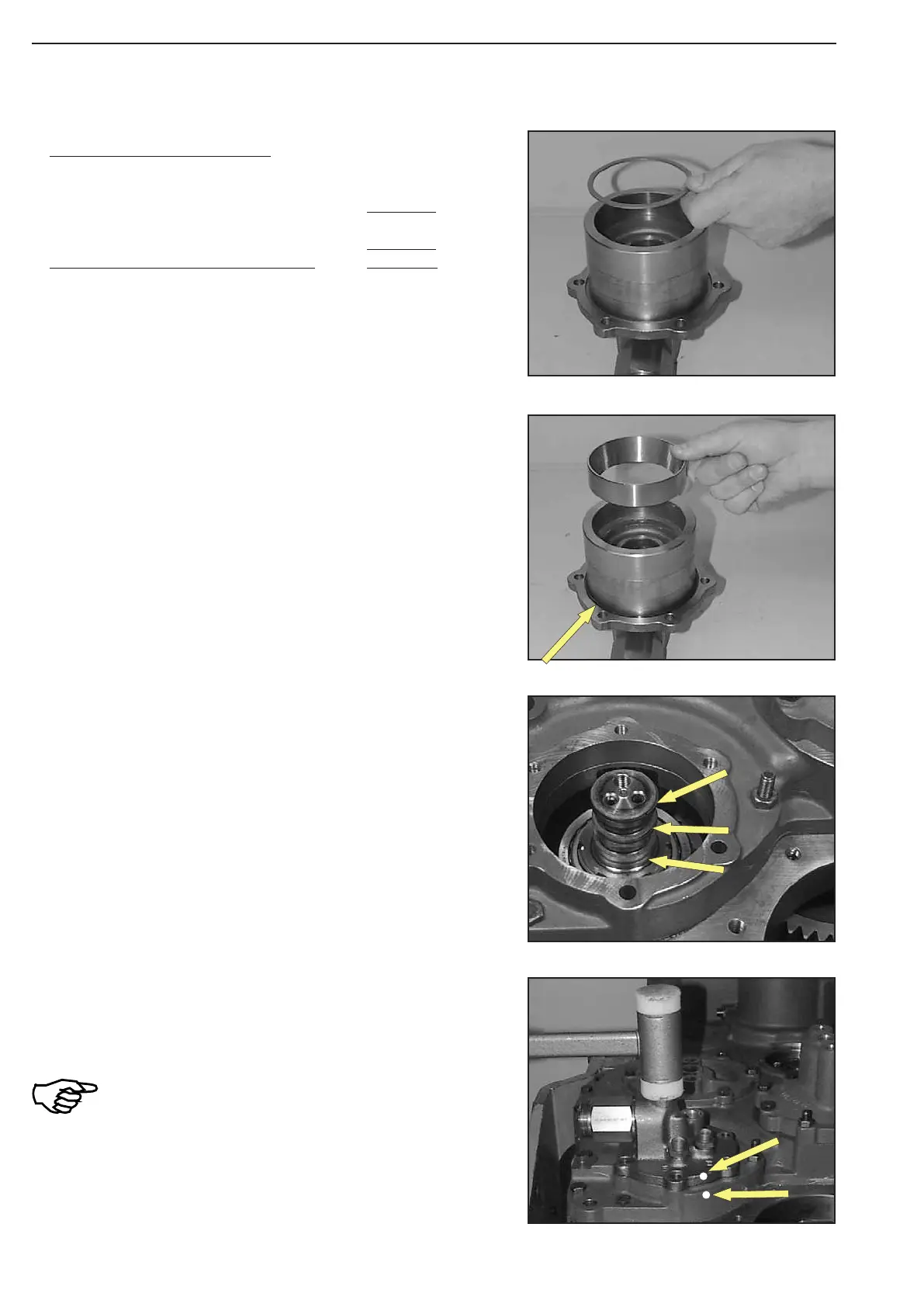

Figure 437
Figure 440
Figure 439
Figure 438
CALCULATION EXAMPLE “ H “:
Measure I e.g.. .................................... 52,67 mm
Measure II e.g. .....................................
− 50,75 mm
Difference ............................................ = 1,92 mm
Bearing pre-load e.g. .......................... + 0,03 mm
Gives shim(s) s = 1,95 mm
Insert shim.
Insert bearing cover until contact is obtained and fasten it by
means of hex. head screws.
Torque limit (M10/8.8) ................ M
A
= 46 Nm
Pay attention to radial installation position,
see marking (arrows)!
(S) Plastic mallet 504196
Grease rectangular rings (arrows) and centrically align them.
Insert bearing outer race until contact is obtained.
Line up O-ring (arrow).
