Engine
SHOP MANUAL MT26-31 - 06.2005
Tier-3 710655-
Ch 1 page 123
6.

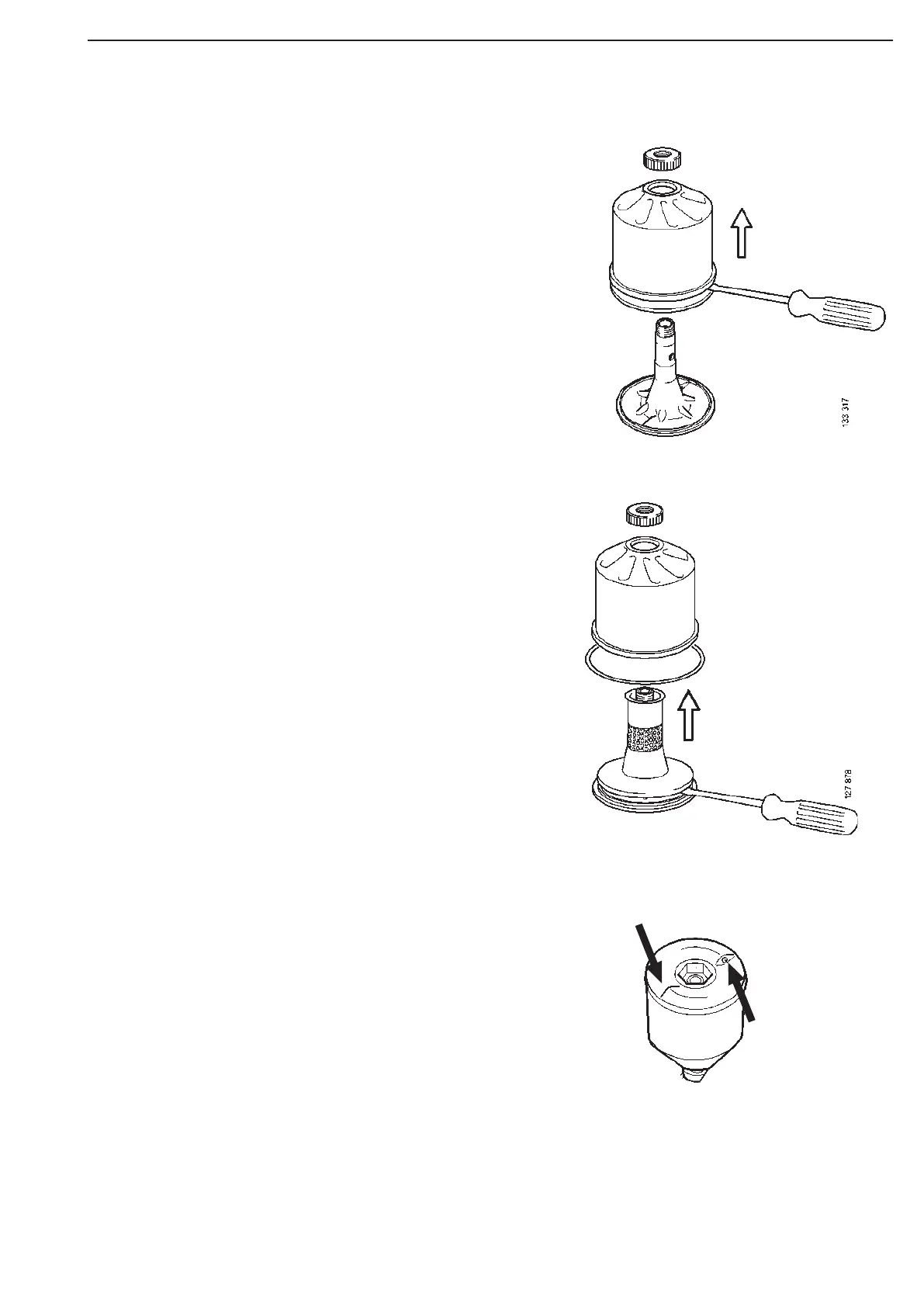

Grasp the rotor bowl and tap lightly with
your hand or carefully use a screwdriver between the rotor bowl
and the strainer so that the rotor bowl comes loose from the
rotor.
Note:
Never strike on the rotor directly as
this may damage its bearings.
6.
Remove the rotor nut and bowl from the
rotor.
7.
Remove the strainer located on the rotor. If
the strainer has fastened, prise carefully with
a knife or screwdriver at the bottom between the rotor and
the strainer.
8.
Scrape away the deposits inside the bowl
with a knife.
9.
Wash the parts.
10.
Inspect the two nozzles on the rotor. Make
sure they are not blocked or damaged.
Renew with new rotor if
any damaged on the nozzles.
11.
Make sure the bearings are not damaged.
Renew with new rotor if
any damaged on the bearing
