Engine
SHOP MANUAL MT26-31 - 06.2005
Tier-3 710655-
Ch 1 page 125
14.
Make sure the shaft is not loose. If it is, it can
be locked using screw locking compound.
First clean thoroughly using a suitable
solvent.
15.
Tighten the rotor shaft using socket 8023.
Tightening torque 34 Nm.
16

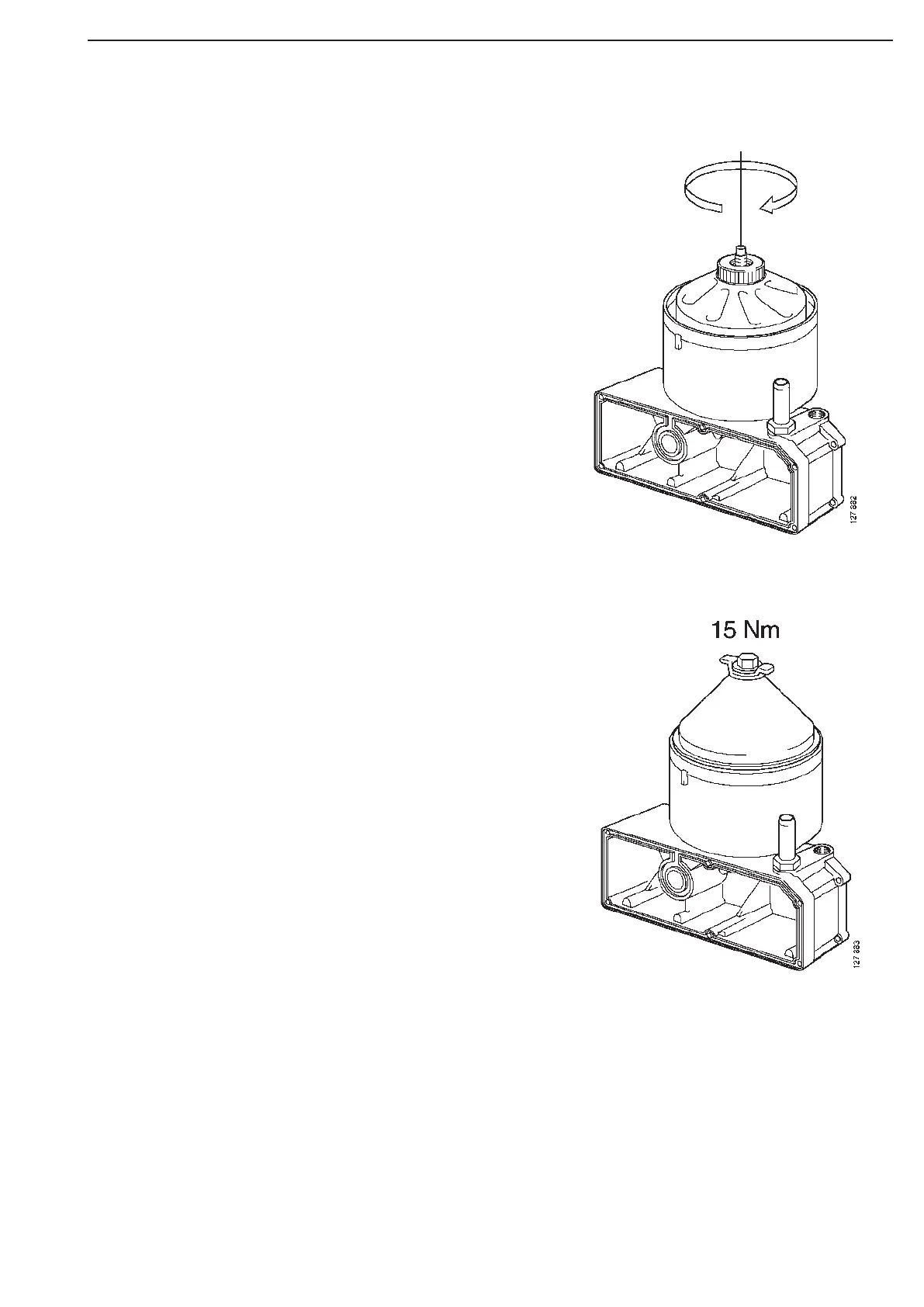

Refit the rotor and spin it by hand to make
sure it rotates easily.
17.
Inspect the O-ring on the cleaner housing
cover and fit it with a lock nut.
Tighten the lock nut to 15 Nm.
