SHOP MANUAL MT26-31 - 06.2005
Engine
Tier-3 710655-
Ch 1 page 6

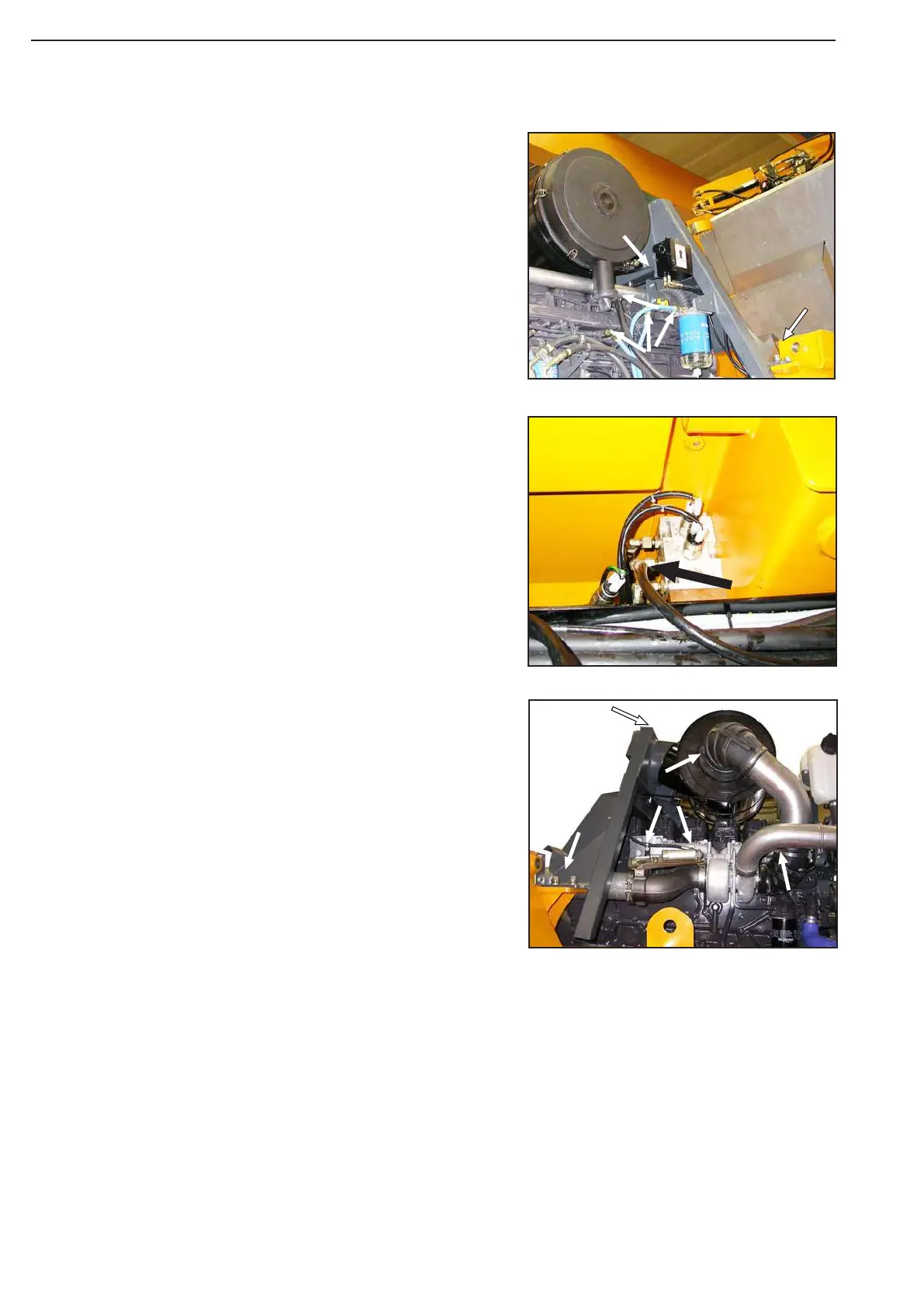

Left side:
1
Disassemble the cab pump unit from the air filter stand.
2
Remove the water hose from the pipe socket.
3
Remove the fuel hoses (3 pcs) and
4
Disassemble screws from filter stand bracket
Right side:
1
Unscrew the hose clamps and remove the pipe bend,
filter - turbo
2
Disconnect the oil hose from engine brake cylinder and bracket
disassemble the other end at left side on the magnetic valve
3
Hook up the filter stand in lifting device.
4
Screw off the fastening bolt for filter stand,
left and right hand side
2
1
1
4
3
Disconnect the brake hose from the magnetic valve.
(Left side behind the cab bracket)
1
2
3
4
To Next Page
