TRANSMISSION
Ch 2 page 202 Ch 2 page 203
TRANSMISSION
TRANSMISSION
Ch 2 page 202 Ch 2 page 203
TRANSMISSION
Figure 275
Figure 278
Figure 277
Figure 276

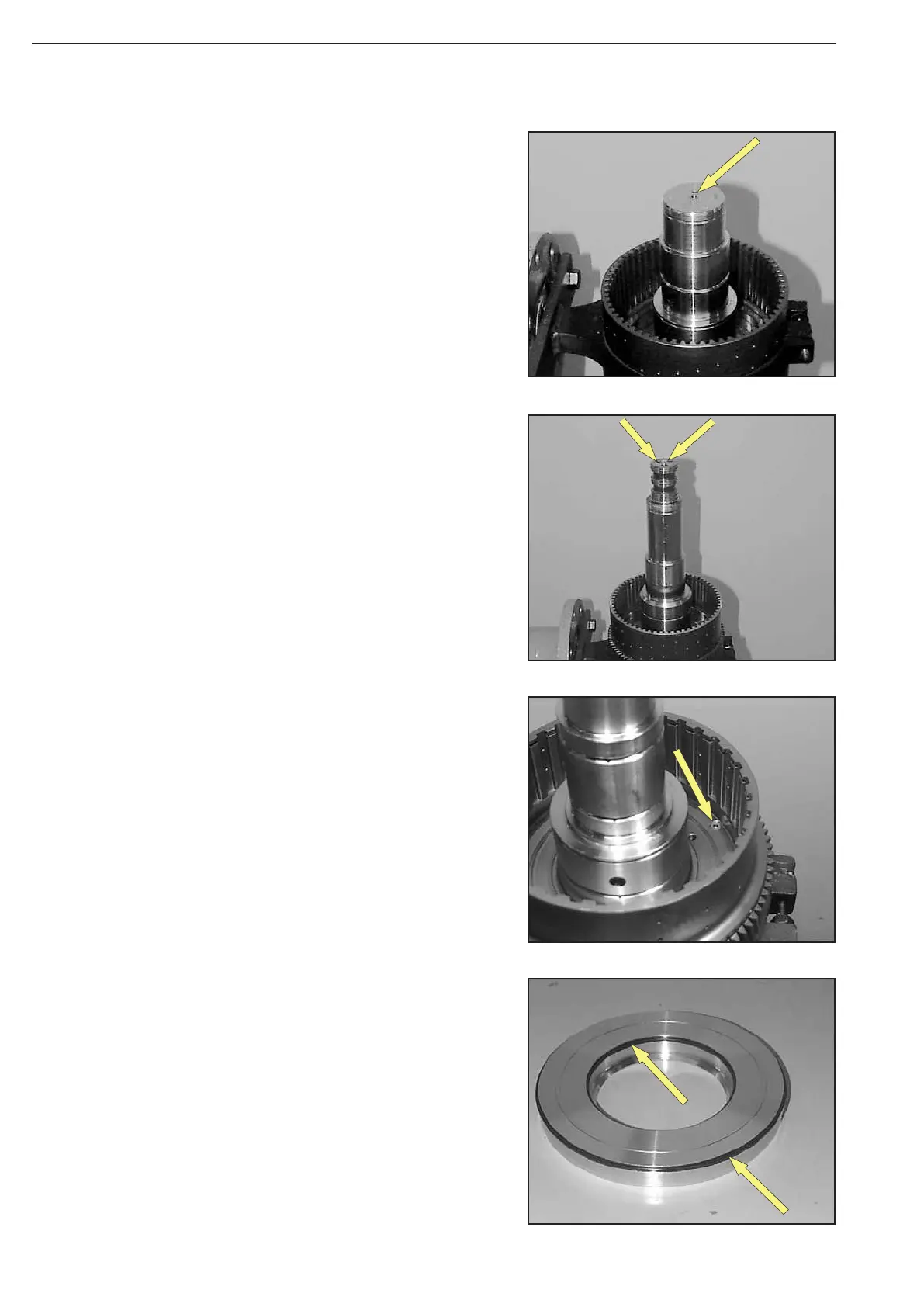

Reassemble multi-disc clutch-KR/K2
Lift plate carrier with the KR-side showing downward into clamping
ring and fix it.
Tilt plate carrier 180°.
Insert both roll pins (6x24 and 3,5x24 mm) flush into the spur gear
side bore of the plate carrier (arrow).
(S) Clamping ring 504226
or 504227
Lay both O-rings scrollfree into the ring grooves of the piston, see
arrows!
Insert purge valve (arrow) flush with the chamfer showing down
-
wards.
(S) Settling tool 504207
Tilt plate carrier by 180°.
Wet both set screws (arrows) with Loctite, type-no. 262 and install
them
To Next Page
