Figure 300
Figure 302
Figure 301

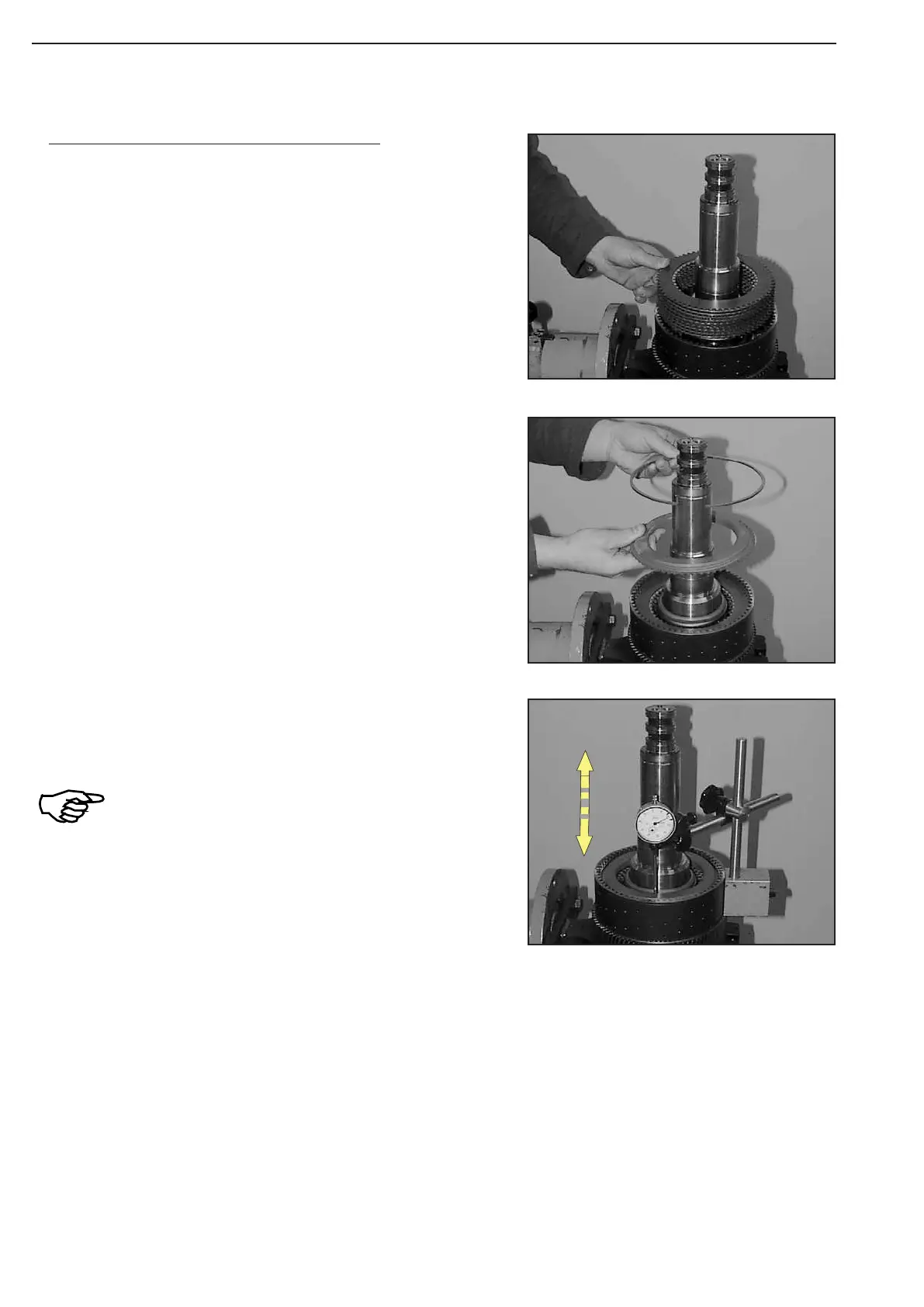

Check plate clearance-K2 (Figure 300 ... 302)
To ensure a correct measuring result, initially install plates
without oil!
Install plate pack according to the sketch or table
See Fig 299 and 308.
Press on end shim with about 100 N (10 kg) and set dial indicator
to „Zero“.
Now, press end shim against snap ring (upwards) and read plate
clearance from dial indicator.
In case of deviations from the required plate
clearance (see table/page 3.50 or 3.51), correct
with a suitable inner plate (optionally s = 2,5 ...
4,0 mm) or and snap ring (optionally)!
(S) Dial indicator 504172
(S) Magnetic stand 504171
After the performed adjustment of the plate clearance, disassem-
ble plate pack, oil plates according to ZF-list of lubricants TE-ML
03 and install them again!
Insert end shim and fix it by means of snap ring.
To Next Page
