Figure 357
Figure 360
Figure 359
Figure 358

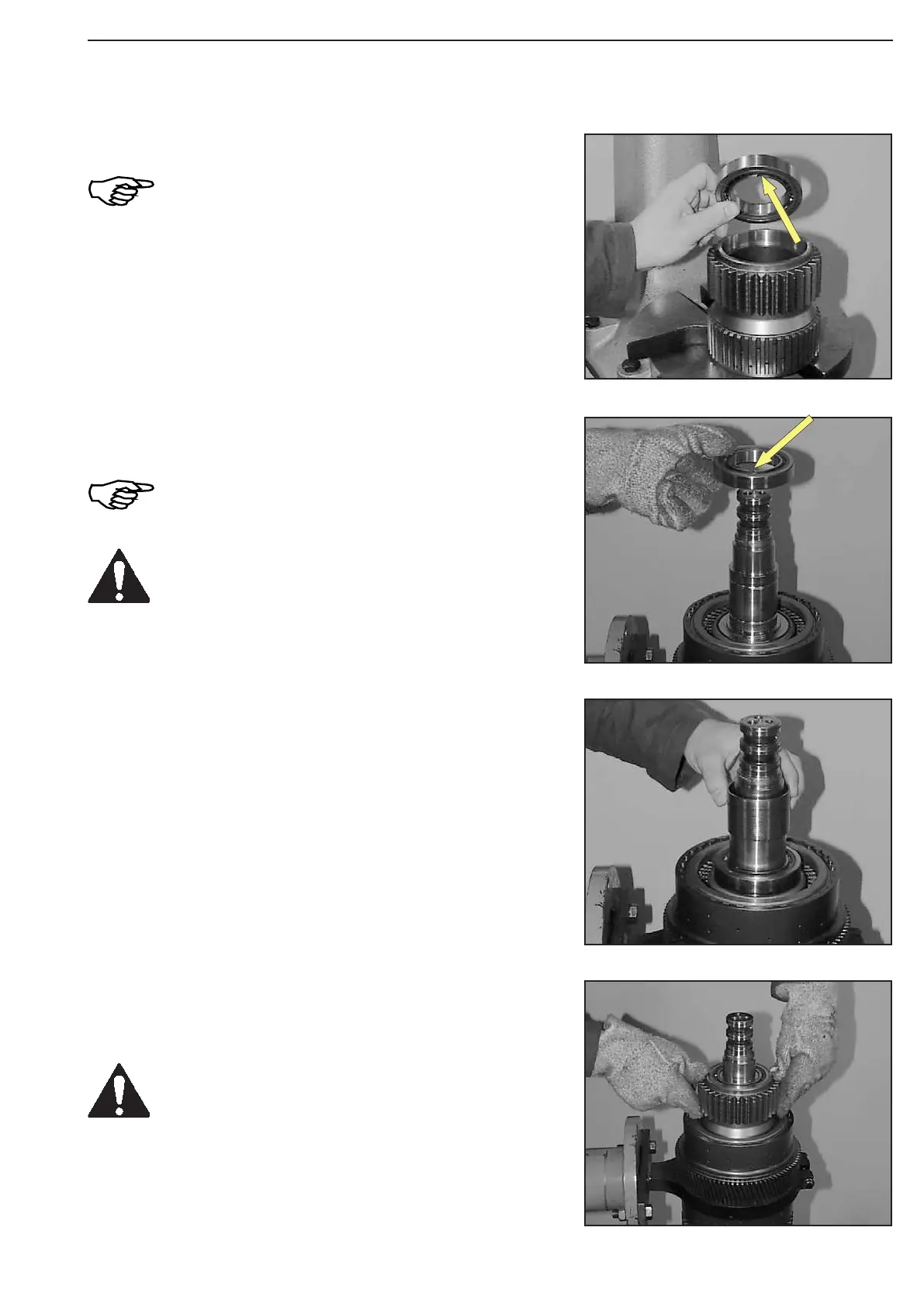

Press in ball bearing until contact is obtained.
Install ball bearing with the lubricating groove
(arrow) showing downwards!
Apply pressing-in tool only to the bearing
outer race!
Heat up spur gear about to 120° C and introduce it until all inner
plates are accommodated.
Use protective gloves!
Line up bush.
Heat up second ball bearing and introduce it until contact is ob-
tained.
The lubricating groove (arrow) must show
upwards!
Use protective gloves!
