TRANSMISSION
Ch 2 page 298 Ch 2 page 299
TRANSMISSION
TRANSMISSION
Ch 2 page 298 Ch 2 page 299
TRANSMISSION

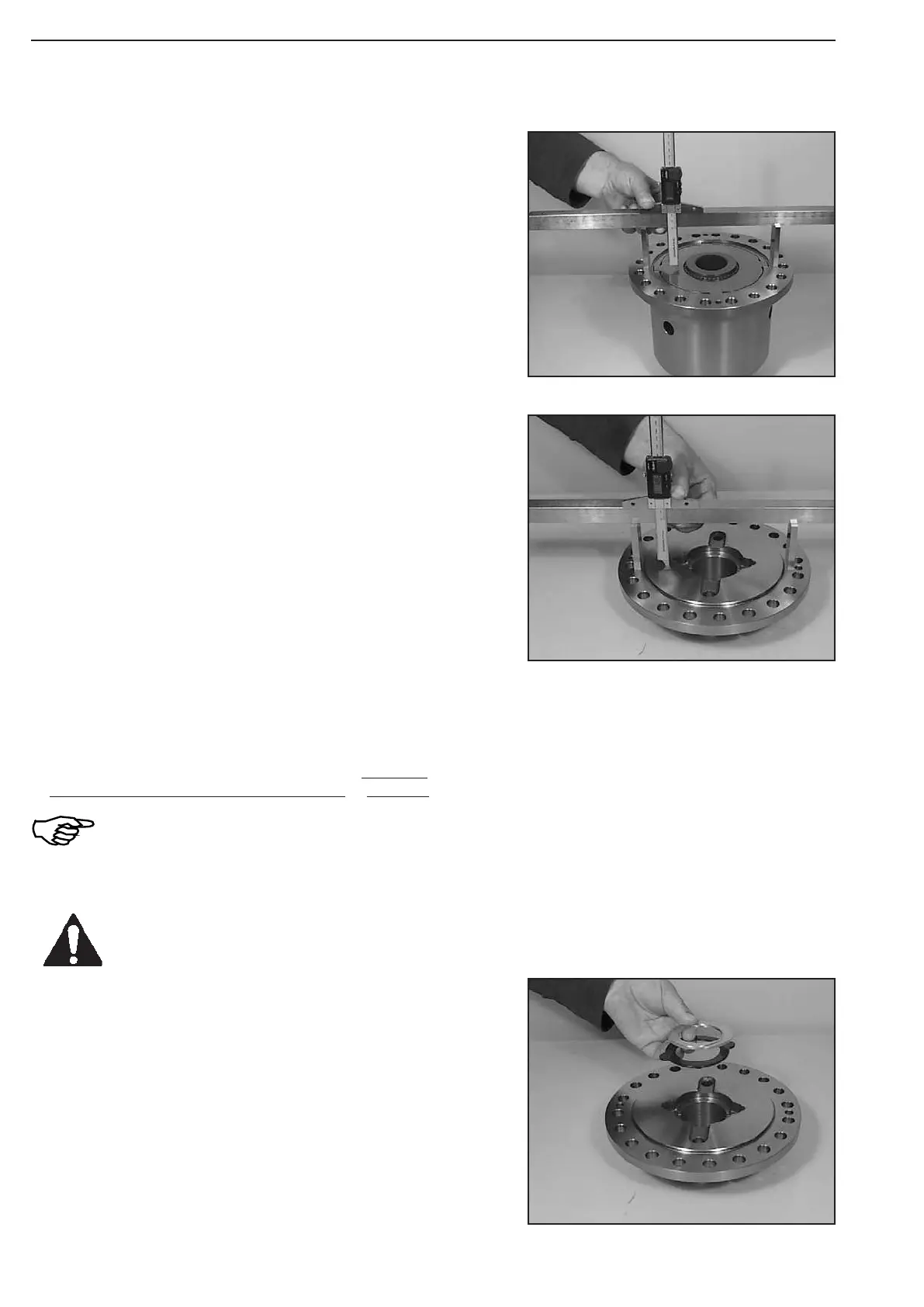

Figure 600
Figure 602
Figure 601
Check the Assembly play of the internal components
= 0,2 ... 0,8 mm (Figure 600 ... Example “P“):
Determine Dimension I from the mounting face to the outer plate.
Dimension I e.g......................................... 4,30 mm
(S) Digital Depth gauge 504175
(S) Straightedge 504170
(S) Gauge blocks 504173
Make both thrust washers adhere with grease in the housing
cover.
EXAMPLE “P“:
Dimension I e.g. ......................................... 4,30 mm
Dimension II e.g. .......................................
− 3,95 mm
Difference ^ Assembly play = 0,35 mm
At the assembly of new plates, aim at the
lower value of the assembly play !
Any necessary corrections have to be carried
out with corresponding outer plates !
Pay attention to the Note, Page 4.14 !
Measure Dimension II from the contact face to the mounting face.
Dimension II e.g. ...................................... 3,95 mm
(S) Digital Depth gauge 504175
(S) Straightedge 504170
(S) Gauge blocks 504173
