Engine
SHOP MANUAL MT26-31 - 06.2005
Tier-3 710655-
Ch 1 page 65
Checking, adjusting the PDE32 injector rocker arms (I)
8405
UP TDC
Valve
overlap on
cylinder
TDC Up
(0°) 1
2
4
5
3
Adjust the
valves on
cylinder
5
3
1
2
4
Adjust unit
injector rocker
arm on cylinder
5
3
1
2
4
5
4
3
2
1
FLYWHEEL
Cylinder numbering

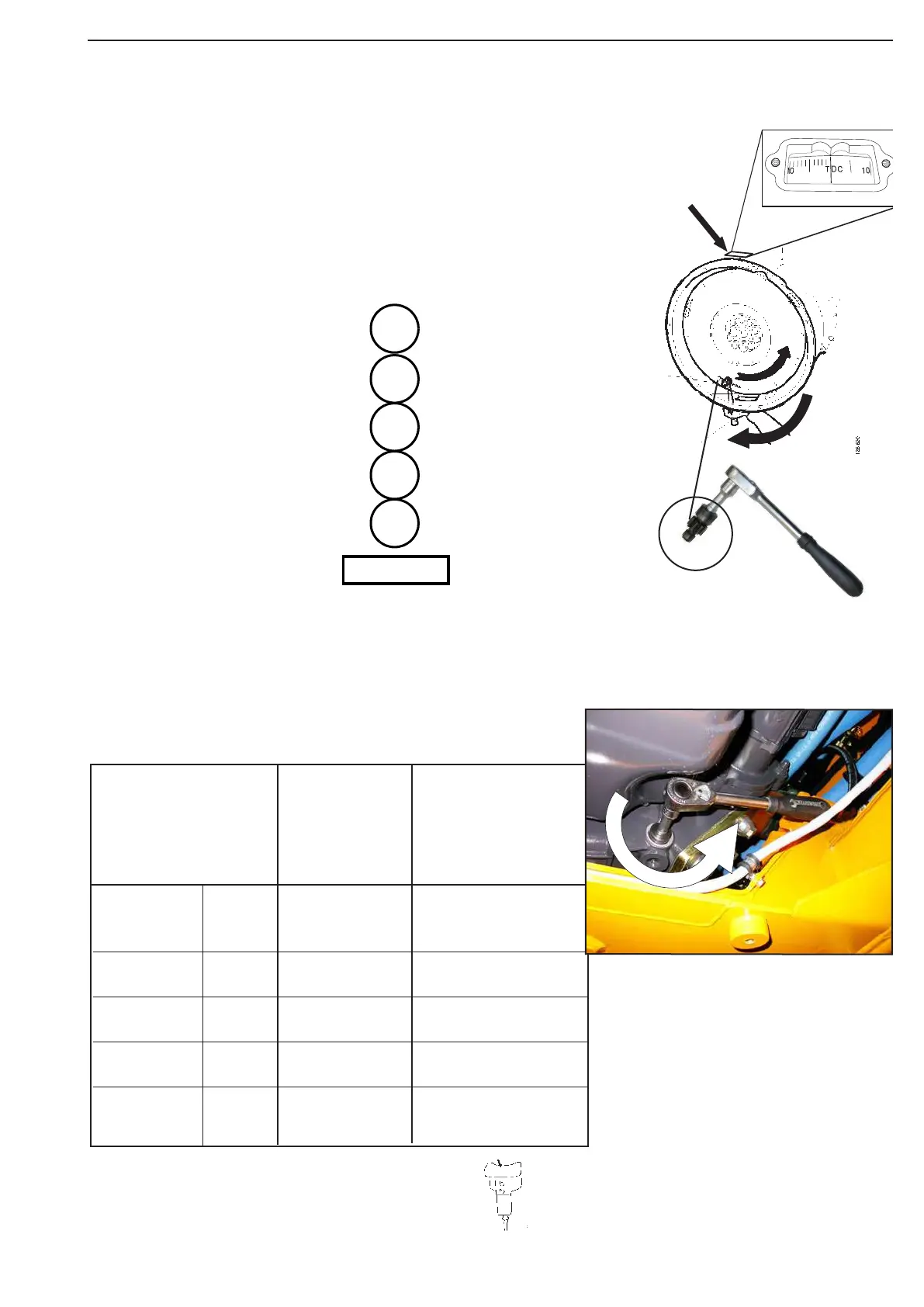

- Turn the flywheel with tool 8405 to valve overlap on cylinder 1
(which corresponds to TDC Up (0°) in the opening).
Then turn the flywheel anti-clockwise 144° at a time and observe
the valve overlap. Adjust the valves according to the table below.
Firing order: 1-2-4-5-3
NOTE !
The adjustable value for the injectors are aprox ±0,2 mm.
If the value is e.g. 0,8-1,0 mm, then check the position of
engine.
Start the adjusting prosedure again and follow the table be-
low.
