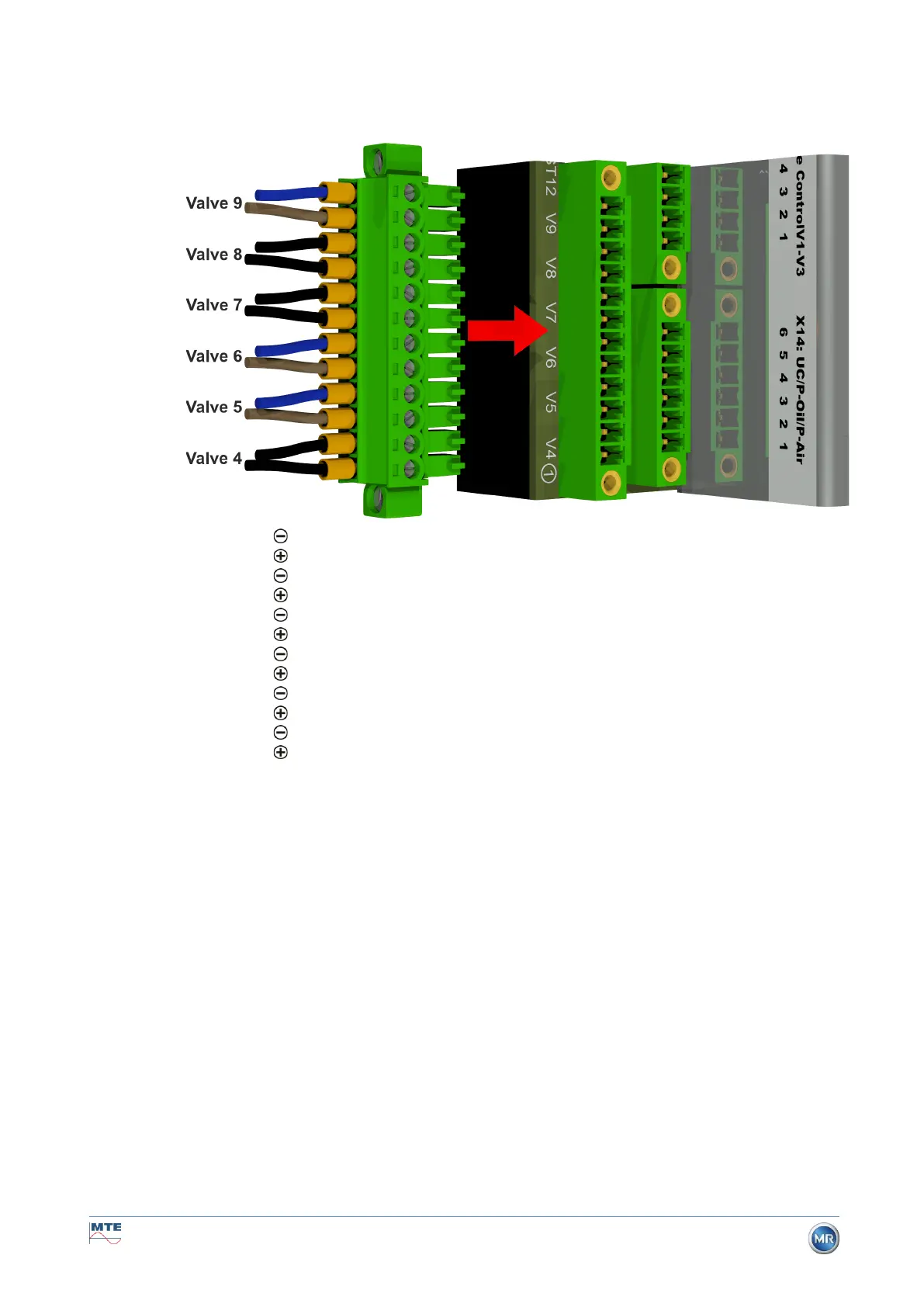

Connector plug X12: Valve control V4 ... V9 [Valve Control V4-V9]
Connection for ventilation, bypass, measurement cell switching, vacuum and
inlet / outlet valve.
X12:12  V9  Inlet / outlet valve
X12:11  V9  Inlet / outlet valve
X12:10  V8  Vent valve for measurement cell 2
X12:9  V8  Vent valve for measurement cell 2
X12:8  V7  Vacuum valve for measurement cell 2
X12:7  V7  Vacuum valve for measurement cell 2
X12:6  V6  Measurement cell switching valve
X12:5  V6  Measurement cell switching valve
X12:4  V5  Bypass valve oil pump
X12:3  V5  Bypass valve oil pump
X12:2  V4  Vent valve for measurement cell 1
X12:1  V4  Vent valve for measurement cell 1
