MR MSENSE DGA 9 - Page 56

MSENSE
®
DGA 9 7045899/02 EN – 11.2020 Page 56
[2]

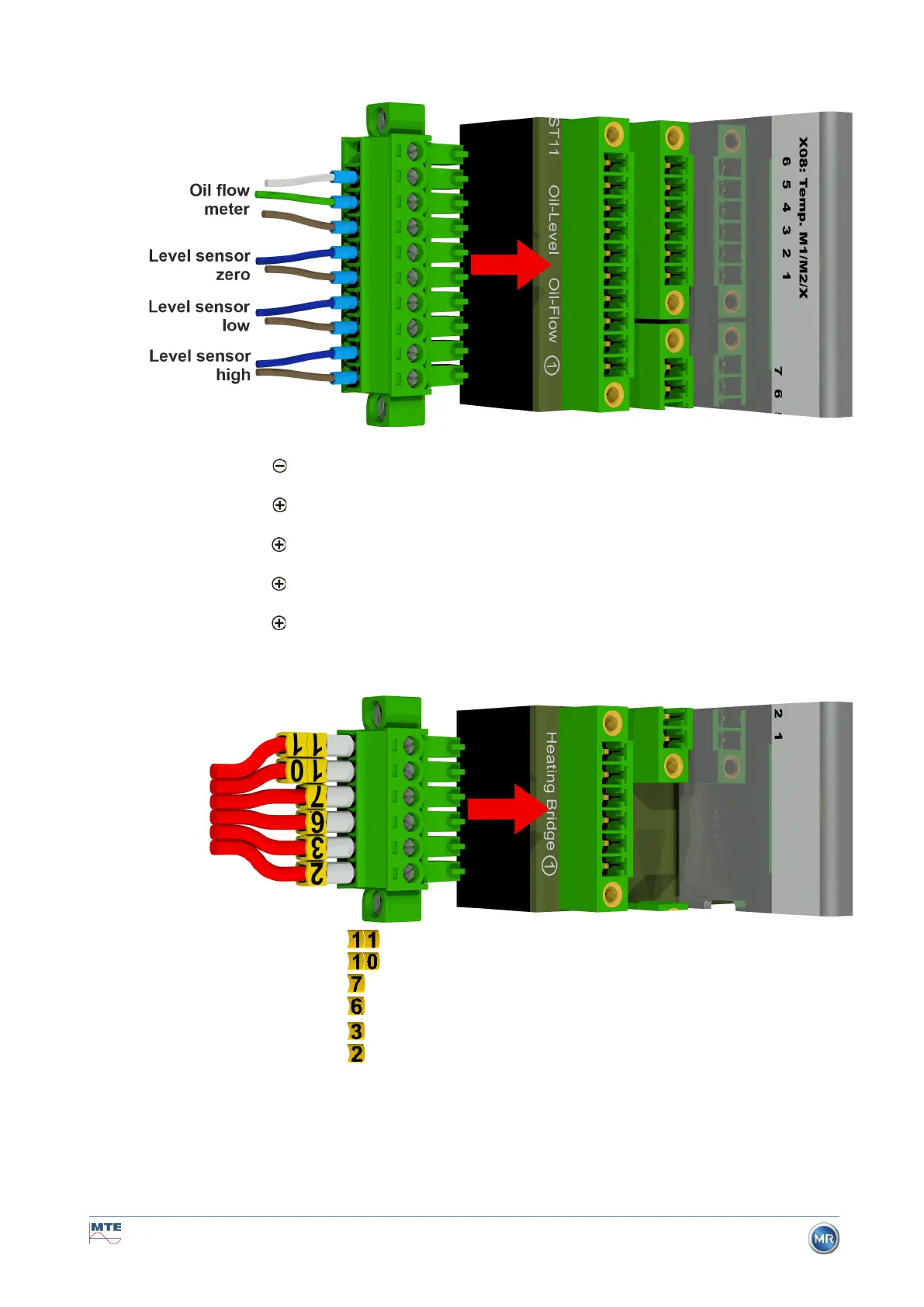

Connector plug X11: Filling level / Flow [Oil-Level Oil-Flow]
Connection for filling levels and flow
X11:10   (not connected)
X11:9  F1  Flow meter
X11:8  F1
Impulse
 Flow meter
X11:7  F1  Flow meter
X11:6  L0
out
 Filling level sensor zero acknowledgement
X11:5  L0 Filling level sensor zero acknowledgement
X11:4  L1
out
 Filling level sensor low
X11:3  L1  Filling level sensor low
X11:2  L2
out
 Filling level sensor high
X11:1  L2  Filling level sensor high
[3]
Connector plug X16: Heating Bridge
Connection of the heating resistors with a supply voltage of 230 V
X16:6  ┌  Heating measurement cell 2
X16:5  └  Heating measurement cell 2
X16:4  ┌  Heating measurement cell 1
X16:3  └  Heating measurement cell 1
X16:2  ┌  Heating extraction chamber
X16:1  └  Heating extraction chamber
