MSENSE
®
DGA 9 7045899/02 EN – 11.2020 Page 57

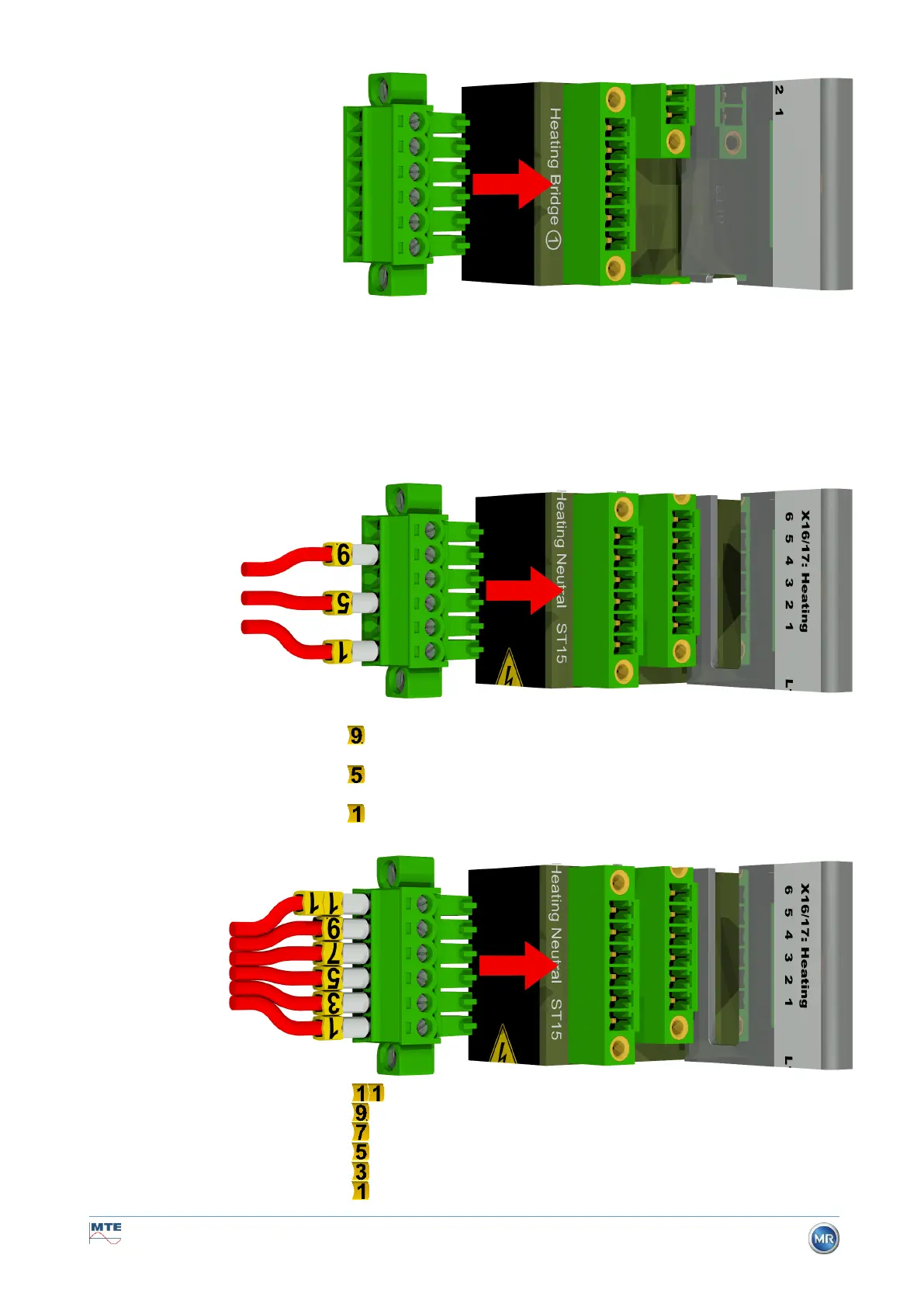

Connection of the heating resistors with a supply voltage of 120 V
X16:6  ┌  (not connected)
X16:5  └  (not connected)
X16:4  ┌  (not connected)
X16:3  └  (not connected)
X16:2  ┌  (not connected)
X16:1  └  (not connected)
[4]
Connector plug X15: Heating Neutral
Connection of the heating resistors with a supply voltage of 230 V
X15:6  N  (not connected)
X15:5  N  Heating measurement cell 2
X15:4  N  (not connected)
X15:3  N  Heating measurement cell 1
X15:2  N  (not connected)
X15:1  N  Heating extraction chamber
Connection of the heating resistors with a supply voltage of 120 V
X15:6  N  Heating measurement cell 2
X15:5  N  Heating measurement cell 2
X15:4  N  Heating measurement cell 1
X15:3  N  Heating measurement cell 1
X15:2  N  Heating extraction chamber
X15:1  N  Heating extraction chamber
