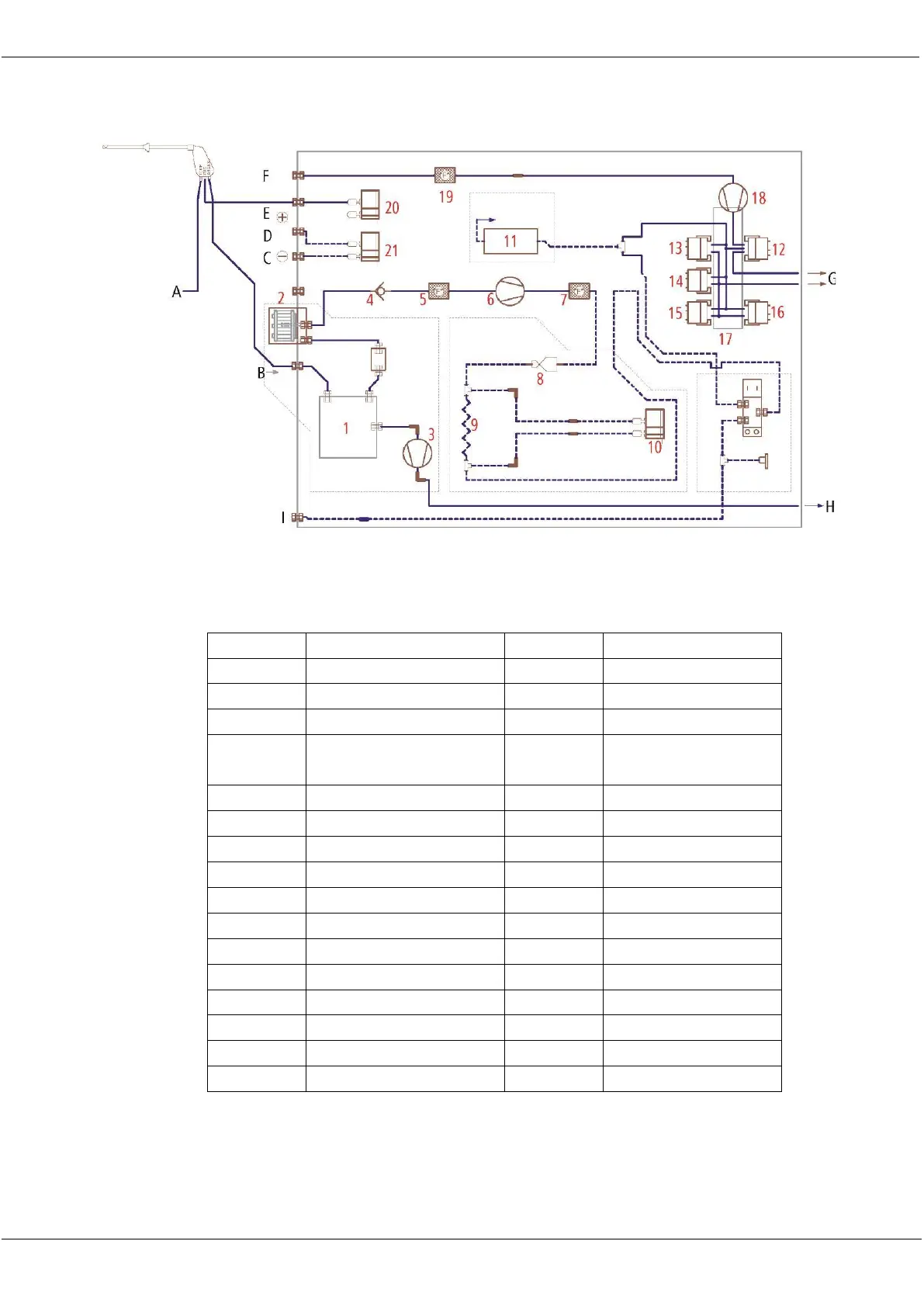

Gas flow diagram with gas cooler
Position
Description
Position
Description
A
Gas temperature
6
Gas pump
B
Gas inlet
7
Filter
C
Differential pressure -
8
Nozzle
D
Differential pressure
+
9
Capillary tube
E
Draft
10
Flow sensor
F
Fresh air inlet
11
NDIR bench
G
Gas outlet
12
O2 sensor
H
Condensate outlet
13
CO sensor
I
TRGI
14
NO sensor
15
NO2 sensor
16
SO2 sensor
1
Gas cooler
17
Sensor chamber
2
Star filter unit
18
Purge pump
3
Hose pump
19
Filter
4
Non return valve
20
Pressure sensor
5
Filter
21
Pressure sensor
