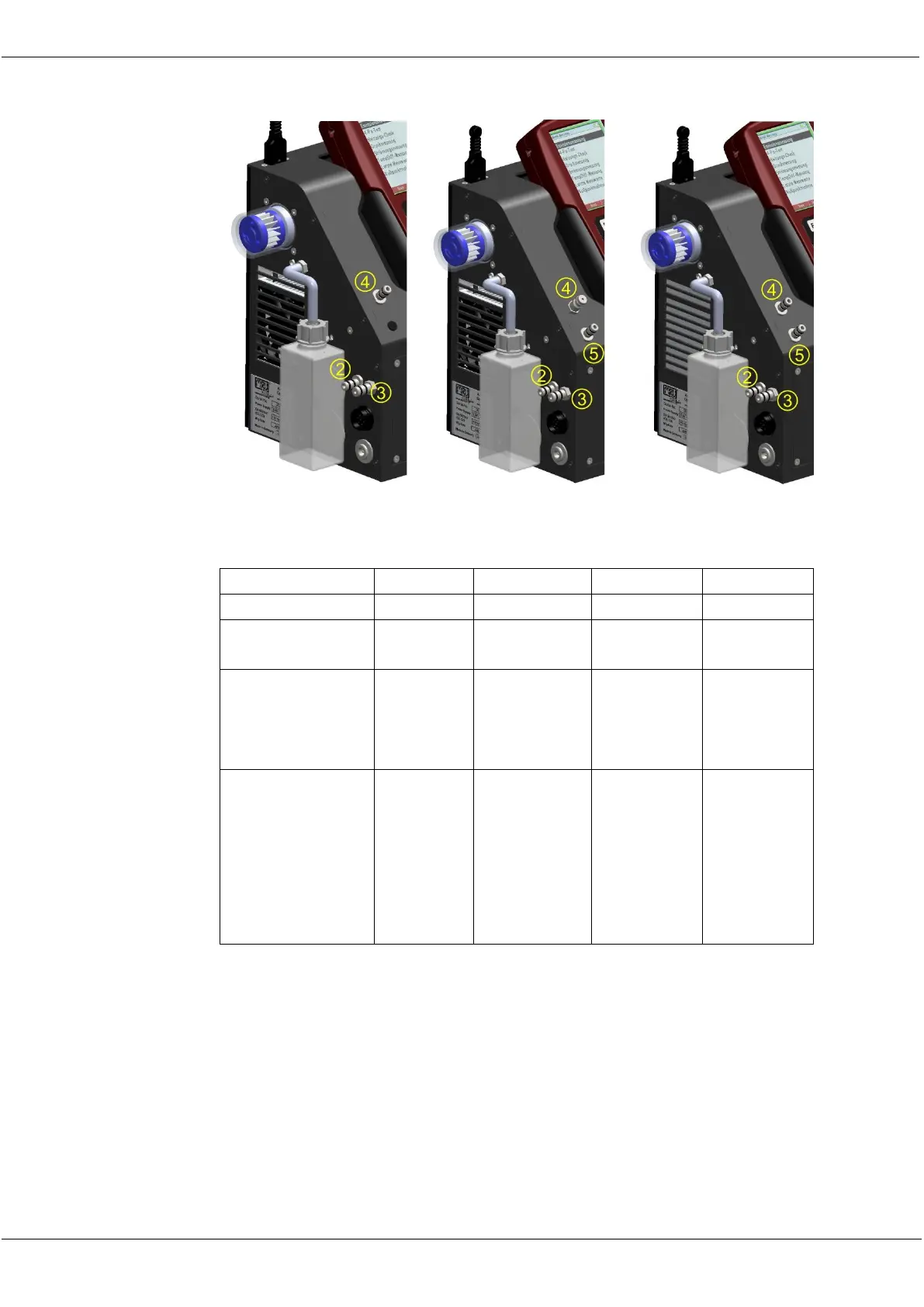

Connectors depending on the options (gas cooler)
Connector
2
3
4
5
Models
1 pressure sen-
sor standard
draft /
pressure -
gas inlet
pressure +
TRGI
Option pipe
tests according
TRGI
draft /
pressure -
gas inlet
TRGI
pressure +
2 pressure sen-
sors
Option Diff.
Pressure meas-
urement with
2nd internal
pressure sensor
draft
gas inlet
pressure -
pressure +
