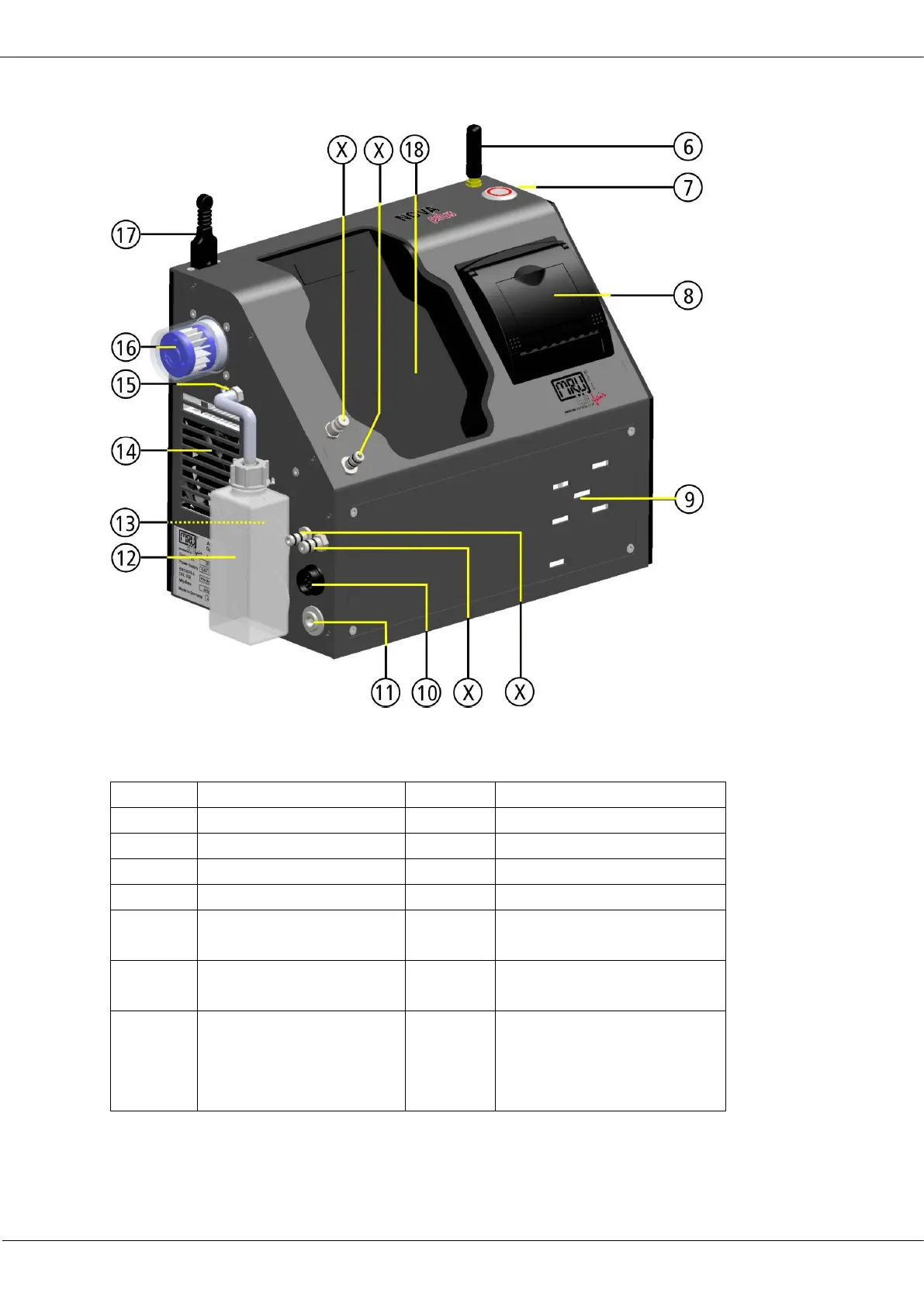

Base unit with gas cooler (option)
Position
Description
Position
Description
6
Aerial
13
LED condensate container
7
ON-/OFF key button
14
Fan gas cooler
8
Built-in speed printer
15
Outlet for condensate
9
Gas outlet
16
Star filter
10
Connector T-gas
17
Connector T-Ambient air
(combustion air)
11
Charging socket
18
Charging frame for Re-
mote control unit
12
Condensate container
X
Connectors
see chapter Connectors
depending on the options
(gas cooler), Page 22
