4. SETPOINT PROGRAMMING S5 THERMAL MODEL
4-31

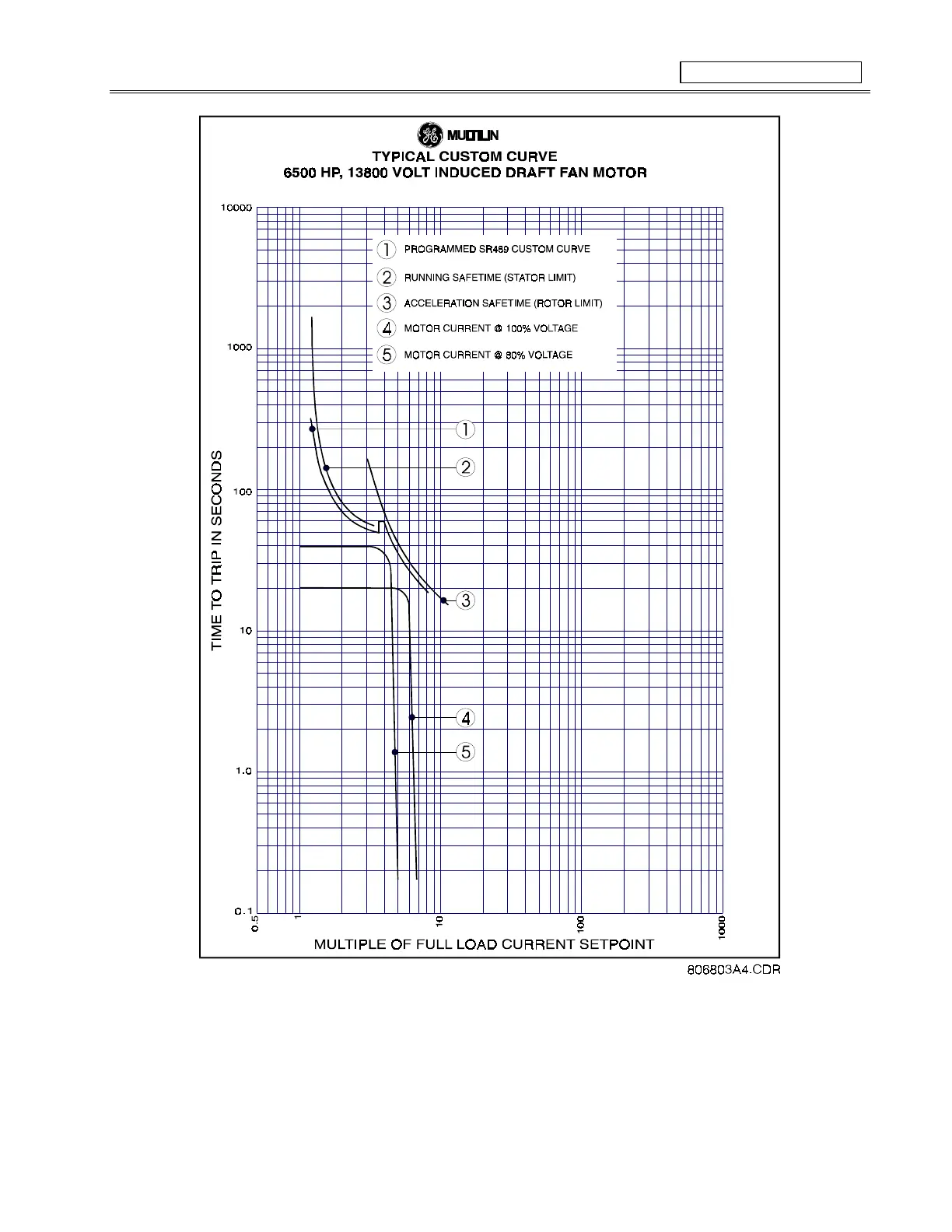

Figure 4-9 CUSTOM CURVE EXAMPLE
Note: During the interval of discontinuity, the longer of the two trip times is used to reduce the
chance of nuisance tripping during motor starts.
