7. TESTING TEST SETUP
7-1
7. TESTING
7.1 TEST SETUP
The purpose of this testing description is to demonstrate the procedures necessary to perform a complete functional test of all the SR469
hardware while also testing firmware/hardware interaction in the process. Since the SR469 is packaged in a drawout case, a demo case
(metal carry case in which an SR469 may be mounted) may be useful for creating a portable test set. Testing of the relay during commis-
sioning using a primary injection test set will ensure that CTs and wiring are correct and complete.
7.1.1
SECONDARY INJECTION TEST SETUP

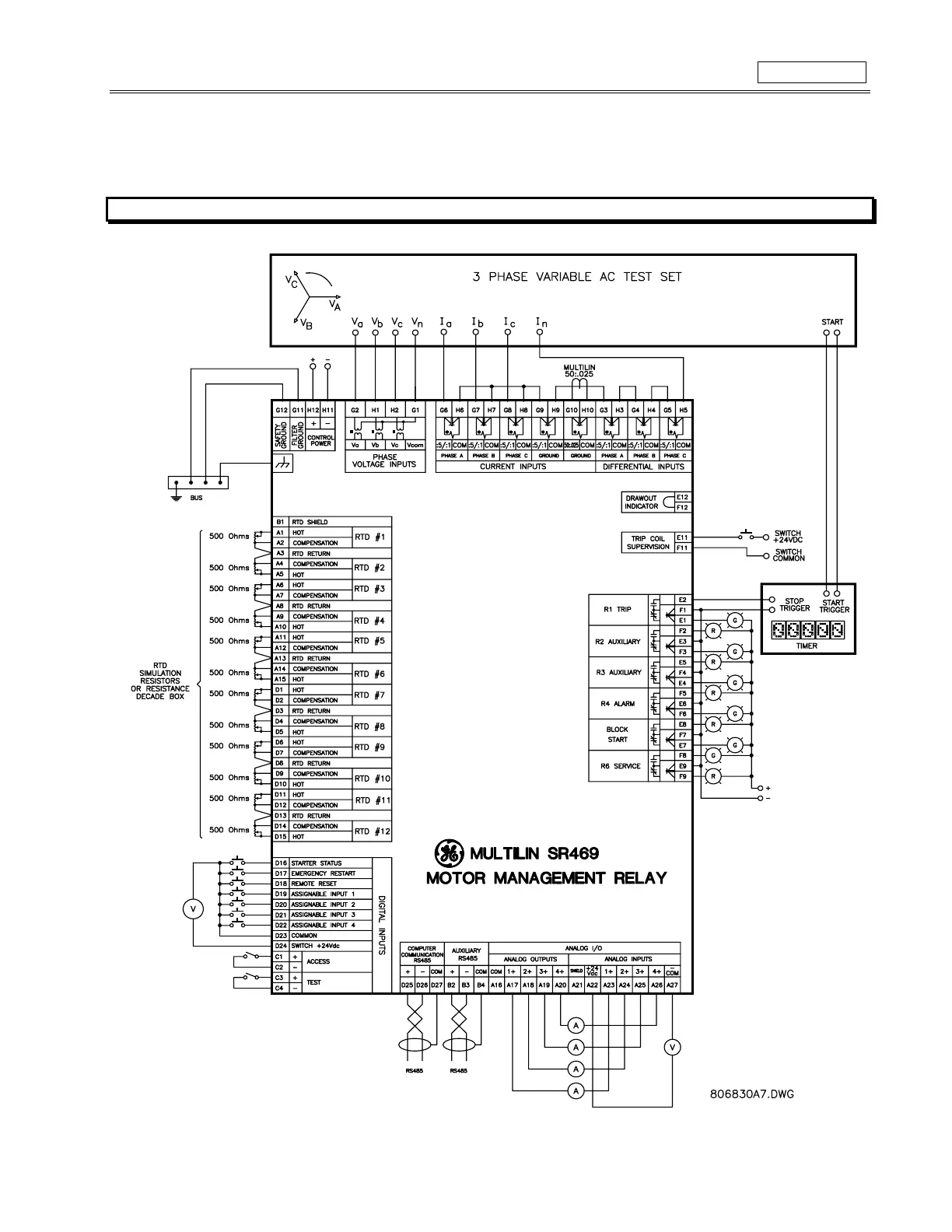

Figure 7-1 SECONDARY INJECTION TEST SETUP
