Multilin SR469 - 4.11 S10 POWER ELEMENTS

S10 POWER ELEMENTS 4. SETPOINT PROGRAMMING
4-58
4.11.1 POWER MEASUREMENT CONVENTIONS
By convention, an induction motor consumes Watts and vars. This condition is displayed on the SR469 as +Watts and +vars. A syn-
chronous motor can consume Watts and vars or consume Watts and generate vars. These conditions are displayed on the SR469 as
+Watts, +vars, and +Watts, -vars respectively. (see Figure 4-23).

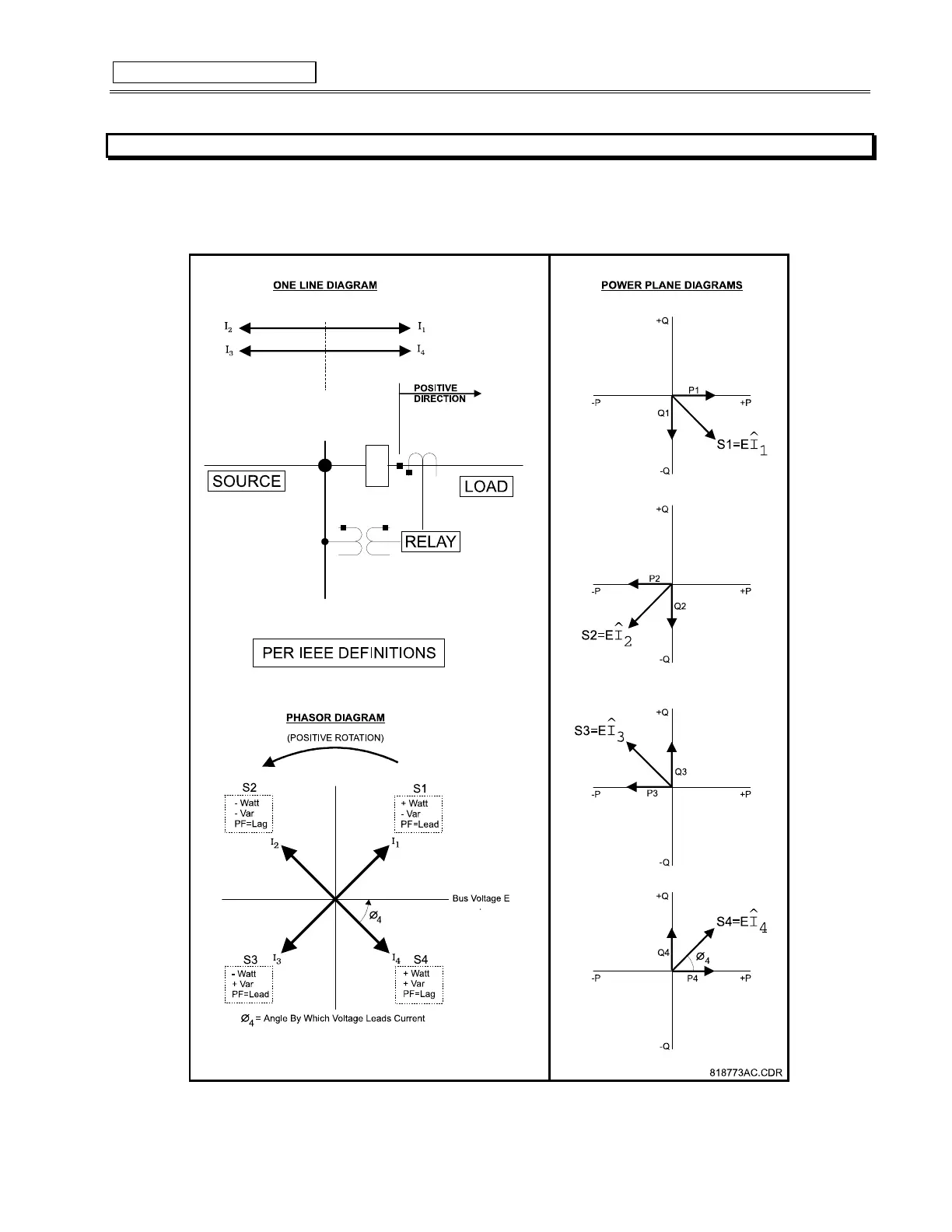

Figure 4-23 POWER MEASUREMENT CONVENTIONS
