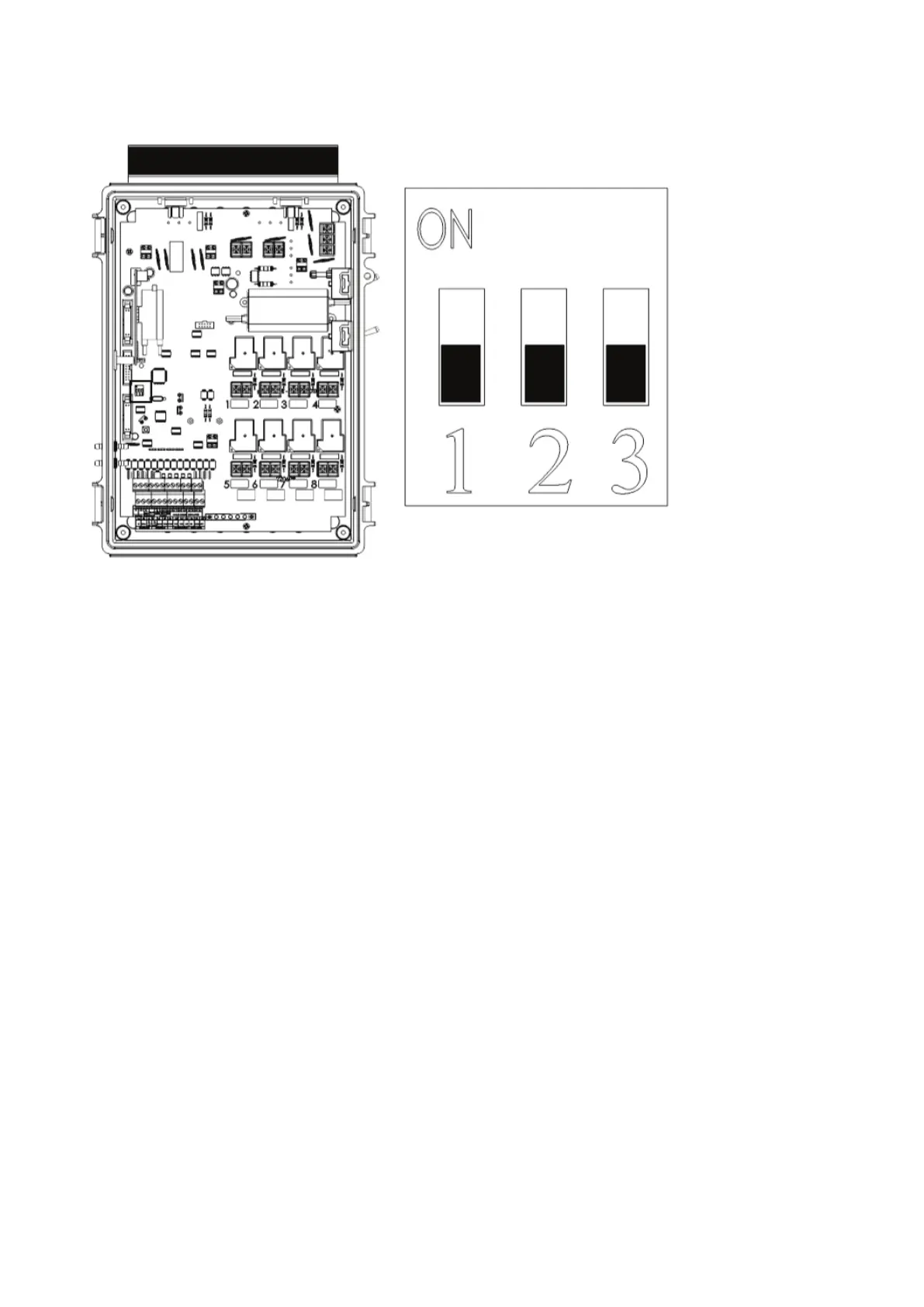

Figure 6: Element Extension Dipswitches
The Element and Element Extension units each have dip switches that define the unit address.
•
All Element dipswitches must be off (down).
•
Define each Extension units by setting one dipswitch (1, 2, or 3) to ON.
•
Each Extension unit MUST have a unique address.
5.2.3 E
LEMENT TO
R
ELAYS
•
Relay Wiring
•
Configuring the Relays
