Munters Element - Configuring the Analog Output Devices

© Munters AB, 2018 26
Figure 11 key
1 Element low voltage ports 4 Variable fan device
2 Digital sensors (Two devices can be wired to
one COM port)
5 Fans
3 Variable heat device
Figure 12 key
1 Element low voltage ports
2 Water meter
3 Auxiliary alarms
NOTE Figure 11 and Figure 12 are examples. Actual installations can differ.
5.2.4.2 Configuring the Analog Output Devices


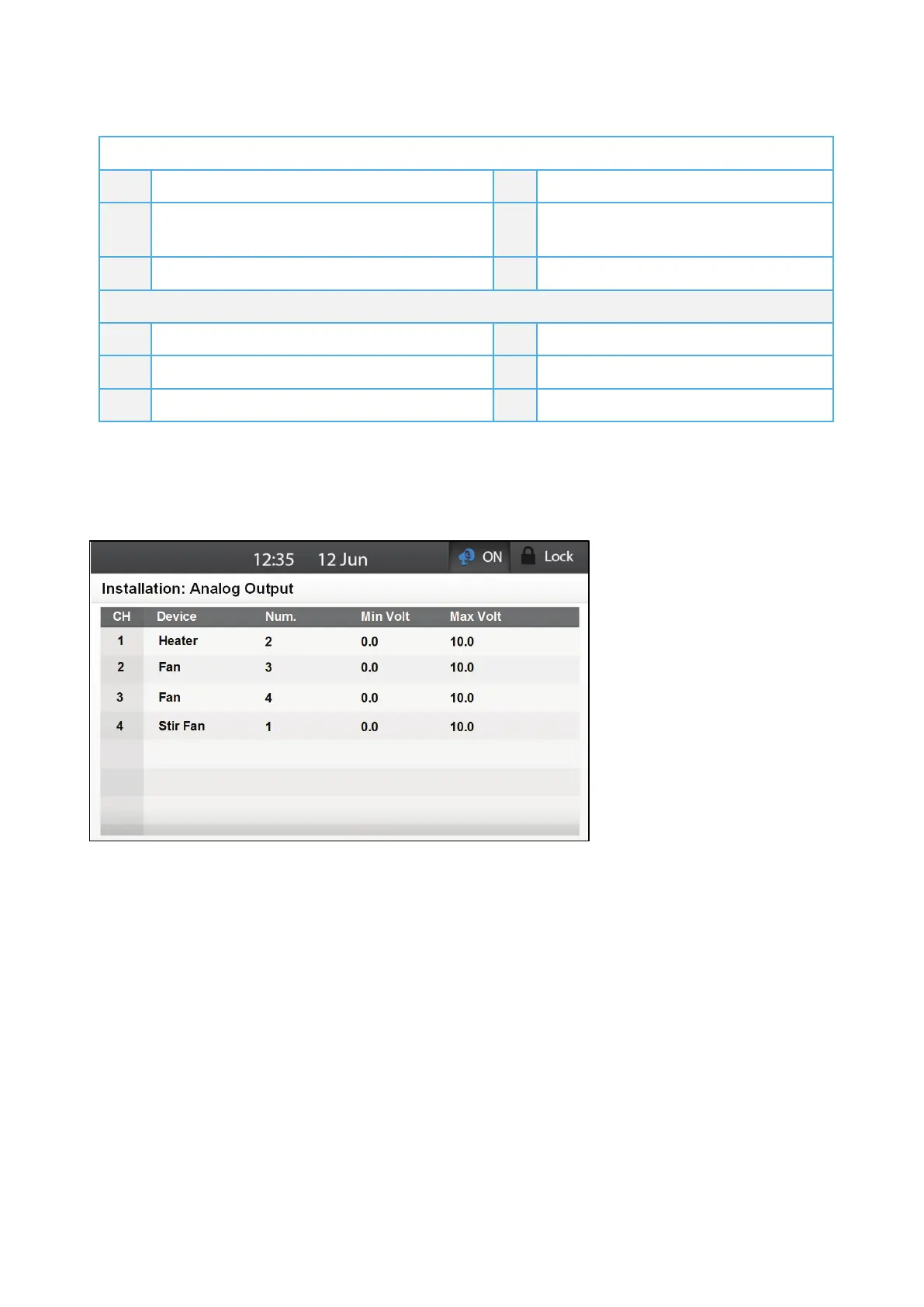

Wire the analog output devices to the Element as shown in Figure 11.
1. Go to System > Installation > Analog Out.
2. Scroll to each analog output.
3. From the drop down list, select the device wired to that relay.
o
Element automatically assigns the device a number, according to the device type. The
number of devices supports varies according to the device type.
 Heater: 6
 Fan: 8
 Stir Fan:1
o
You can edit the number, but any assigned number must be different from an existing
number of that device type (for example, you cannot assign two relays to be Heater
#2).
o
Similar relay, analog output, and TRIAC devices must have different numbers.
o
If no relay is available (for example, if you try to define three relays as curtains), an
error message appears.
